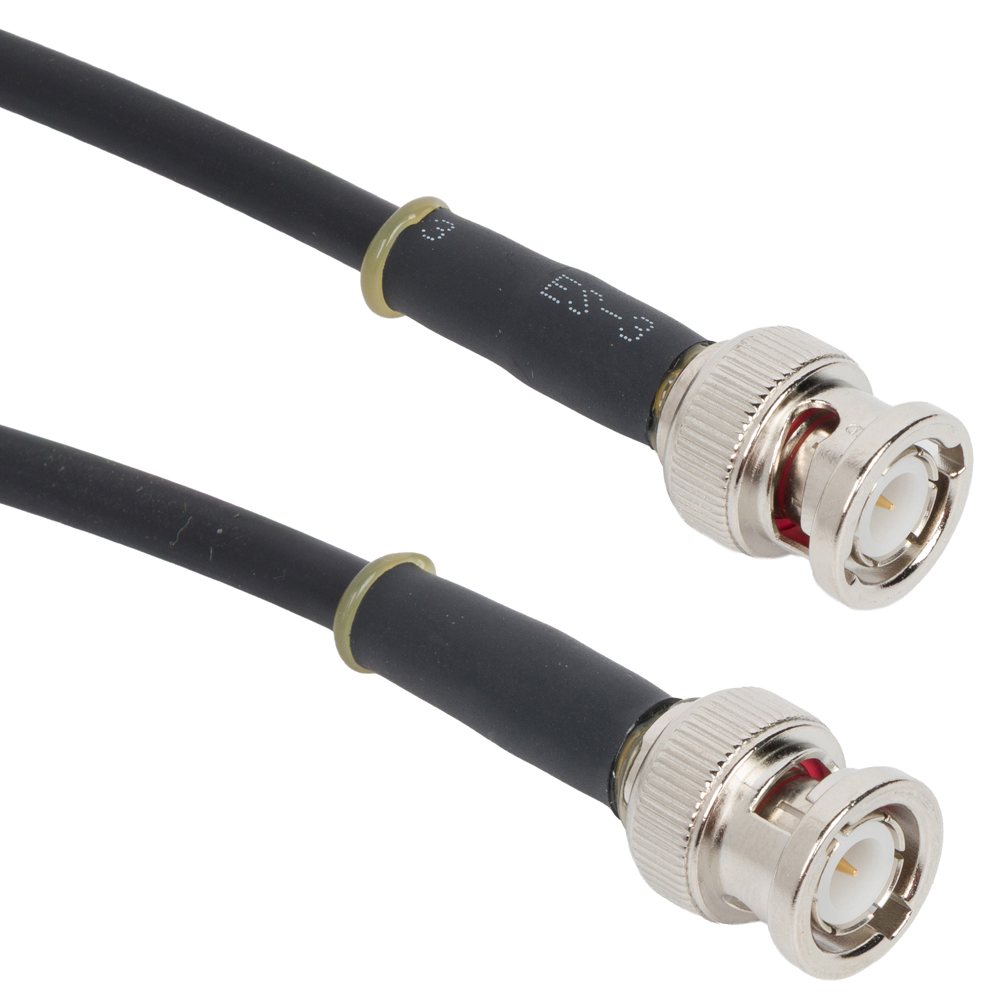

安费诺射频（Amphenol RF）很高兴推出基于 RG-58 电缆的高柔性线缆组件。这些组件提供多种串联配置，包括 BNC 至 BNC、TNC 至 TNC 以及 N 型至 N 型。耐用的连接器接口确保在苛刻的应用环境中保持稳定的机械完整性。这些组件非常适合自动化、通信系统和射频实验室环境。
高柔性 RG-58 电缆采用细丝绞合铜芯，并配有镀锡铜编织屏蔽层。这些 50 欧姆电缆组件在高达 3 GHz 的频率下提供可靠的电气性能，专为需要小弯曲半径和反复电缆移动的应用而设计。 该电缆在弯曲时仍能保持稳定的电气性能，使这些组件非常适合动态布线，并能满足广泛的集成需求。标准长度范围为 12 英寸至 3 米。
这些电缆组件加入了不断扩大的产品组合，该系列专为支持持续运动的先进应用而设计。
查看全部：RG-58 电缆组件
高柔性 RG-58 电缆采用细丝绞合铜芯，并配有镀锡铜编织屏蔽层。这些 50 欧姆电缆组件在高达 3 GHz 的频率下提供可靠的电气性能，专为需要小弯曲半径和反复电缆移动的应用而设计。 该电缆在弯曲时仍能保持稳定的电气性能，使这些组件非常适合动态布线，并能满足广泛的集成需求。标准长度范围为 12 英寸至 3 米。
这些电缆组件加入了不断扩大的产品组合，该系列专为支持持续运动的先进应用而设计。
查看全部：RG-58 电缆组件
