利用无焊 2.92 mm 连接器开发高频 PCB 应用

Amphenol RF 很高兴将 2.92 mm 连接器接口引入其强大的射频互连产品组合。该系列连接器具有低驻波比、出色的回波和插入损耗以及高功率处理能力。

Amphenol RF 很高兴在我们广泛而全面的适配器产品组合中推出新的高性能 2.4 毫米插头或插孔至 2.92 毫米插孔适配器。

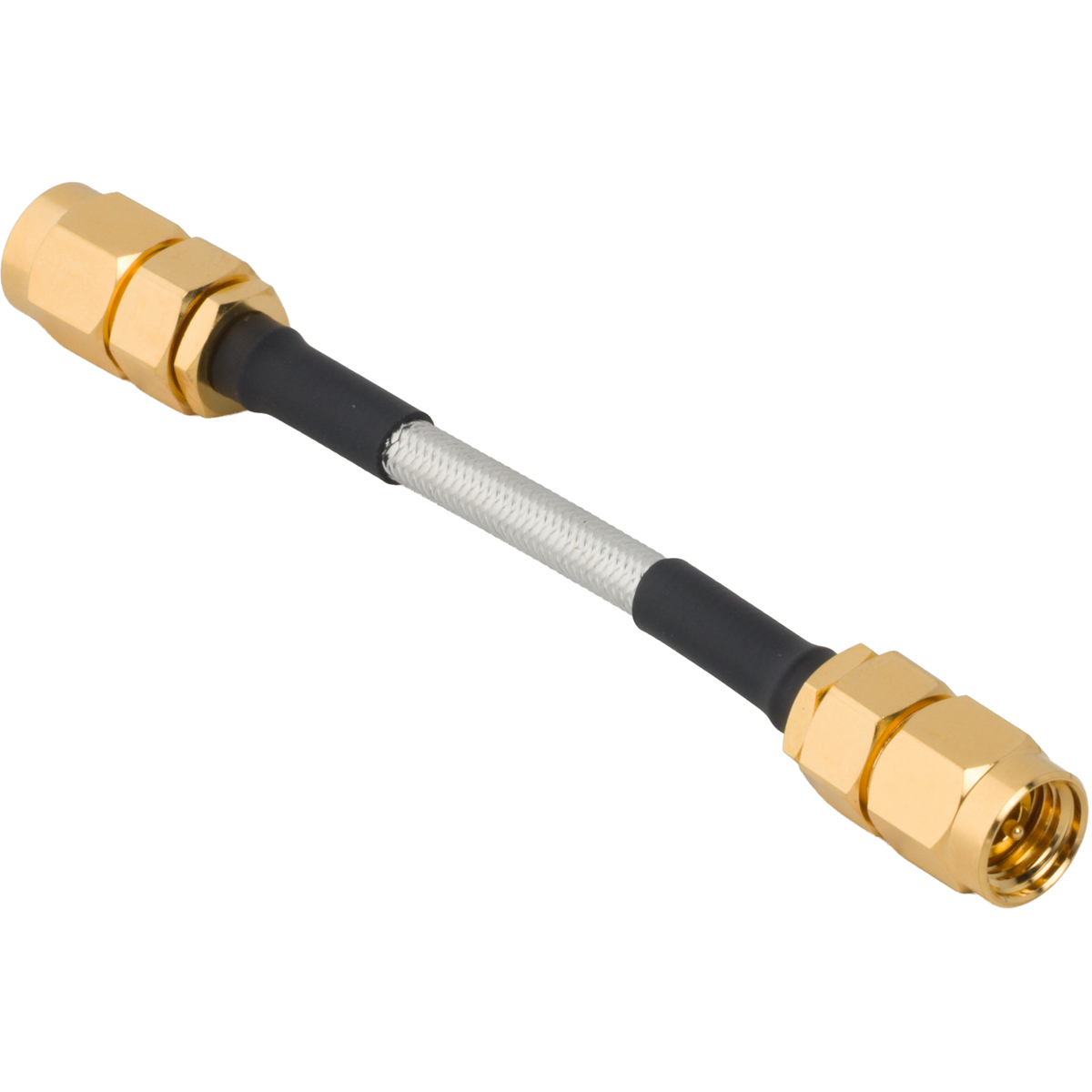

Amphenol RF 很高兴推出更多的预配置 2.92 mm 电缆组件配置，这些配置具有 2.92 mm 连接器，并可选择在另一端连接 SMP 或 SMPM 连接器。

Amphenol RF 很高兴为您提供预配置的 2.92 mm 电缆组件，该组件采用 0.85" 柔性保形电缆设计。

安费诺射频公司欣然推出2.92毫米至SMA精密适配器，该产品现已加入我们专为测试应用设计的坚固型同轴适配器系列。

安费诺射频推出专为0.141英寸柔性电缆设计的2.92毫米连接器，可为精密测试与测量应用提供高达40 GHz的性能表现。

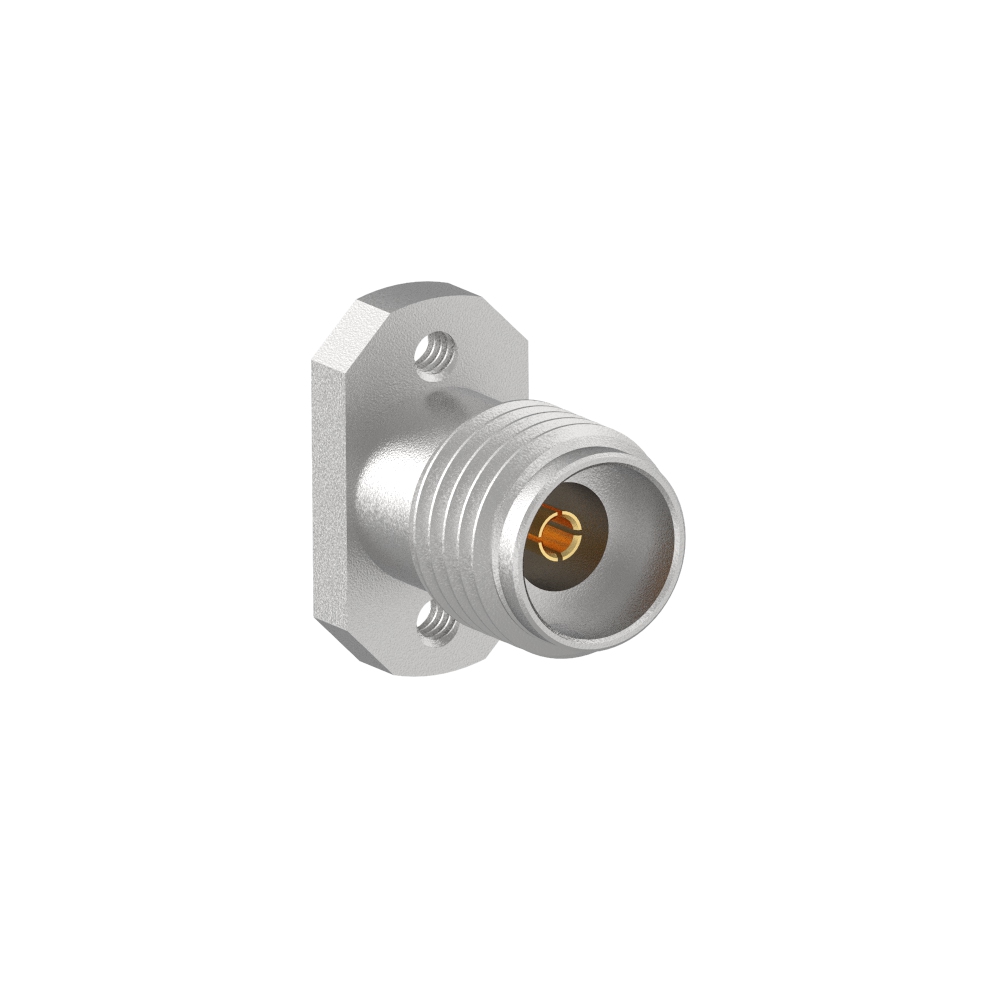

安费诺射频公司推出适用于带状线和微带 PCB 设计的无焊 2.92 mm 连接器，扩大了其精密互连产品组合，简化了安装，性能可靠，频率可达 40 GHz。

The datasheet provides an overview of Amphenol RF’s 2.92 mm adapters. These precision adapters operate up to 40 GHz and feature a rugged, threaded design for reliable performance. They are used in testing, communications, aerospace, and satellite applications and are available in 2.92 mm to 2.4 mm and 2.92 mm to SMA configurations.

Amphenol RF's 2.92 mm connector series is designed for high-frequency applications up to 40 GHz, offering low VSWR, excellent return and insertion loss, and rugged construction for repeatability. These connectors, compatible with SMA and 3.5 mm interfaces, are ideal for optical testing, lab and bench testing, military, SATCOM, microwave, and quantum computing applications, meeting the MIL-STD-348 standard.

Amphenol RF New 2.92 mm Cable Assemblies datasheet with features, benefits, applications, and ordering information.

The Amphenol RF Solderless 2.92 mm Connector Series is designed to provide a reliable, high-performance PCB interface for microwave and millimeter-wave applications up to 40 GHz. Available in both microstrip and stripline configurations, these connectors eliminate solder joint variability through an innovative threaded attachment mechanism that ensures consistent connector-to-PCB contact and improved measurement accuracy. The solderless design simplifies installation, removal, and reuse, making these connectors ideal for RF prototyping, validation testing, and iterative development environments. Featuring a 50 Ω impedance, low VSWR performance, and compliance with MIL-STD-348 interface standards, the series is well suited for aerospace and defense systems, 5G infrastructure, high-frequency PCB development, and advanced laboratory research applications.

Discover the latest SMA to 2.92 mm RF adapters from Amphenol RF, engineered to deliver reliable high-frequency performance for demanding RF and microwave applications. In this video, we introduce our new precision adapter solutions and review their key specifications, including frequency performance, durable threaded interfaces, and design features that support signal integrity in high-frequency systems. These SMA to 2.92 mm adapters provide flexible connectivity between popular RF interfaces and are ideal for applications requiring consistent performance and repeatable mating. Key Features • Precision SMA to 2.92 mm interface design • Reliable performance for high-frequency applications • Secure threaded coupling mechanism • Durable construction for repeated mating cycles Typical Applications • Test and measurement equipment • RF and microwave systems • Aerospace and defense electronics • Communications infrastructure Learn how these adapters can help engineers simplify RF system integration while maintaining signal performance.
