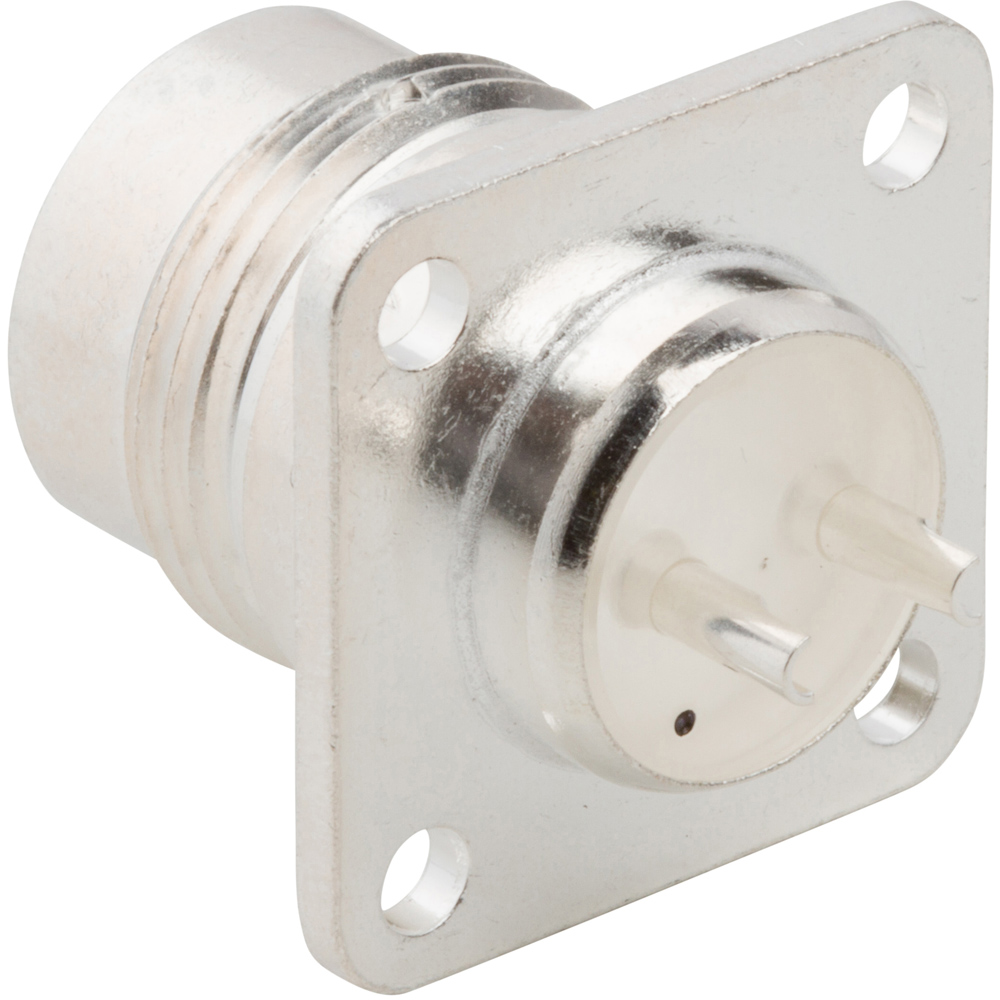

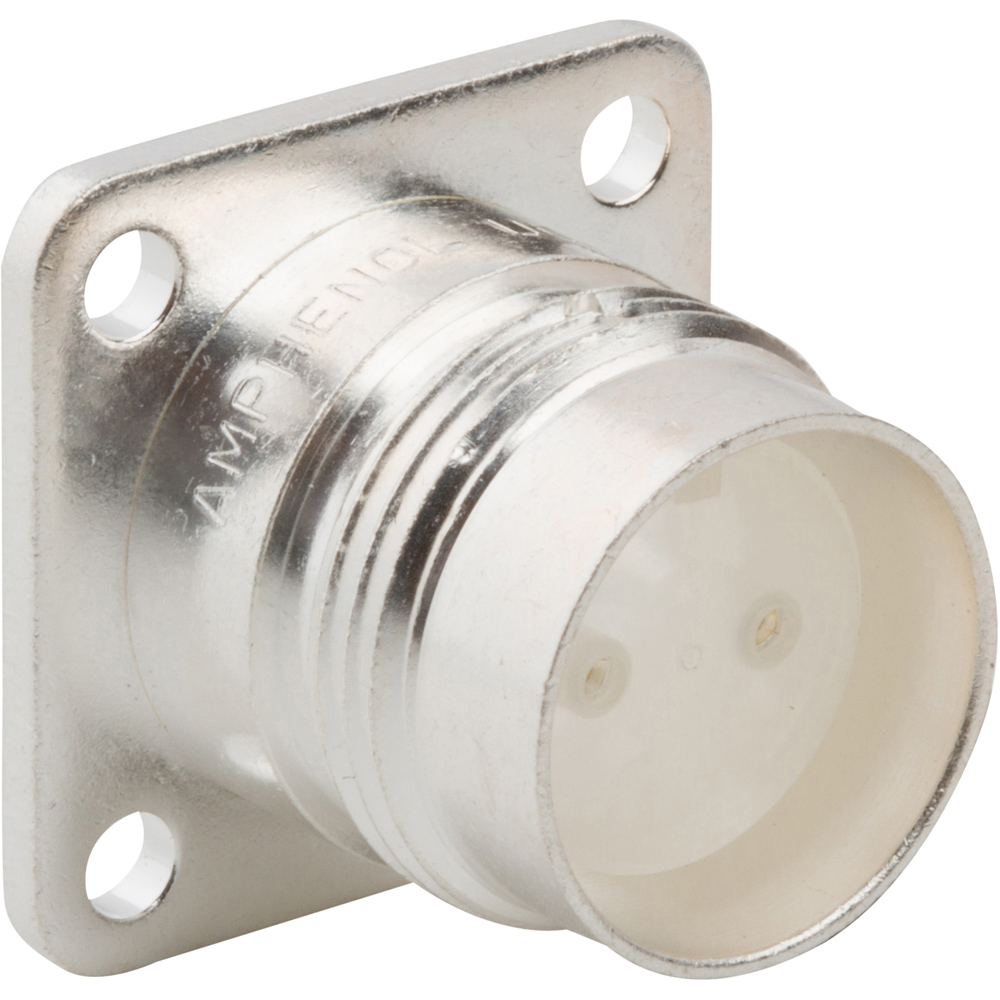

UG-422/U Twinax Panel Mount Jack 4-Hole Flange Solder Cup Non-Constant Impedance
000-6225
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Silver
|
|
| Body Material |
Brass
|
|
| Contact Finish |
Silver
|
|
| Contact Material |
Beryllium Copper
|
|
| Contact Termination |
Solder
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
0.2
|
|
| Gender |
Jack
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
Non-Constant
|
|
| Insulator Material |
Copolymer of Styrene
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Standard
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-55
|
|
| Termination Style |
Solder Cup
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
34.019
|
|
| USMCA Compliant |
Not USMCA Compliant
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
| 000-6225 PDF Customer Drawing (Size: 185.8 KB) | pdf |
5/28/2021 |
|
000-6225 IGS 3D Model
(Size: 959.3 KB)
|
igs |
11/11/2025 |
Product Compliance
| Document Title | Status | |
|---|---|---|
| RoHS | Compliant with Exemption 6C | |
| California Prop 65 |
