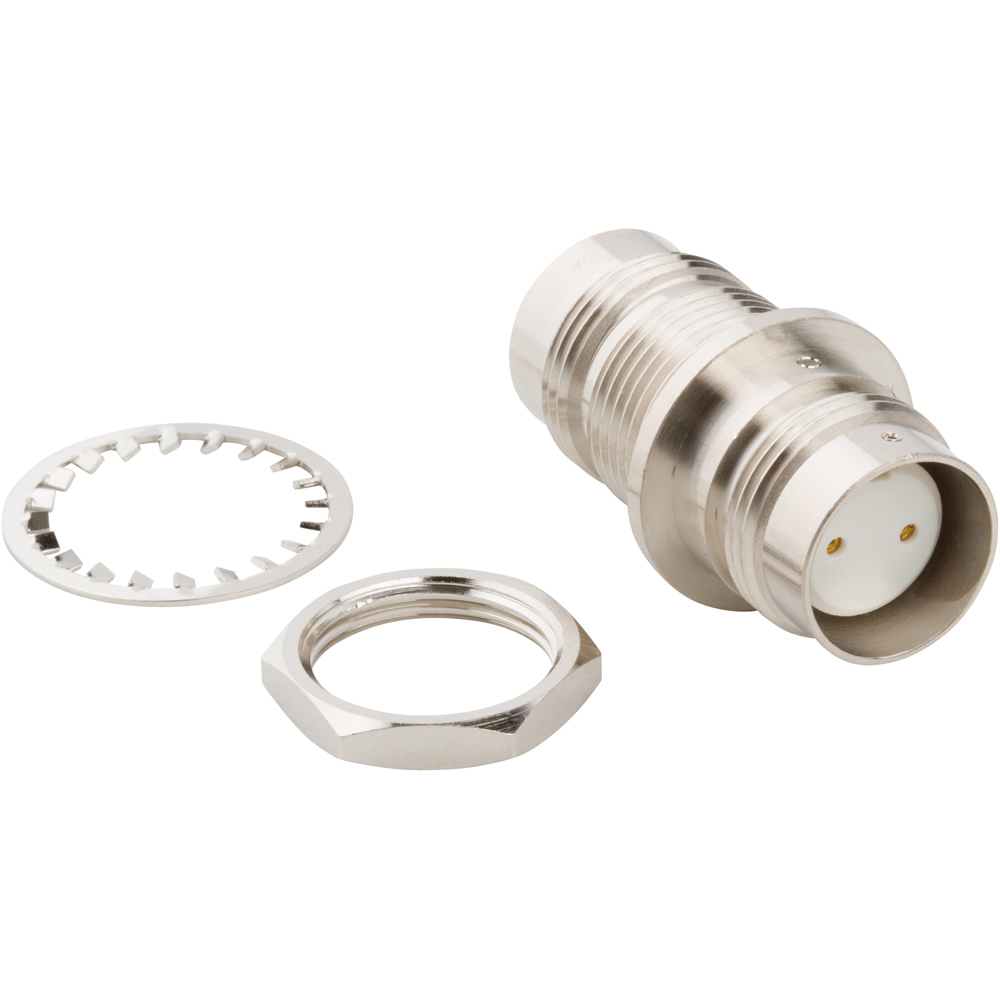

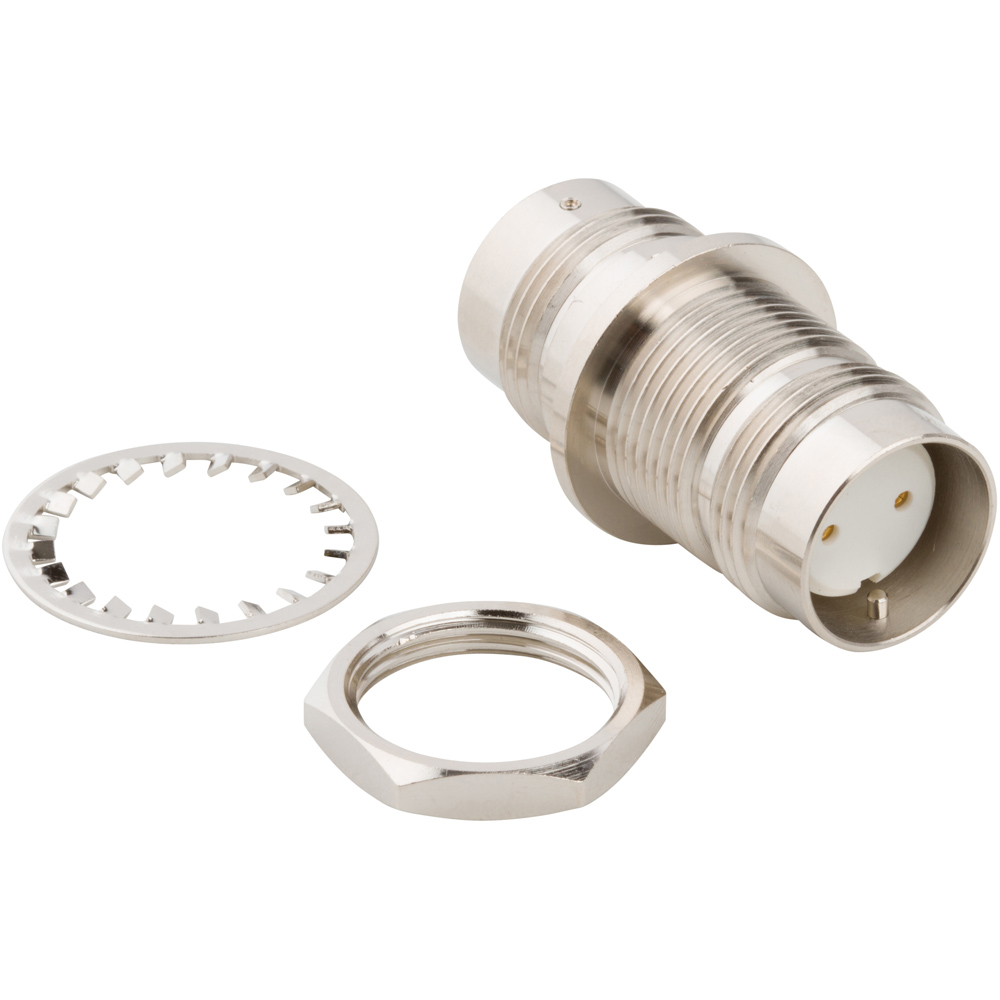

Twinax Jack to Twinax Jack Adapter Non-Constant Impedance Straight Bulkhead
000-7925-RFX
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Adapter Configuration |
Twinax Jack to Twinax Jack
|
|
| Adapter Type |
In-Series
|
|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Phosphor Bronze
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
0.5
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
Non-Constant
|
|
| Insulator Material |
PBT
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Bulkhead
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
|
000-7925-RFX STP 3D Model
(Size: 2.8 MB)
|
stp |
11/11/2025 |
