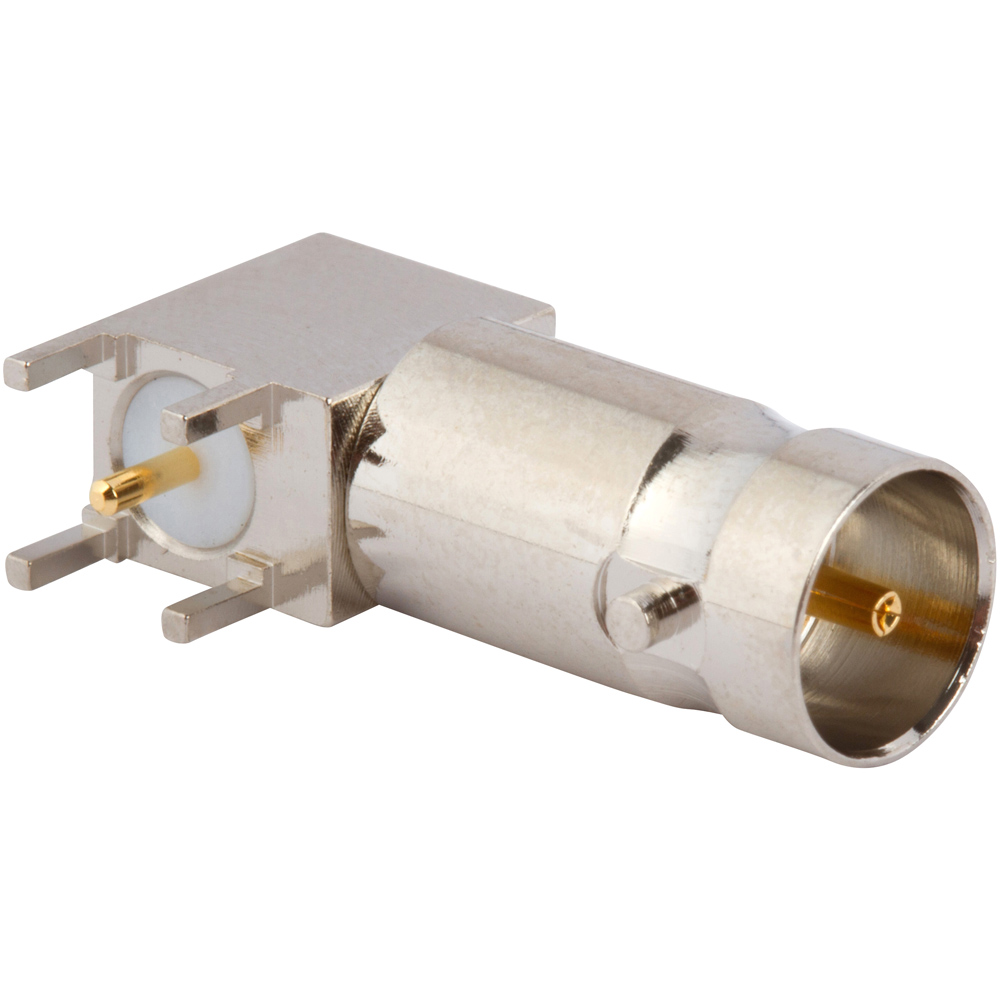

Mini-BNC Right Angle PCB Jack Through Hole 75 Ohm

Mini-BNC Right Angle PCB Jack Through Hole 75 Ohm

Mini-BNC Right Angle PCB Jack Through Hole 75 Ohm
031-70265
Part Status: Active
Customer Drawing 3D Model
Product Specifications All Related Documents Product Compliance Related Resources Contact Us
Product Specifications

Product Specifications

Attributes Details See Similar
Select the attributes below to view similar products
Body Finish
Nickel
Body Material
Brass
Contact Finish
Gold
Contact Material
Beryllium Copper
Contact Termination
Solder
Country of Origin
CN
Coupling Mechanism
Bayonet
ECCN
EAR99
Frequency (Max GHz)
1
Gender
Jack
HTS Code
8536.69.4010
Impedance (Ohms)
75
Insulator Material
PTFE
IP Rating
Not Rated
Isolated
No
Low PIM
No
Mating Cycles (Min)
500
Mil Qualified
Not Mil Qualified
Non Magnetic
Contains Magnetic Materials
Orientation
Right Angle
Panel Mounting Feature
Not Applicable
PFAS
Contains PFAS
Ports
1 (Single Port)
Size Category
Miniature
Temp (Max Degrees Celsius)
165
Temp (Min Degrees Celsius)
-65
Termination Style
PCB - Through Hole
See Similar
All Related Documents

All Related Documents

Locked items require an Amphenol RF account
Log in /Register
Document Title Type Publish Date
031-70265 PDF Customer Drawing (Size: 37.8 KB)
pdf
 5/28/2021
031-70265 IGS 3D Model (Size: 348.3 KB)
igs
 11/11/2025
