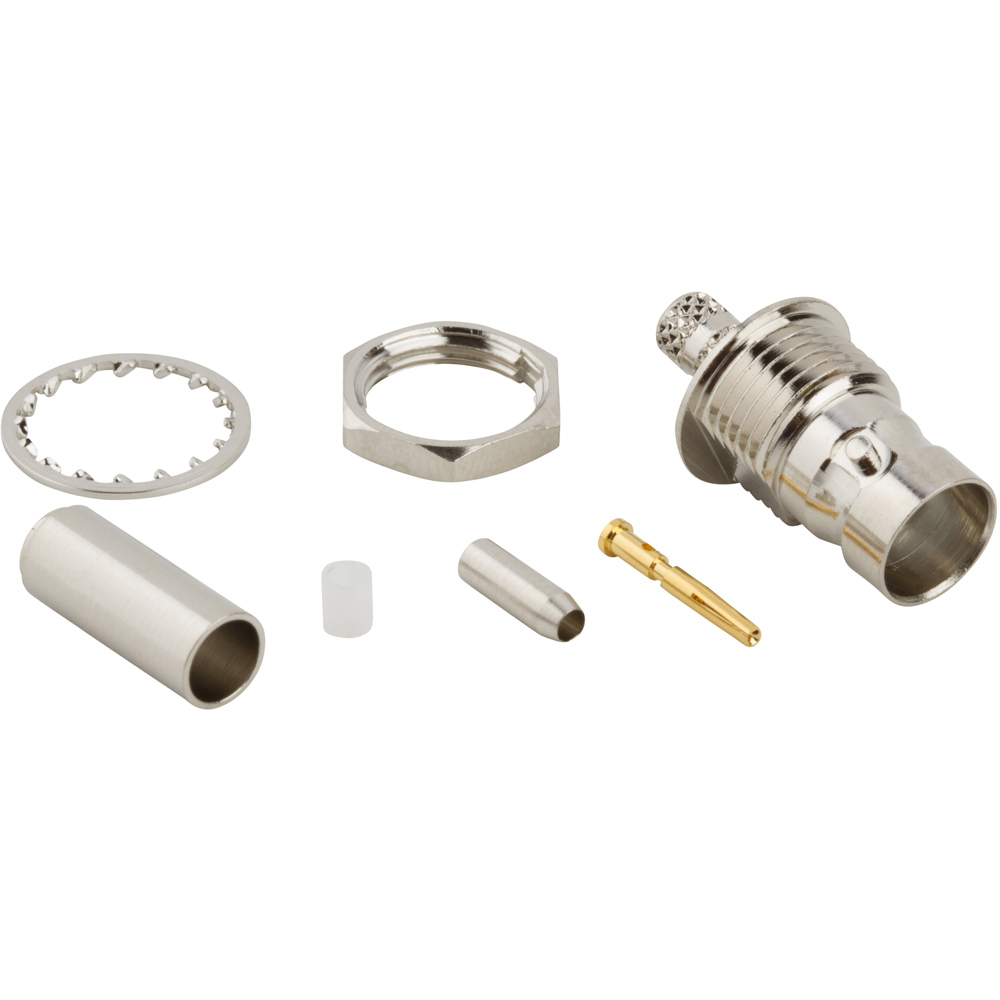

Mini-BNC Straight Crimp Jack RG-179 Belden 179DT Bulkhead Rear Mount 75 Ohm

Mini-BNC Straight Crimp Jack RG-179 Belden 179DT Bulkhead Rear Mount 75 Ohm

Mini-BNC Straight Crimp Jack RG-179 Belden 179DT Bulkhead Rear Mount 75 Ohm
031-70332
Part Status: Active
Customer Drawing 3D Model
Product Specifications All Related Documents Related Resources Contact Us
Product Specifications

Product Specifications

Attributes Details See Similar
Select the attributes below to view similar products
Body Finish
Nickel
Body Material
Brass
Cable Group
S
Cable Type (Terminates To)
RG-161, RG-179, RG-187, Belden 179DT, Belden 1520A, Belden 1521A, Belden 1522A, Belden 9221
Contact Finish
Gold
Contact Material
Beryllium Copper
Contact Termination
Solder
Country of Origin
CN
Coupling Mechanism
Bayonet
ECCN
EAR99
Frequency (Max GHz)
1
Gender
Jack
HTS Code
8536.69.4010
Impedance (Ohms)
75
Insulator Material
PTFE
IP Rating
Not Rated
Isolated
No
Low PIM
No
Mating Cycles (Min)
500
Mil Qualified
Not Mil Qualified
Non Magnetic
Contains Magnetic Materials
Orientation
Straight
Panel Mounting Feature
Bulkhead - Rear Mount
PFAS
Contains PFAS
Ports
1 (Single Port)
Size Category
Miniature
Temp (Max Degrees Celsius)
165
Temp (Min Degrees Celsius)
-65
Termination Style
Cable - Crimp
See Similar
All Related Documents

All Related Documents

Locked items require an Amphenol RF account
Log in /Register
Document Title Type Publish Date
031-70332 PDF Customer Drawing (Size: 42.4 KB)
pdf
 5/28/2021
031-70332 IGS 3D Model (Size: 2.1 MB)
igs
 11/11/2025

Related Resources

The "High-Density Broadcast Solutions" document from Amphenol RF highlights their range of RF interconnects designed for broadcast connectivity, including BNC, Mini-BNC, 1.0/2.3 DIN, and HD-BNC connectors. These connectors offer various impedances and frequency ranges, with HD-BNC providing the highest density at an 8mm pitch and supporting data rates up to 12 Gb/s. Applications include high-definition transmission, video routing, mobile broadcast equipment, and digital signage, ensuring reliable performance and reduced equipment size without compromising signal integrity​​.
Marketing Collateral
High Density Broadcast Solutions
The "High-Density Broadcast Solutions" document from Amphenol RF highlights their range of RF interconnects designed for broadcast connectivity, including BNC, Mini-BNC, 1.0/2.3 DIN, and HD-BNC connectors. These connectors offer various impedances and frequency ranges, with HD-BNC providing the highest density at an 8mm pitch and supporting data rates up to 12 Gb/s. Applications include high-definition transmission, video routing, mobile broadcast equipment, and digital signage, ensuring reliable performance and reduced equipment size without compromising signal integrity​​.
