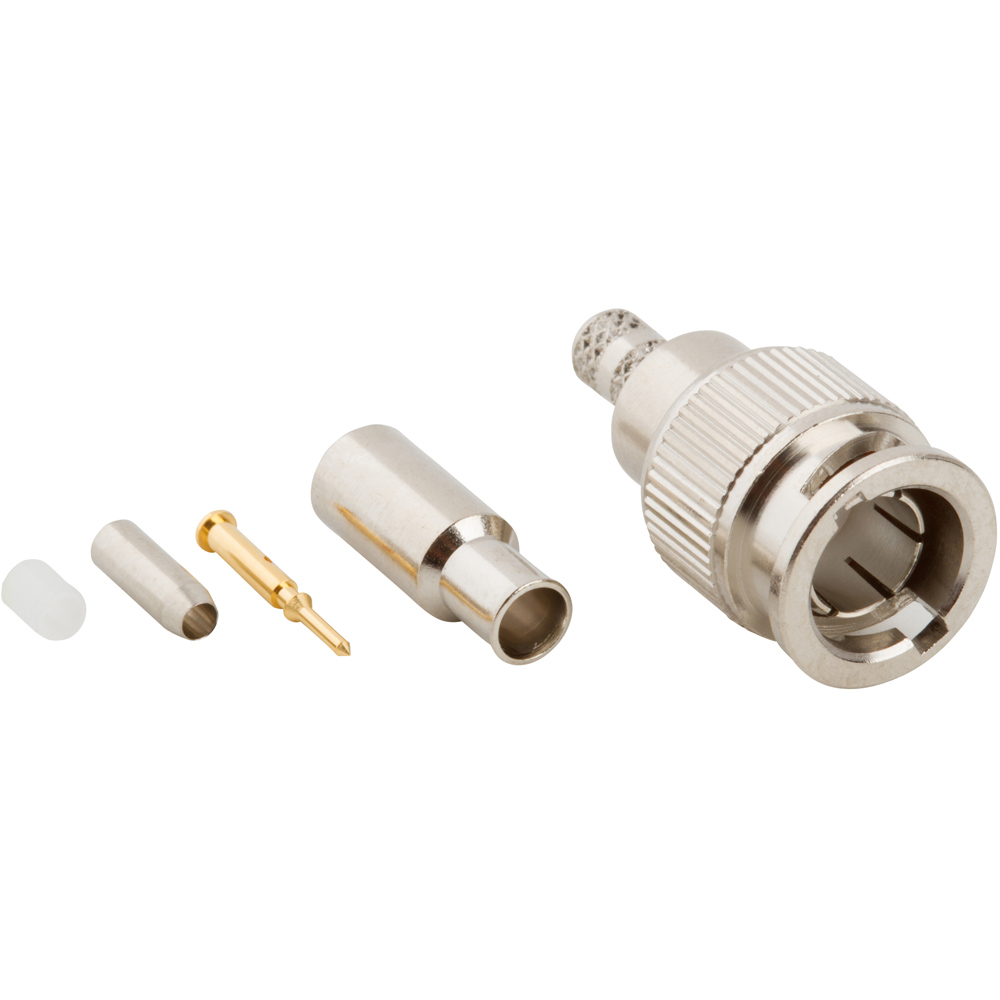

Mini-BNC Straight Crimp Plug RG-174 RG-188 RG-316 Times LMR-100A 75 Ohm

Mini-BNC Straight Crimp Plug RG-174 RG-188 RG-316 Times LMR-100A 75 Ohm

Mini-BNC Straight Crimp Plug RG-174 RG-188 RG-316 Times LMR-100A 75 Ohm
031-70335
Part Status: Active
Customer Drawing 3D Model
Product Specifications All Related Documents Related Resources Contact Us
Product Specifications

Product Specifications

Attributes Details See Similar
Select the attributes below to view similar products
Body Finish
Nickel
Body Material
Brass
Cable Group
B
Cable Type (Terminates To)
RG-174, RG-188, RG-316, Times LMR-100A, Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Times RG-174LL, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Leoni DACAR 462, Leoni DACAR 462-2
Contact Finish
Gold
Contact Material
Beryllium Copper
Contact Termination
Solder
Country of Origin
VN
Coupling Mechanism
Bayonet
ECCN
EAR99
Frequency (Max GHz)
4
Gender
Plug
HTS Code
8536.69.4010
Impedance (Ohms)
75
Insulator Material
PTFE
IP Rating
Not Rated
Isolated
No
Low PIM
No
Mating Cycles (Min)
500
Mil Qualified
Not Mil Qualified
Non Magnetic
Contains Magnetic Materials
Orientation
Straight
Panel Mounting Feature
Not Applicable
PFAS
Contains PFAS
Ports
1 (Single Port)
Size Category
Miniature
Temp (Max Degrees Celsius)
165
Temp (Min Degrees Celsius)
-65
Termination Style
Cable - Crimp
