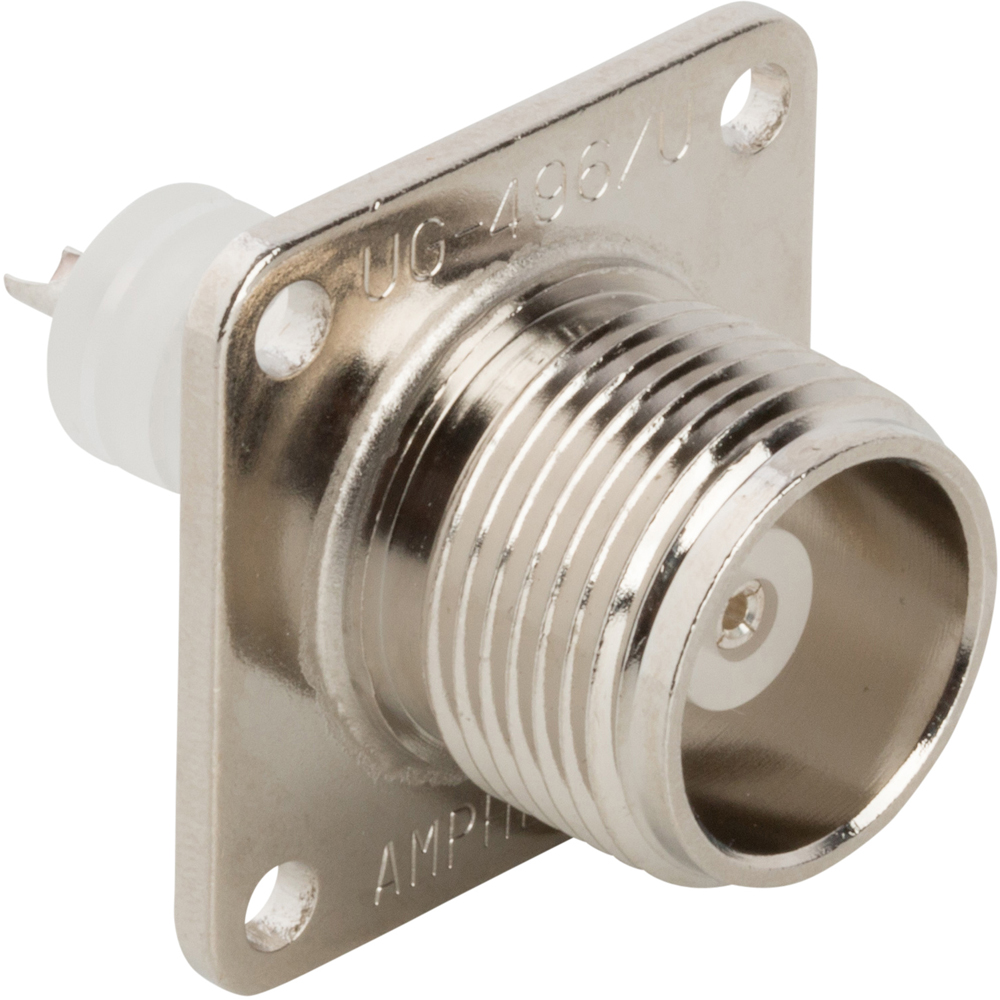

UG-496/U HN-Type Panel Mount Jack 4-Hole Flange Solder Cup 50 Ohm
082-92
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Contact Finish |
Silver
|
|
| Contact Material |
Brass
|
|
| Contact Termination |
Solder
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Extended Dielectric Length |
0.430 Inches (10.92 mm)
|
|
| Frequency (Max GHz) |
4
|
|
| Gender |
Jack
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Standard
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Termination Style |
Solder Cup
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
38.555
|
|
| USMCA Compliant |
Not USMCA Compliant
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
| 082-92 PDF Customer Drawing (Size: 127.4 KB) | pdf |
5/28/2021 |
|
082-92 STP 3D Model
(Size: 448.5 KB)
|
stp |
11/11/2025 |
Product Compliance
| Document Title | Status | |
|---|---|---|
| RoHS | Compliant with Exemption 6C | |
| California Prop 65 |
