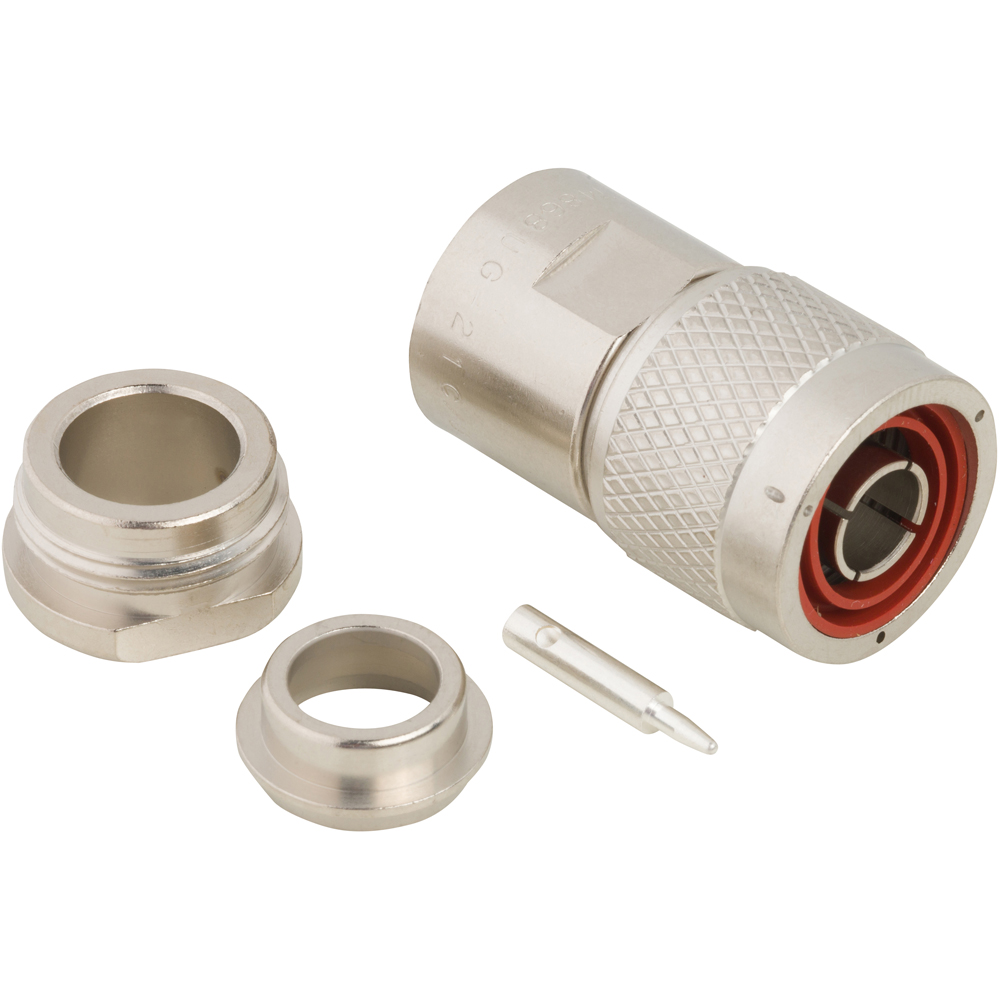

UG-21C/U N-Type Straight Clamp Plug RG-8 RG-213 RG-225 50 Ohm

Amphenol RF is pleased to expand our cable mount N-Type product portfolio with additional IP-rated rear mount bulkhead jack configurations. These 50 ohm RF connectors are a durable option designed with a threaded coupling mechanism.

Amphenol RF is pleased to expand our portfolio of extreme exposure solutions with the addition of new N-Type cable mount connector configurations.

Amphenol RF is pleased to expand our line of black plated connectors with SMA and N-Type configurations designed for low loss LMR cable types.

Amphenol RF expands its line of 18 GHz extended frequency range N Type connectors; ideal for applications that require higher performance specs.

Amphenol Custom Cable (ACC) is proud to announce the expansion of pre-configured cable assemblies available at Digi-Key Electronics.

Amphenol RF is pleased to announce the expansion of our rugged N-Type connector series with several new sealed IP67 options.

Amphenol RF is pleased to announce the expansion of our ruggedized IP-rated N-Type connector series to include an additional rear mount bulkhead jack.

Amphenol RF expands its pre-configured cable assembly portfolio with new MMCX assemblies engineered to provide dependable connectivity for wireless communication modules.

The Amphenol RF 2.2-5 Product Data Sheet highlights the 2.2-5 connector series, designed for high-performance RF applications requiring compact size, low PIM, and superior electrical performance. This connector series is engineered to support high-frequency, low-loss signal transmission, making it ideal for 5G networks, small cells, and distributed antenna systems (DAS). With a rugged, weatherproof design, these connectors ensure reliable performance in harsh environments while maintaining ease of installation through various coupling mechanisms, including threaded, push-pull, and hand-screw options.

Amphenol RF's 18 GHz N-Type connectors extend the frequency range of the traditional N-Type product line to 18 GHz, providing excellent low PIM performance in a durable, medium-sized package. These connectors are ideal for rugged, outdoor applications requiring high power handling and vibration resistance, with applications in microwave, wireless infrastructure, and radar systems.

Amphenol RF introduces a comprehensive line of 4.3/10 low PIM adapters, expanding their low PIM adapter product family. These adapters are designed for space-restricted, high-density, and weight-sensitive applications, offering superior PIM performance and reduced mating torque compared to 7/16 DIN connectors, with in-series and between-series configurations available.

The Field Installable N-Type Connector Cut Sheet presents a high-performance N-Type connector designed for quick and efficient field installation without requiring special tools. Engineered for low-loss, high-frequency applications, this connector ensures secure and reliable RF connections in demanding environments. It features a rugged, weatherproof design, making it ideal for outdoor and industrial use, while its low PIM (Passive Intermodulation) performance supports high-quality signal integrity.

The ATC-PS cable assemblies cutsheet provides info for ATC-PS cable assemblies, outlining their technical specifications, features, and applications. It provides precise information on the design and performance characteristics of these cable assemblies, including impedance, frequency range, insertion loss, and durability. The document highlights the materials used, ensuring reliability and high performance in demanding environments. Additionally, it specifies the industries and applications these cable assemblies are designed for, demonstrating their suitability for various high-frequency and precision connectivity needs.

The "Connectors Optimized for Low Loss Cables" guide by Amphenol RF features redesigned SMA, TNC, and N-Type connectors specifically tailored for Low Loss cables. These connectors, which include straight and right-angle plugs and jacks, provide enhanced shielding, improved grounding, and low signal loss for applications requiring high reliability, such as smart city infrastructure and IoT antenna systems. They support frequencies up to 12.4 GHz for SMA and 6 GHz for TNC and N-Type connectors, ensuring consistent electrical performance and quick, secure assembly with standard hex crimp tooling​​.

The document "Passive Intermodulation Distortion in Connectors, Cable and Cable Assemblies" by David Weinstein of Amphenol Corporation discusses the causes, impacts, and measurement of Passive Intermodulation Distortion (PIM) in RF components. It explains how PIM is generated by non-linear mixing in passive devices like connectors and cables, causing unwanted signals that can interfere with communication systems. The paper outlines design guidelines to minimize PIM, including contact design, material choices and cleanliness, and describes testing methods to ensure low PIM performance​​.

Amphenol RF's N-Type Connector Series features durable, weatherproof 50 ohm connectors that offer excellent RF performance from DC to 18 GHz. These connectors are ideal for applications requiring vibration resistance, such as antennas, base stations, radar systems, and WLAN, and are available in both PCB and cable-mount configurations to accommodate a wide variety of coaxial cables.

Amphenol RF's Nex10 Adapter Series features ruggedized, compact 50 ohm adapters offering reliable low PIM performance up to 6 GHz. These lightweight, threaded adapters are ideal for high-density applications such as antennas, small cells, distributed antenna systems (DAS), MIMO, and 5G/LTE, designed to reduce interference and maintain network quality.

The Amphenol RF MCX Cable Assemblies Data Sheet highlights between-series board-to-panel cable solutions designed for wireless communication modules. These assemblies combine compact MCX interfaces with rugged, sealed bulkhead connectors to enable reliable RF connectivity in space-constrained and environmentally exposed applications.

The Amphenol RF MMCX cable assemblies datasheet outlines pre-configured 50-ohm RF cable solutions using flexible RG-174 coax for reliable connections in wireless communication modules. It highlights available connector configurations, electrical performance characteristics, and suitability for applications such as IoT, GPS, Wi-Fi, and other compact RF systems.

View full article: https://www.allaboutcircuits.com/new-industry-products/amphenol-rf-18ghz-n-series-tech-specs Amphenol RF offers N-Type connectors with an extended frequency range of 18GHz and very low passive intermodulation. For more information, as well as all the latest All About Circuits projects and articles, visit the official website at http://www.allaboutcircuits.com/ Check out TTI, INC's profile on All About Circuits and see more technical articles they created at https://www.allaboutcircuits.com/author/tti-inc TTI, Inc's website: https://www.ttiinc.com/content/ttiinc/en.html Don't have AAC account yet? Register here! It's free and always will be. https://forum.allaboutcircuits.com/register Subscribe on YouTube: https://www.youtube.com/c/AllAboutCircuitsVideo Like us on Facebook: https://www.facebook.com/allaboutcircuits Follow us on Twitter: https://twitter.com/AllAboutCircuit Follow us on LinkedIn: https://www.linkedin.com/company/allaboutcircuits

View full article: https://www.allaboutcircuits.com/new-industry-products/amphenol-rf-connectors-for-low-loss-cables-tech-specs/ Amphenol RF offers SMA, TNC, and N-Type connectors that have been redesigned and optimized for use with low loss cabling. They offer improved grounding, enhanced shielding, and low return loss from DC to 6GHz. The connectors are available in straight jack, bulkhead jack, straight plug, and right-angle plug configurations, with options for 195, 240, and 400 series low loss cable. For more information, as well as all the latest All About Circuits projects and articles, visit the official website at http://www.allaboutcircuits.com/ Check out TTI, INC's profile on All About Circuits and see more technical articles they created at https://www.allaboutcircuits.com/author/tti-inc TTI, Inc's website: https://www.ttiinc.com/content/ttiinc/en.html Don't have AAC account yet? Register here! It's free and always will be. https://forum.allaboutcircuits.com/register Subscribe on YouTube: https://www.youtube.com/c/AllAboutCircuitsVideo Like us on Facebook: https://www.facebook.com/allaboutcircuits Follow us on Twitter: https://twitter.com/AllAboutCircuit Follow us on LinkedIn: https://www.linkedin.com/company/allaboutcircuits

N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector. N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical. Learn more: https://www.tti.com/content/ttiinc/en/manufacturers/a-b/amphenol/products/amphenol-rf-n-type-connector-series.html For more insights on electronics, tech, and more, follow us! Facebook: https://www.facebook.com/ttiinc Twitter: https://www.twitter.com/ttiinc LinkedIn: https://www.linkedin.com/company/tti-inc-/ Instagram: https://www.instagram.com/ttiinc
