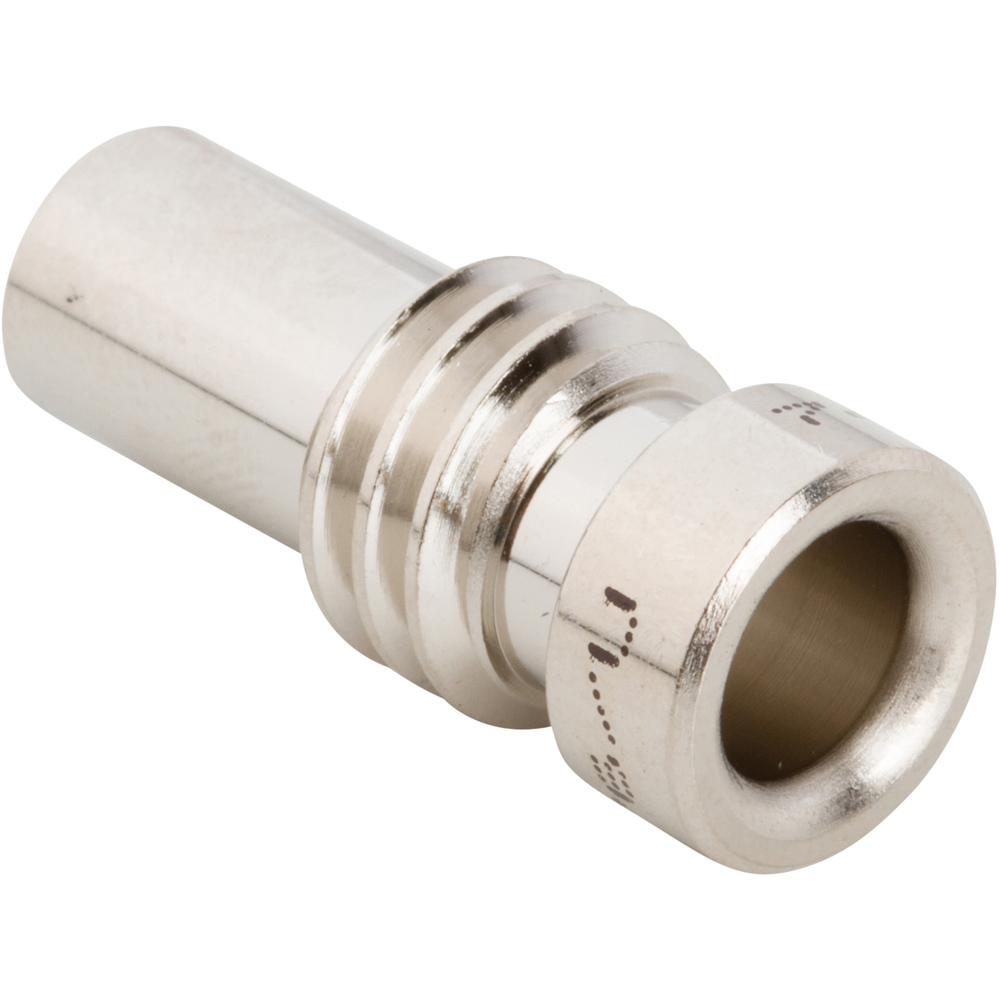

UG-176/U UHF Reducing Adapter RG-59
083-168
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Assembly Tool |
CTL-8
|
|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Cable Group |
D
|
|
| Cable Type (Terminates To) |
RG-59, RG-62, Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S
|
|
| Contact Finish |
Not Applicable
|
|
| Contact Material |
Not Applicable
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
0.3
|
|
| Gender |
Plug
|
|
| HTS Code |
8538.90.8180
|
|
| Impedance (Ohms) |
Non-Constant
|
|
| Insulator Material |
Not Applicable
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Size Category |
Standard
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Termination Style |
Cable - Crimp
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
6.803
|
|
| USMCA Compliant |
Not USMCA Compliant
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
|
083-168 STP 3D Model
(Size: 127.1 KB)
|
stp |
11/11/2025 |
| 083-168 PDF Customer Drawing (Size: 108.2 KB) | pdf |
5/28/2021 |
