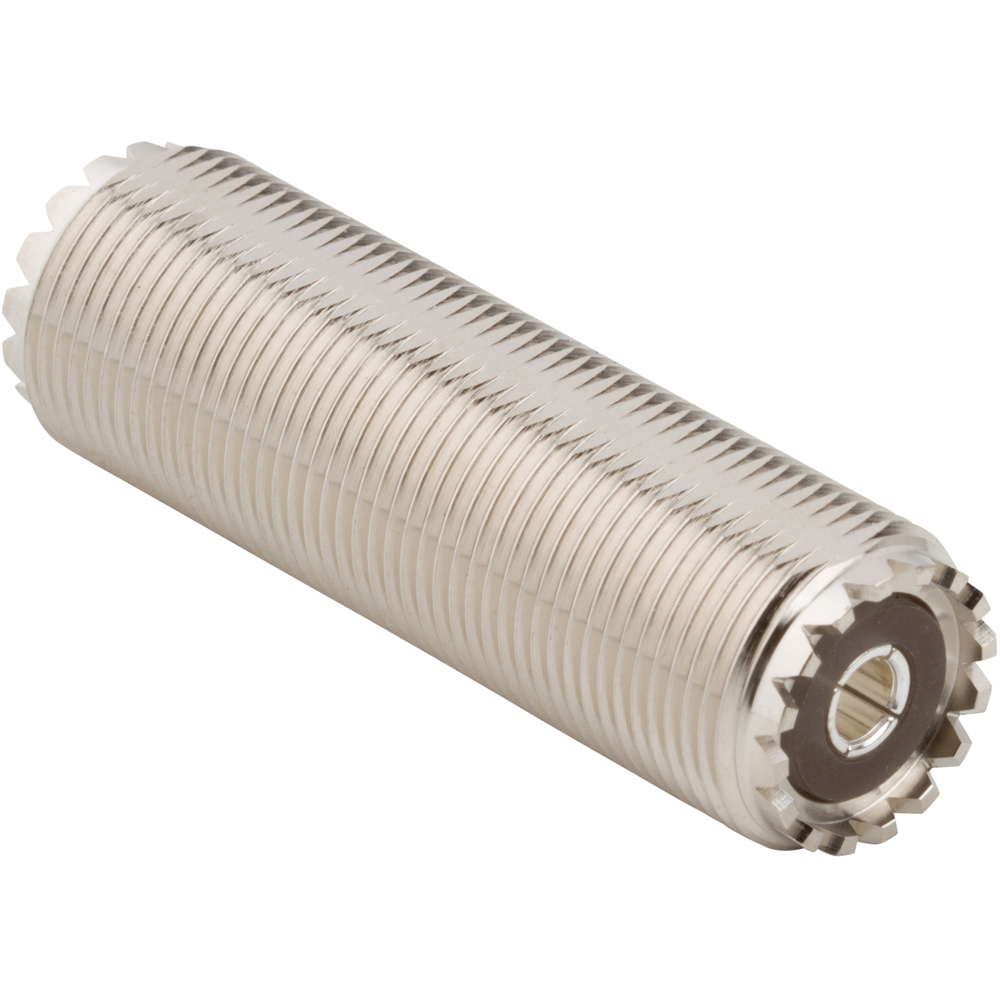

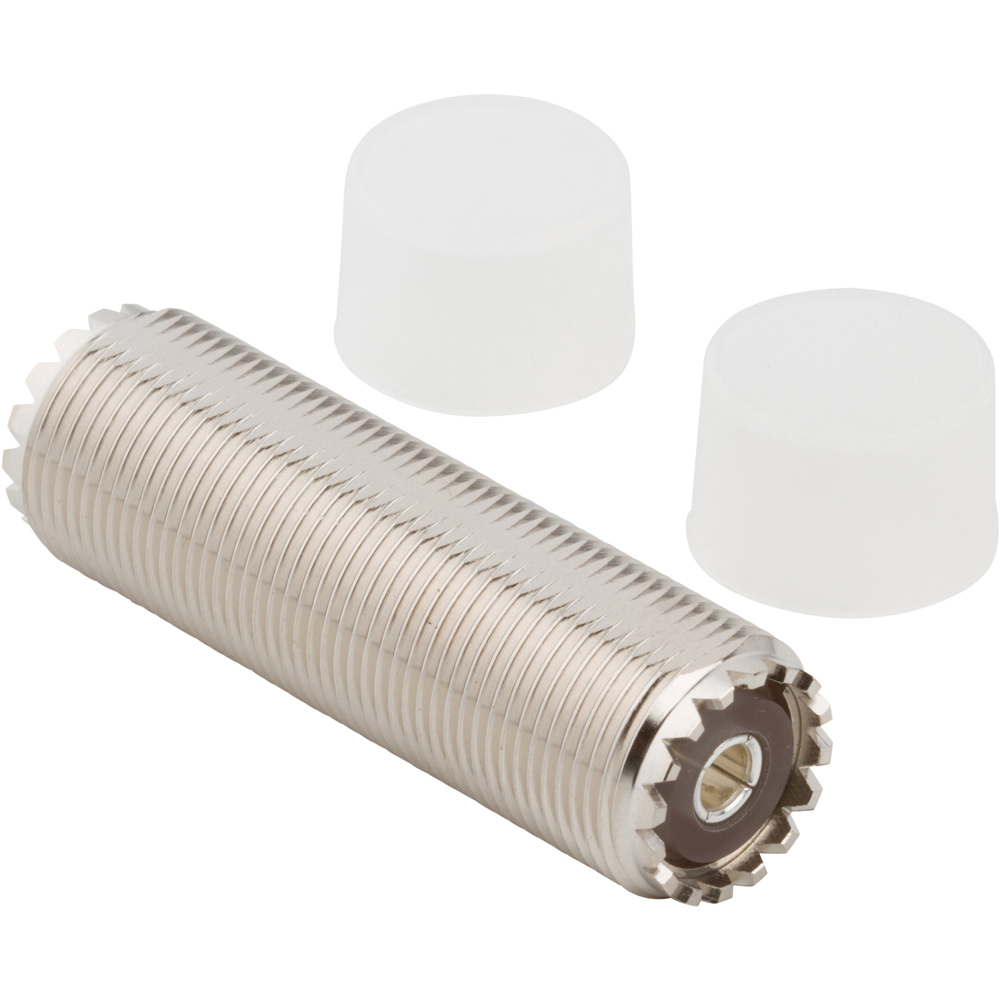

UG-363/U UHF Jack to UHF Jack Adapter Non-Constant Impedance Straight
083-1F
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Adapter Configuration |
UHF Jack to UHF Jack
|
|
| Adapter Type |
In-Series
|
|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Contact Finish |
Silver
|
|
| Contact Material |
Brass
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
0.3
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
Non-Constant
|
|
| Insulator Material |
Polystyrene
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Unit Weight (Grams) |
41.730
|
|
| USMCA Compliant |
Not USMCA Compliant
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
|
083-1F STP 3D Model
(Size: 4.2 MB)
|
stp |
11/11/2025 |
| 083-1F PDF Customer Drawing (Size: 181.6 KB) | pdf |
5/28/2021 |
Product Compliance
| Document Title | Status | |
|---|---|---|
| RoHS | Under Review | |
| California Prop 65 |
