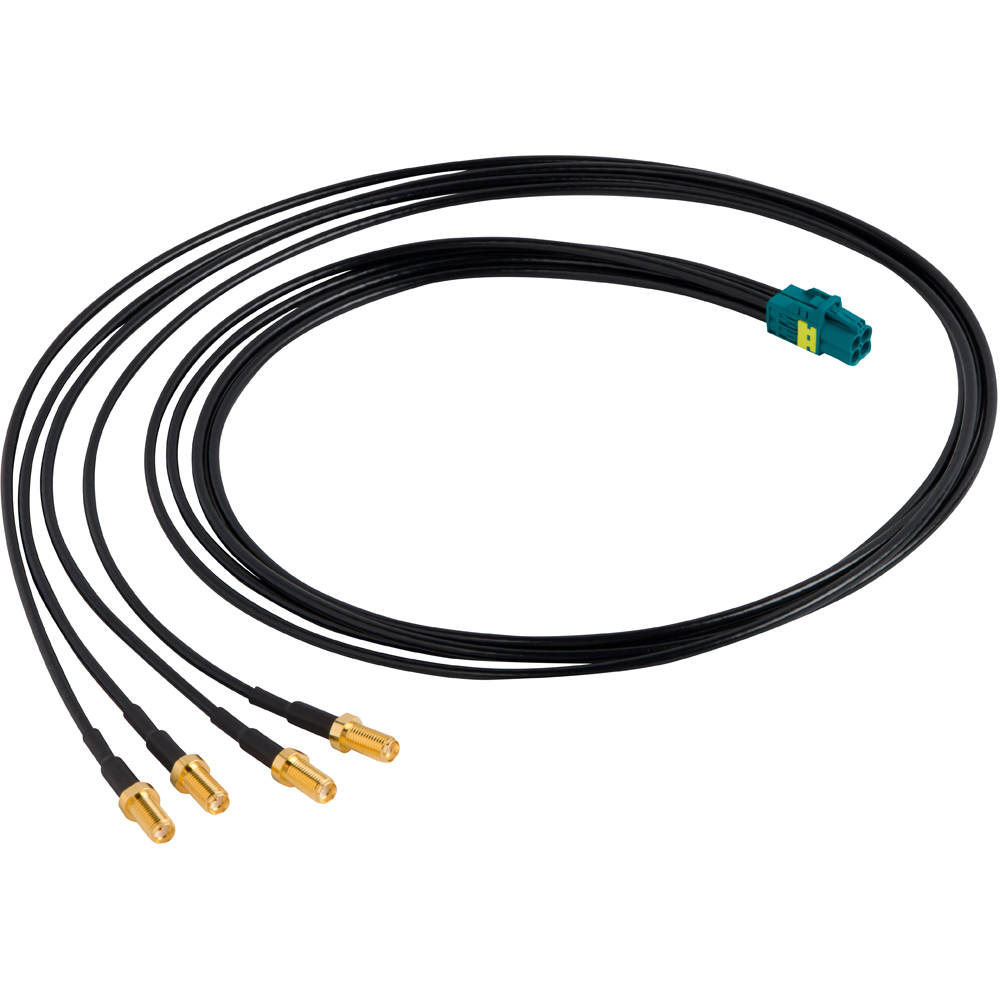

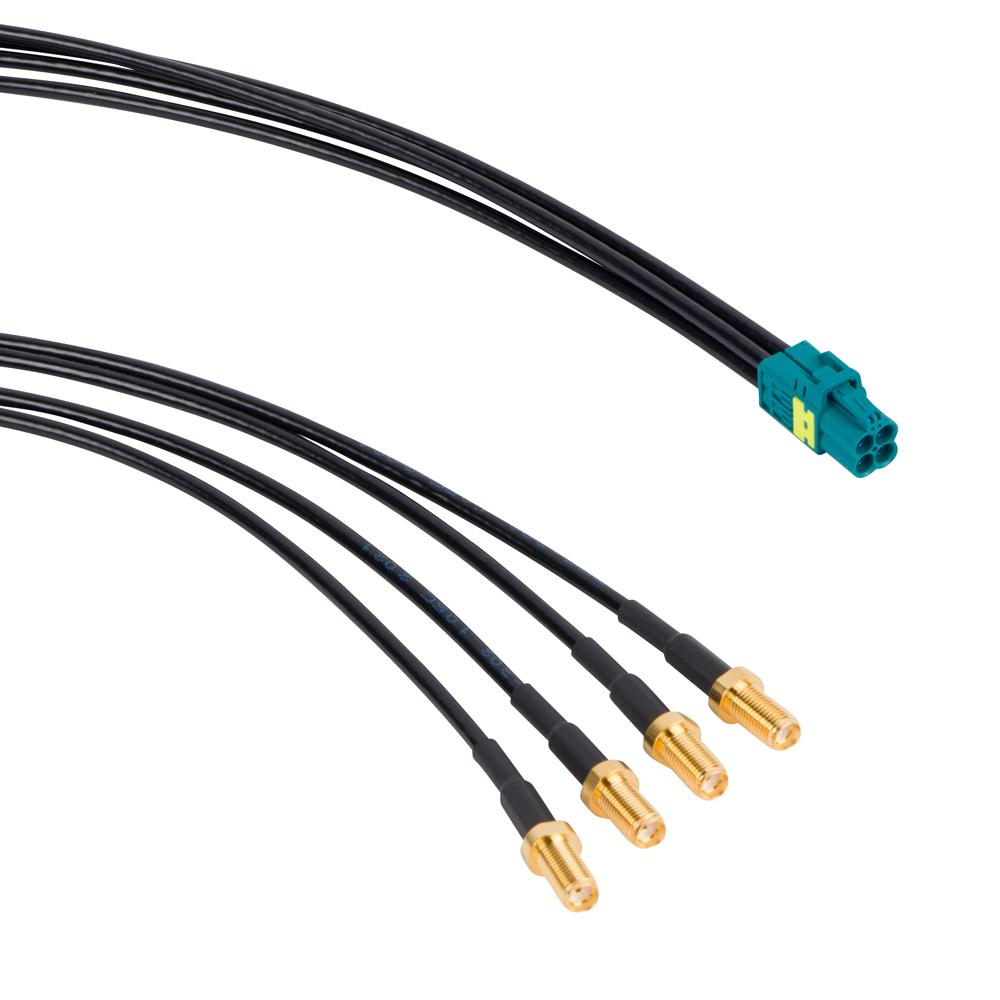

AUTOMATE Type A Mini-FAKRA Quad Jack to SMA Jacks TFC 302LL 1 Meter
095-820-176M100
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Armor Option |
Without Armor
|
|
| Cable Assembly Length |
39.37 in (1000 mm)
|
|
| Cable Assembly Type |
Between-Series
|
|
| Cable Config |
AUTOMATE Type A Jack to SMA Jack
|
|
| Cable Config 2 |
AUTOMATE Type A Jk Str to SMA Jk Str
|
|
| Cable Type Cable Assemblies |
TFC 302LL
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| FAKRA Keycode |
Z - Water Blue (Universal)
|
|
| Frequency (Max GHz) |
9
|
|
| HTS Code |
8544.20.0000
|
|
| Impedance (Ohms) |
50
|
|
| IP Rating |
Not Rated
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| PFAS |
Contains PFAS
|
|
| Temp (Max Degrees Celsius) |
105
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Unit Weight (Grams) |
92.220
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
| AUTOMATE Type A to Mini-FAKRA to SMA Cable Assemblies (Size: 241.9 KB) | pdf |
3/25/2025 |
| AUTOMATE® Mini-FAKRA Product Series Solutions Guide - English (Size: 5.9 MB) | pdf |
1/16/2026 |
|
95-820-176M100 STP 3D Model
(Size: 10.3 MB)
|
stp |
11/11/2025 |
| 95-820-176-XXX PDF Customer Drawing (Size: 212.4 KB) | pdf |
5/3/2022 |
