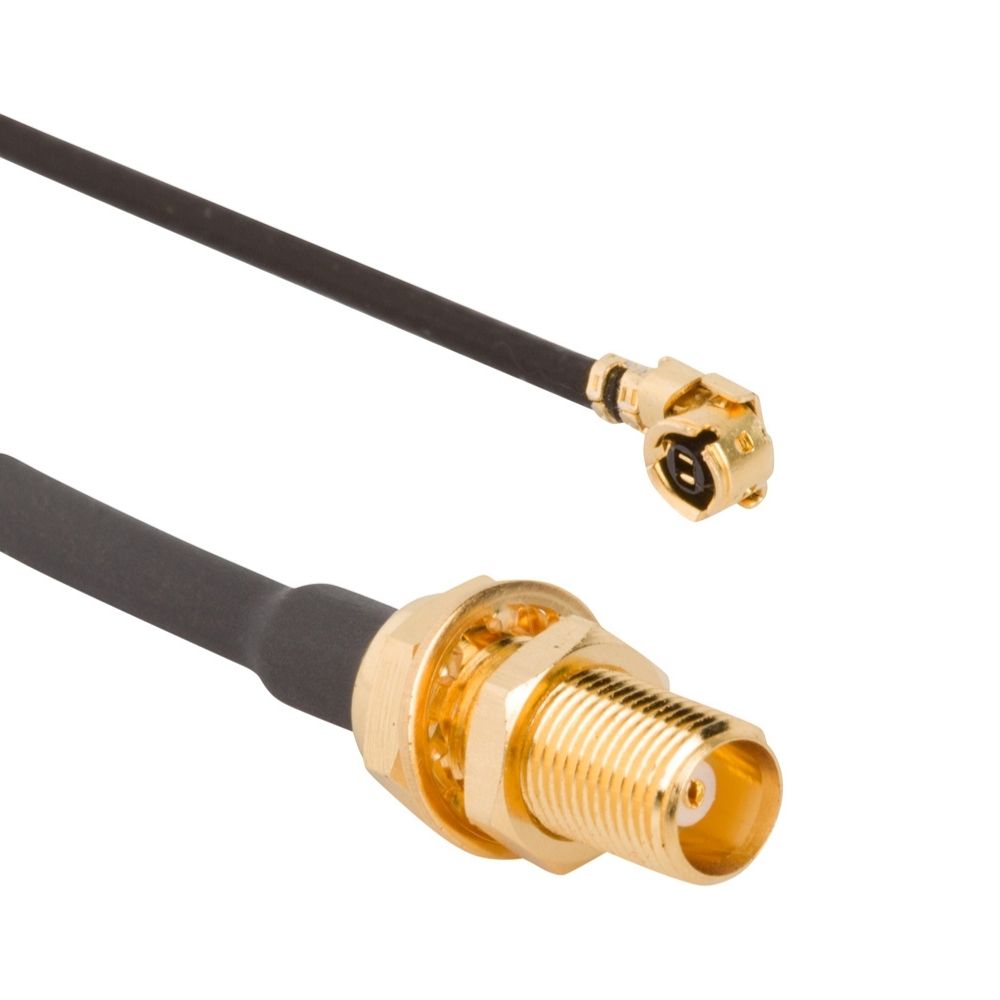

AMC Right Angle Plug to MMCX Straight Jack Bulkhead 1.13 mm Micro-cable 50 Ohm 100 mm
095-900-557-100
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Applications |
Ultraminiature
|
|
| Armor Option |
Without Armor
|
|
| Cable Assembly Length |
3.94 in (100 mm)
|
|
| Cable Assembly Type |
Between-Series
|
|
| Cable Config |
AMC Plug to MMCX Jack
|
|
| Cable Config 2 |
AMC Pl R/A to MMCX Jk Str Bkhd
|
|
| Cable Type Cable Assemblies |
1.13 mm Micro-Cable
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
6
|
|
| HTS Code |
8544.20.0000
|
|
| Impedance (Ohms) |
50
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| PFAS |
Contains PFAS
|
|
| Temp (Max Degrees Celsius) |
90
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Unit Weight (Grams) |
2.500
|
|
