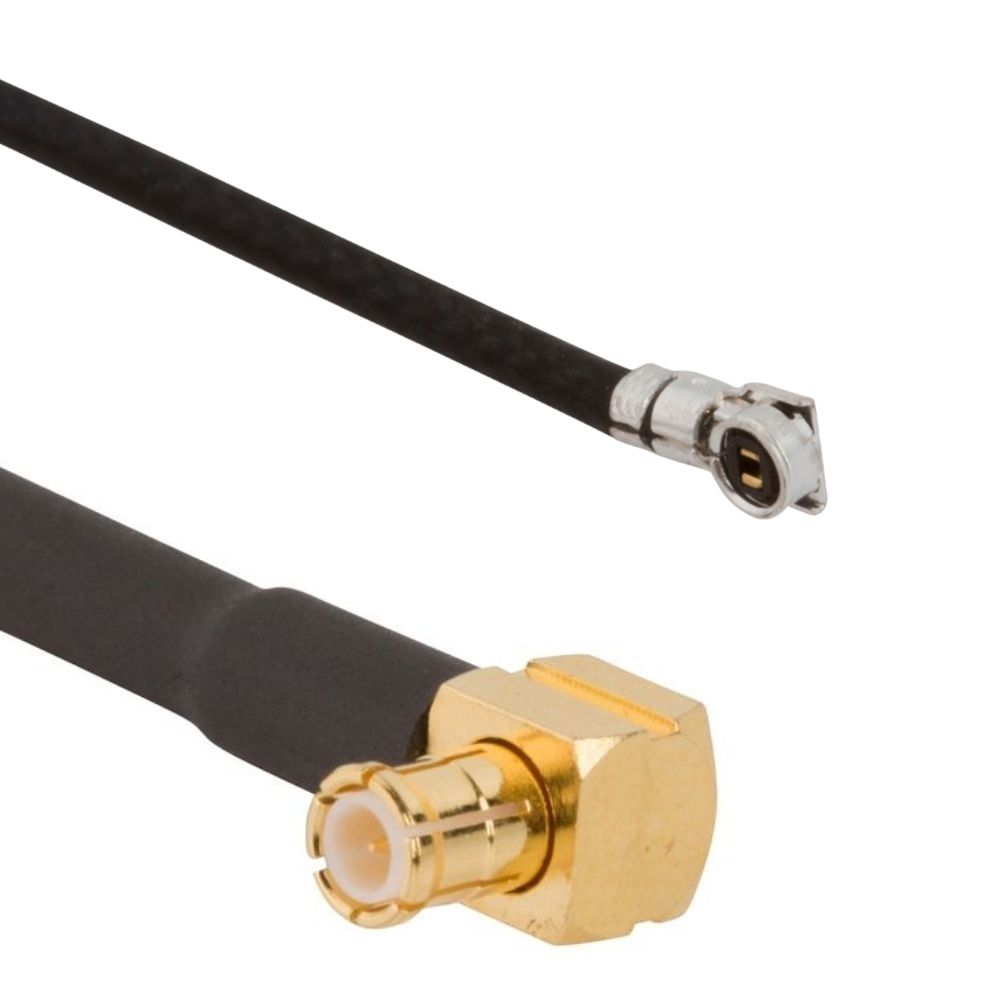

AMC4 Right Angle Plug to MCX Right Angle Plug 1.13 mm 50 Ohm 200 mm

Amphenol RF expands its cable assembly portfolio with MCX assemblies designed to deliver secure, weather-resistant connectivity for wireless communication systems.

Amphenol RF is pleased to announce the expansion of our MCX product series to include additional cable assembly options on RG-174 cable.

Amphenol RF is pleased to expand our cable assembly portfolio with MMCX cable assemblies designed on ultra-flexible 0.81 mm micro‐coax cable. These 50 ohm assemblies are currently available in a single configuration – MMCX right-angle plug to AMC4 right-angle plug – with additional assemblies being released shortly.

Amphenol RF is pleased to introduce the new RP-SMA bulkhead jack to AMC4 plug micro-miniature cable assembly into our robust and broad portfolio of fixed-length cable assemblies.

Amphenol RF is pleased to announce the expansion of our cable assembly portfolio with additional BNC to MCX and MMCX configurations.

Amphenol RF is pleased to expand our waterproof IP‐rated and tamper‐resistant cable assembly options with TNC and RP-TNC configurations.

Amphenol RF is pleased to expand its cable assembly offerings with additional MCX and MMCX cable assemblies designed on flexible 1.13 mm micro‐coax cable.

Amphenol RF expands its pre-configured cable assembly portfolio with new MCX assemblies engineered to provide reliable connectors for industrial and outdoor wireless systems.

Amphenol RF's RP-SMA to AMC4 cable assemblies provide reliable performance up to 6 GHz in compact applications. Featuring an IP67-rated RP-SMA bulkhead jack for waterproof protection, they use ultra-thin 1.13 mm coaxial cable for easy routing in tight spaces. Available in standard lengths from 50 to 400 mm, with custom options on request, they are made from gold-plated brass and phosphor bronze for durability. Designed for IoT, GPS, wireless communication, and industrial enclosures, they operate from -40°C to 90°C with a 50Ω impedance and 200 VRMS dielectric withstanding voltage.

Amphenol RF's 12G MCX connectors support 12Gbps data transfer, facilitating the transmission of high-resolution 4K and Ultra-HD video in a compact size. These connectors are ideal for broadcast modules and video routers, offering both PCB and cable configurations with a push-on coupling mechanism, optimized for 75-ohm 12G SDI applications.

Amphenol RF offers 12G SDI broadcast solutions designed for Ultra High Definition (4K) video, utilizing BNC, HD-BNC, and MCX connectors optimized for 12 Gbps data transfer. These connectors provide reliable, high-quality signal transmission on a single channel, supporting various applications including mobile broadcast, HD cameras, and video routers.

The Amphenol RF FAKRA to AMC4 Cable Assemblies Data Sheet highlights a versatile, high-performance interconnect solution designed for automotive, IoT, and compact RF applications. These cable assemblies combine the secure, high-reliability FAKRA interface with the ultra-miniature AMC4 connector, ensuring seamless integration in space-constrained designs without compromising signal integrity. Engineered for low-loss transmission and robust mechanical performance, they are ideal for antenna connections, telematics, and wireless communication systems.

The Amphenol RF Ultraminiature Product Series datasheet highlights AMC, AMC4, and AMMC micro coaxial connectors, featuring low profiles and small footprints ideal for space-constrained applications like IoT and consumer devices. These 50 ohm connectors, compatible with industry standards, offer snap-on mating for easy connection and provide excellent electrical performance from DC to 6 GHz​​.

Amphenol RF's MMCX Cable Assemblies provide broadband performance with low reflections, featuring quick connect/disconnect snap-on mating in a micro-miniature package size. These 50 ohm assemblies, available in various standard lengths, are ideal for applications such as broadband modules, Wi-Fi access points, GPS units, and antennas, offering reliable performance up to 6 GHz.

Amphenol RF's MCX Cable Assemblies provide broadband performance with low reflections, featuring a quick connect/disconnect snap-on mating mechanism. These 50 and 75 ohm assemblies, available in various lengths and configurations, are ideal for broadcast equipment, Wi-Fi access points, GPS units, and wireless network antennas, offering reliable electrical performance up to 6 GHz (12 GHz for 75 ohm products).

Amphenol RF's MMCX Ultraminiature Product Series offers 50 ohm connectors and cable assemblies designed for micro-coax cable types, providing broadband performance with low reflection and quick connect/disconnect snap-on mating. These assemblies are ideal for space-constrained applications such as IoT devices, Wi-Fi access points, GPS units, and external antenna connections, with configurations that allow for flexible routing within enclosures.

Amphenol RF's MCX Ultraminiature Product Series includes robust, 50 ohm connectors and cable assemblies designed for space-constrained applications such as IoT devices and handheld electronics. These assemblies feature quick connect/disconnect snap-on mating, micro-miniature size, and are available in various configurations, making them suitable for external antennas and internal connections within devices.

The Amphenol RF Micro-Miniature Cable Assembly Solutions Guide highlights compact, high-frequency cable assemblies designed for space-constrained applications. It details key features such as lightweight construction, precision performance, and durability, making them ideal for aerospace, medical, and IoT devices.

The Amphenol RF Locking MHF 4 Ultraminiature Cable Assemblies datasheet describes pre-configured, vibration-resistant 50-ohm cable assemblies featuring the I-PEX MHF® 4 LK locking connector. These ultraminiature assemblies are designed with tamper-resistant, waterproof (IP67) options and utilize 1.37 mm micro-coax cable paired with SMA or RP-SMA connectors for reliable electrical performance in rugged environments. Ideal for continuous shock and vibration applications, they are used in UAVs, IoT devices, military systems, smart agricultural equipment, and communication networks. The datasheet also outlines available standard lengths (50–400 mm) and key specifications, including a frequency range up to 9 GHz, 500 mating cycles minimum, and materials such as gold-plated brass and PTFE insulation.

The Amphenol RF MCX series catalog showcases a family of micro-coaxial (MCX) connectors offering broadband performance from DC to 6 GHz (and up to 12 GHz in 75 Ω broadcast variants) with 50 Ω or 75 Ω impedance options, featuring a compact snap-on coupling mechanism for weight- and space-constrained applications.

The Amphenol RF MCX Cable Assemblies Data Sheet highlights between-series board-to-panel cable solutions designed for wireless communication modules. These assemblies combine compact MCX interfaces with rugged, sealed bulkhead connectors to enable reliable RF connectivity in space-constrained and environmentally exposed applications.

The Amphenol RF MMCX cable assemblies datasheet outlines pre-configured 50-ohm RF cable solutions using flexible RG-174 coax for reliable connections in wireless communication modules. It highlights available connector configurations, electrical performance characteristics, and suitability for applications such as IoT, GPS, Wi-Fi, and other compact RF systems.

This datasheet highlights Amphenol RF’s MCX cable assemblies for wireless communication modules, featuring between-series board-to-panel configurations built on flexible RG-316 cable for reliable performance up to 6 GHz. The assemblies combine MCX straight or right-angle plugs with rugged, IP67-rated bulkhead connectors—including SMA, RP-SMA, TNC, RP-TNC, and N-Type—designed to provide secure, sealed connections that protect systems from temporary water and fluid ingress. Optimized for short-distance RF applications, these cable assemblies offer high heat resistance, durability, and low signal loss, making them well-suited for portable IoT devices, drones, GPS/GNSS, Wi-Fi, and demanding industrial, agricultural, and construction environments, with a wide range of standard and custom cable lengths available.
