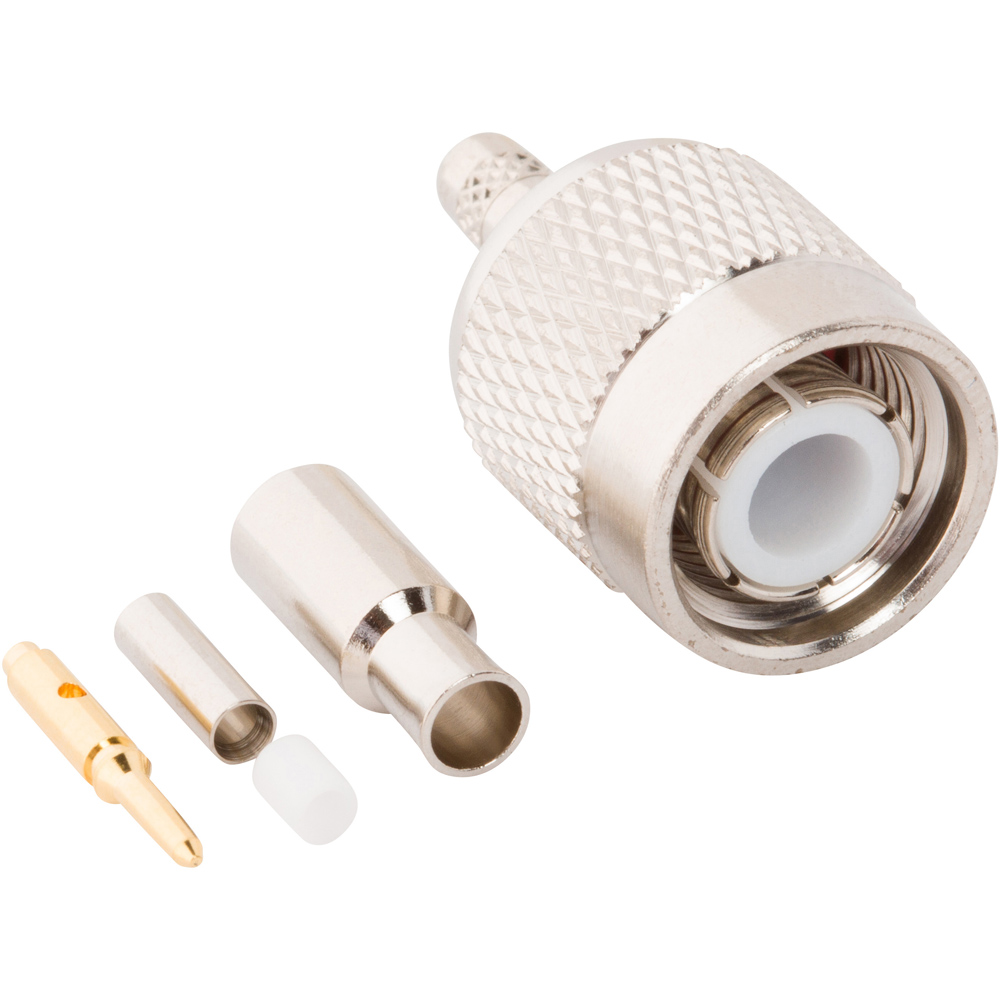

TNC Straight Crimp Plug RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm
122116
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Assembly Tool |
47-10150
|
|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Cable Group |
B
|
|
| Cable Type (Terminates To) |
RG-174, RG-188, RG-316, Times LMR-100A, Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Times RG-174LL, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Leoni DACAR 462, Leoni DACAR 462-2
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Brass
|
|
| Contact Termination |
Crimp
|
|
| Country of Origin |
VN
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
11
|
|
| Gender |
Plug
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Miniature
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
Cable - Crimp
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
12.400
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| 122116 PDF Customer Drawing (Size: 58 KB) | pdf |
8/7/2019 |
Product Compliance
| Document Title | Status | |
|---|---|---|
| RoHS | Compliant with Exemption 6C | |
| California Prop 65 |
Related Resources
Enable Connectivity in Wireless Communication Modules With MCX Cable Assemblies
Amphenol RF expands its cable assembly portfolio with MCX assemblies designed to deliver secure, weather-resistant connectivity for wireless communication systems.
Expanded flexible cable offerings support industrial connectivity
Amphenol RF is pleased to announce the expansion of our TNC product series with high-performance cable assemblies on a variety of popular flexible cable types
Support heavy equipment designs with waterproof IP67 RP-TNC connectors
Amphenol RF is pleased to announce the expansion of the popular miniature-sized TNC interface with additional reverse polarity configurations.
Waterproof and tamper-resistant pre-configured cable assemblies add design value
Amphenol RF is pleased to offer waterproof IP-rated and tamper-resistant cable assemblies designed using 1.13 mm micro coax cable.
Secure and protect your system with IP67 TNC and RP-TNC tamper-resistant products
Amphenol RF is pleased to offer waterproof IP rated connectors and cable assemblies as part of our growing TNC and RP-TNC product series.
Develop designs suitable for outdoor use with new IP67 TNC jacks
Amphenol RF is pleased to announce the expansion of the popular miniature-sized TNC interface with additional configurations designed to accommodate micro coax cable types.
Secure ultraminiature cable assemblies in high-vibration industrial applications
Amphenol RF is pleased to introduce SMA and TNC to I-PEX's MHF® I LK locking cable assemblies on ultra-flexible 1.13 mm micro-coax cable.
New IP67 connectors provide protection from the elements
Amphenol RF is pleased to introduce an expansion of their waterproof IP67 products.
New TNC designs to micro-coax offer flexible and secure options for small applications
Amphenol RF is pleased to expand our TNC product offerings with additional front mount bulkhead jacks designed to accommodate flexible ultraminiature coax cable types.
Improved connectivity solutions with new TNC and RP-TNC connectors
Amphenol RF is pleased to announce the expansion of our robust TNC product series to include additional configurations in both standard and reverse-polarity.
Develop and expand connectivity options for RFID and industrial applications
Amphenol RF is pleased to offer cable assembly configurations featuring popular RF interfaces that are uniquely engineered to support RFID applications.
[Don't] show off with non-reflective black plated RF interconnect
Amphenol RF is pleased to introduce a black zinc-cobalt plating option for a variety of radio frequency connectors and coaxial adapters to expand the versatility of existing product designs.
Amphenol RF expands connectivity solutions with new RP-TNC connector configurations
Amphenol RF is pleased to announce the expansion of our robust reverse polarity TNC portfolio with additional configurations designed to accommodate micro-coax cable types including 0.81 mm, 1.13 mm, 1.32 mm dual shielded, 1.37 mm and RG-178.
Safeguard your system against salt spray with corrosive-resistant RF interconnect
Amphenol RF is pleased to introduce a line of safe and sustainable radio frequency connectors and coaxial adapters with enhanced durability.
TNC and RP-TNC cable assemblies add ultraminiature connectivity
Amphenol RF is pleased to expand our connectivity options to include standard and waterproof IP‐rated cable assemblies with TNC and RP‐TNC configurations.
Protect your next design with unique PVC armor cable assemblies
Amphenol RF is pleased to announce the expansion of our ruggedized product portfolio with new IP67 sealed BNC and TNC cable assemblies.
Increase system security with waterproof IP67 rated TNC connectors
Amphenol RF is pleased to announce the expansion of the TNC product series with a new right-angle cable plug designed for Times Microwave LMR-240 cable.
Increased connectivity options with waterproof IP67 RP-TNC connectors
Amphenol RF is pleased to announce the expansion of the popular miniature-sized TNC interface with an additional reverse polarity (RP) configuration.
Secure IP67-Rated MMCX Cable Assemblies For Demanding Wireless Environments
Amphenol RF expands its pre-configured cable assembly portfolio with new MMCX assemblies engineered to provide dependable connectivity for wireless communication modules.
.png)
Establish Secure Connections With MCX Cable Assemblies For Wireless Communication Modules
Amphenol RF expands its pre-configured cable assembly portfolio with new MCX assemblies engineered to provide reliable connectors for industrial and outdoor wireless systems.
Connectors Optimized for Low Loss Cables
The "Connectors Optimized for Low Loss Cables" guide by Amphenol RF features redesigned SMA, TNC, and N-Type connectors specifically tailored for Low Loss cables. These connectors, which include straight and right-angle plugs and jacks, provide enhanced shielding, improved grounding, and low signal loss for applications requiring high reliability, such as smart city infrastructure and IoT antenna systems. They support frequencies up to 12.4 GHz for SMA and 6 GHz for TNC and N-Type connectors, ensuring consistent electrical performance and quick, secure assembly with standard hex crimp tooling.

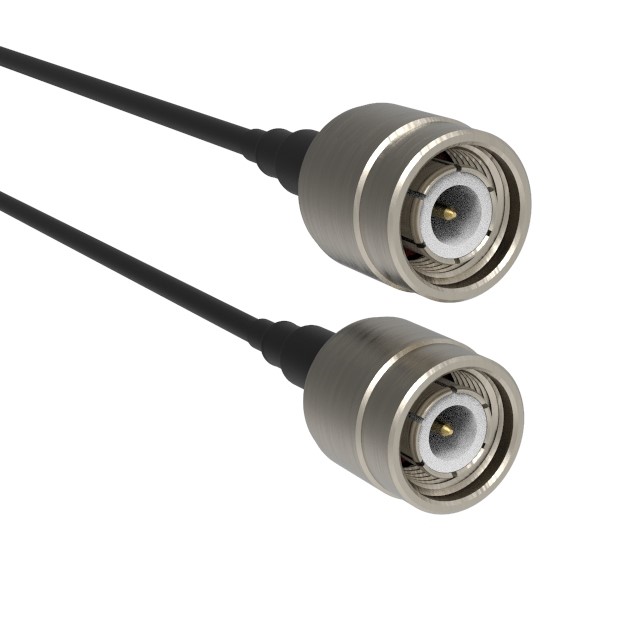

TNC Plug-to-Plug Cable Assemblies
