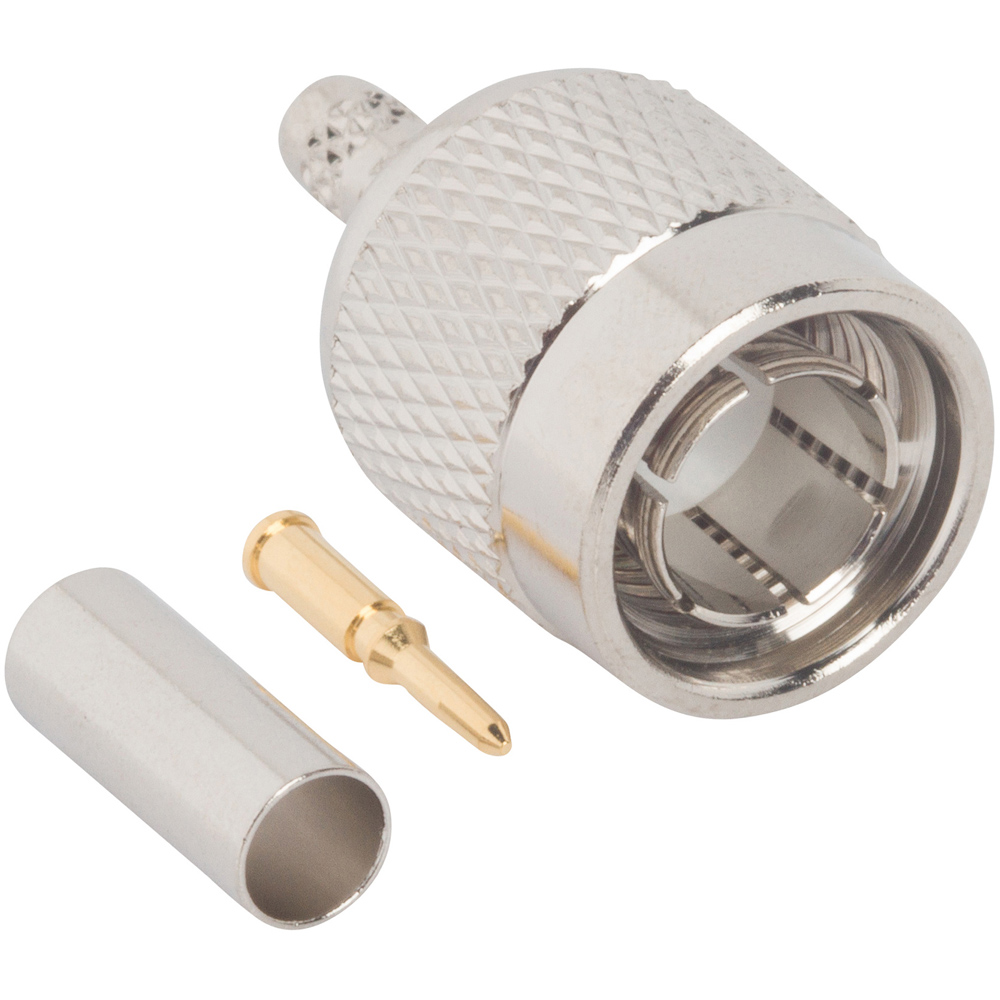

TNC Straight Crimp Plug Belden 1855A 75 Ohm
122457
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Cable Group |
D4
|
|
| Cable Type (Terminates To) |
Belden 1855A, Belden 4855R, Belden 4855P
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Brass
|
|
| Contact Termination |
Crimp
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
1
|
|
| Gender |
Plug
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
75
|
|
| Insulator Material |
Delrin
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Miniature
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
Cable - Crimp
|
|
| Thread Direction |
Standard
|
|
