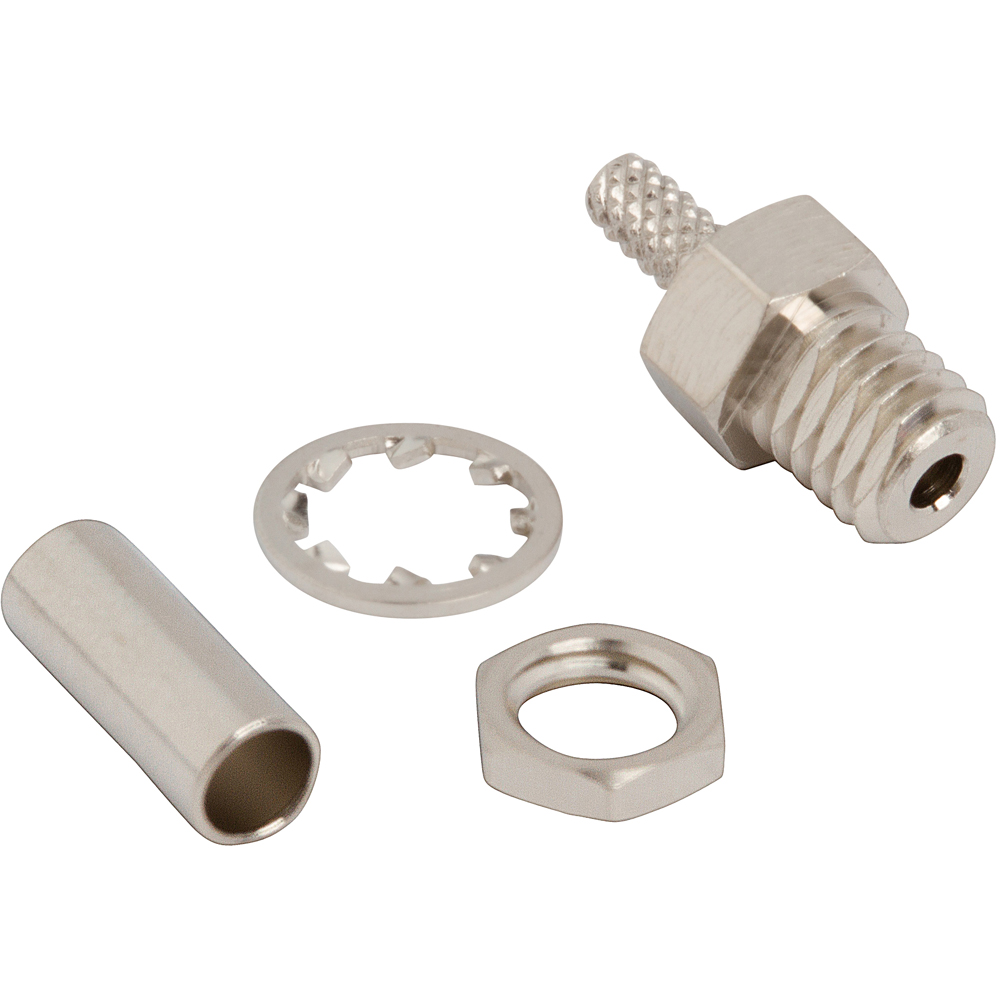

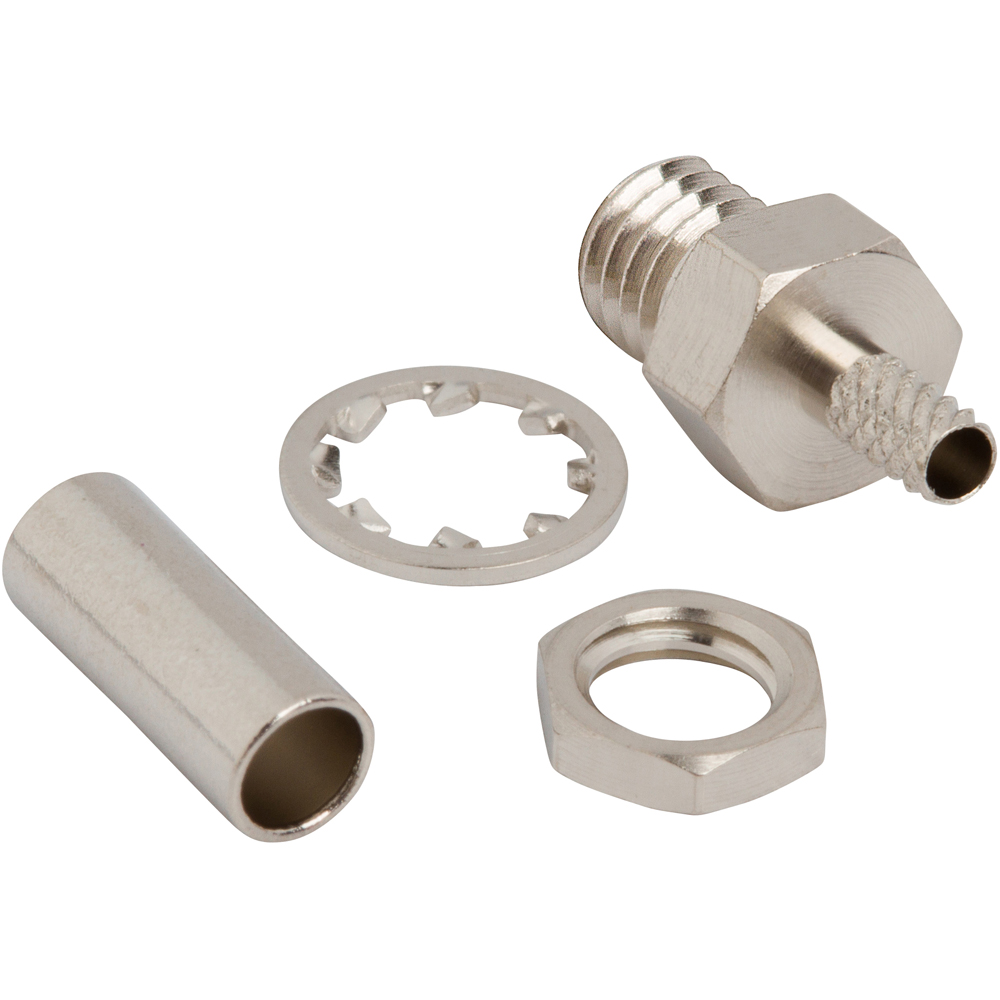

PCB Termination Straight Crimp RG-59 20AWG RG-59DS Bulkhead 50 Ohm

142207

Part Status: Active

Attributes	Details	See Similar Select the attributes below to view similar products
Body Finish	Nickel
Body Material	Brass
Cable Group	G
Cable Type (Terminates To)	RG-59 20AWG, RG-59 Double Shield, RD-59, Belden 8281, Belden 9141, Belden 9231, Belden 88281, Canare LV-775
Country of Origin	CN
ECCN	EAR99
HTS Code	8536.69.4010
Insulator Material	Not Applicable
IP Rating	Not Rated
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	Contains Magnetic Materials
Orientation	Straight
Panel Mounting Feature	Bulkhead - Rear Mount
PFAS	PFAS Not Intentionally Added
Ports	1 (Single Port)
Temp (Max Degrees Celsius)	80
Temp (Min Degrees Celsius)	-40
Termination Style	Cable - Crimp
Unit Weight (Grams)	1.820

Document Title	Type	Publish Date
142207 PDF Customer Drawing (Size: 58.3 KB)	pdf	5/28/2021
