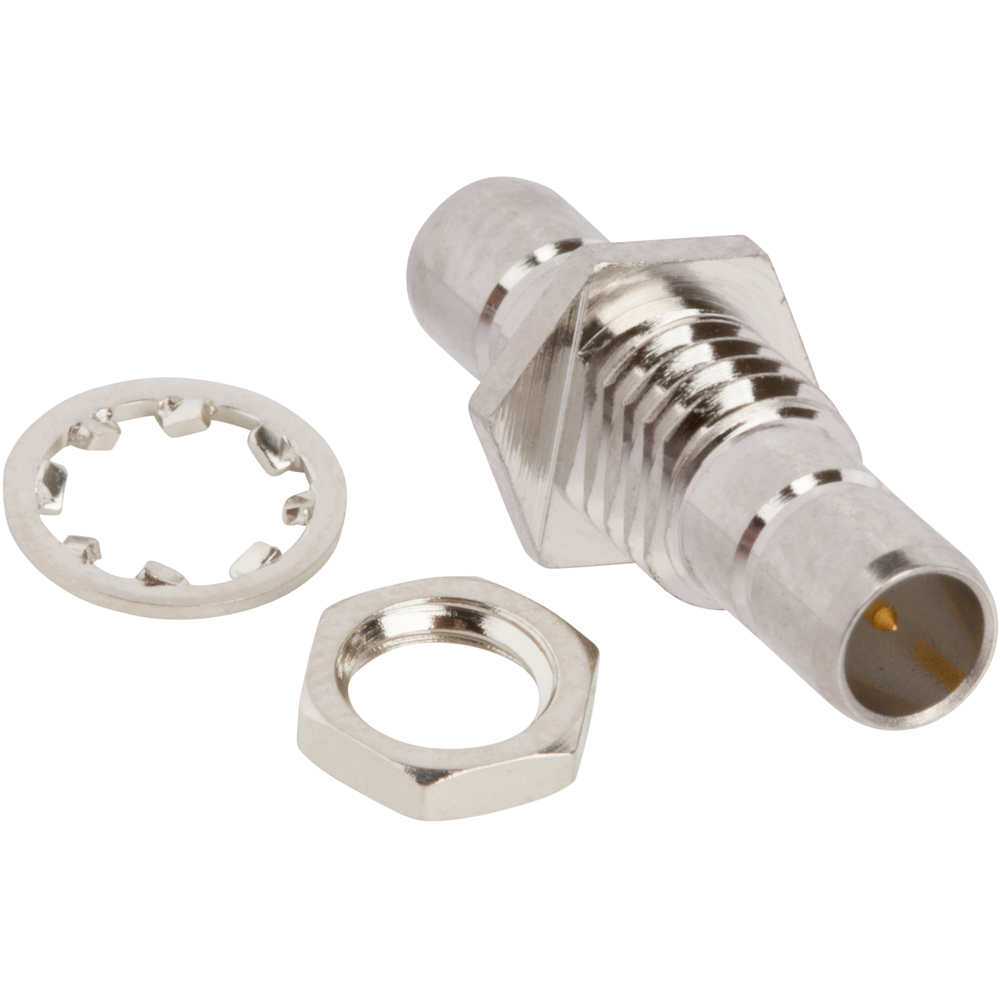

Mini-SMB Jack to Mini-SMB Jack Adapter 75 Ohm Straight Bulkhead
142249-75
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Adapter Configuration |
Mini-SMB Jack to Mini-SMB Jack
|
|
| Adapter Type |
In-Series
|
|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Brass
|
|
| Country of Origin |
VN
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
4
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
75
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Bulkhead
|
|
| PFAS |
Contains PFAS
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
|
142249-75 STP 3D Model
(Size: 670.2 KB)
|
stp |
11/11/2025 |
| 142249-75 PDF Customer Drawing (Size: 62 KB) | pdf |
5/28/2021 |
