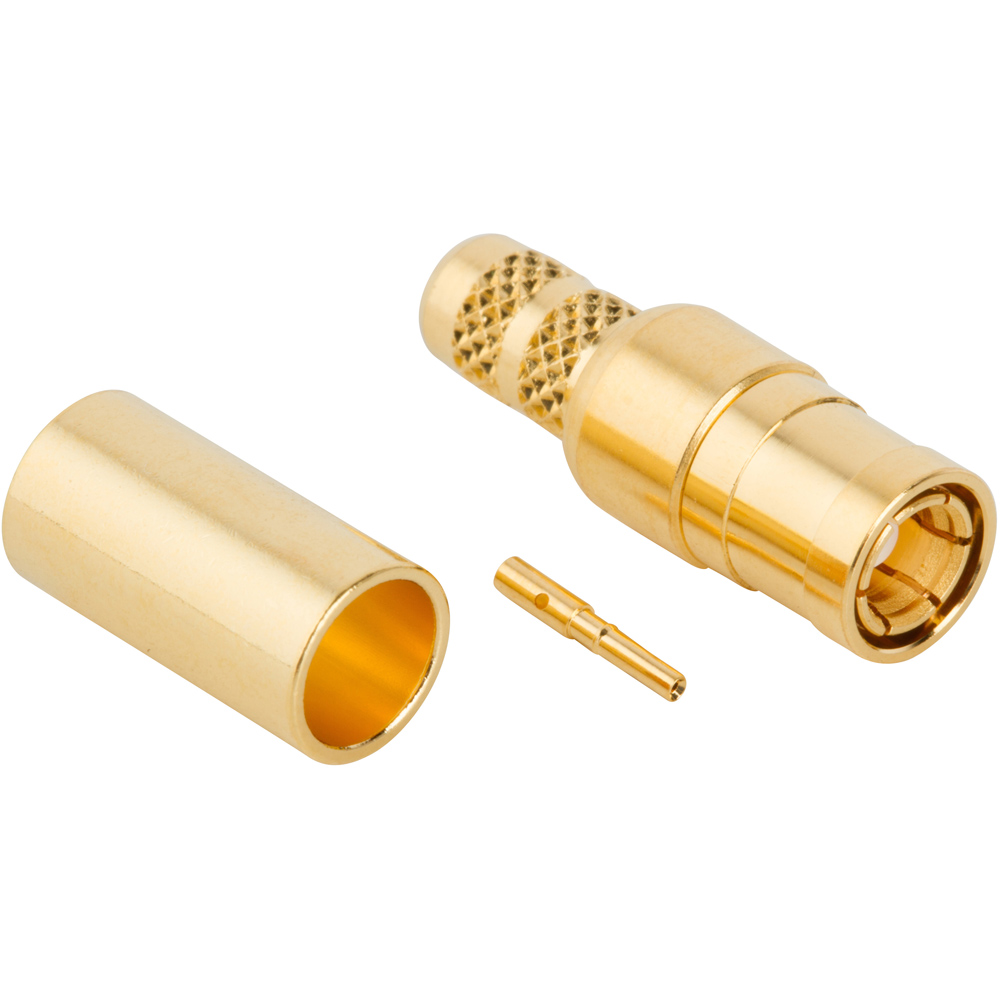

SMB Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm
142255
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Assembly Tool |
47-10070
|
|
| Body Finish |
Gold
|
|
| Body Material |
Brass
|
|
| Cable Group |
C
|
|
| Cable Type (Terminates To) |
RG-58, RG-141, Times LMR-195, Times LMR-200-LLPL, Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Beryllium Copper
|
|
| Contact Termination |
Solder
|
|
| Country of Origin |
VN
|
|
| Coupling Mechanism |
Push-on
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
4
|
|
| Gender |
Plug
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Subminiature
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Termination Style |
Cable - Crimp
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
3.800
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| Assembly Instructions 3 Piece Crimp-Solder (Size: 44.1 KB) | pdf |
12/14/2022 |
| 142255 PDF Customer Drawing (Size: 62.3 KB) | pdf |
5/28/2021 |
Product Compliance
| Document Title | Status | |
|---|---|---|
| RoHS | Compliant with Exemption 6C | |
| California Prop 65 |
Related Resources
Secure 50-Ω board-level connectivity with the compact surface-mount SMB jack
Amphenol RF is pleased to introduce a new high-performance surface-mount straight SMB jack into our broad portfolio of SMB connectors.
Add more flexibility with new 50Ω SMB cable assembly options
Amphenol RF is proud to introduce additional SMB cable assemblies into our wide portfolio of pre-configured RF assemblies.

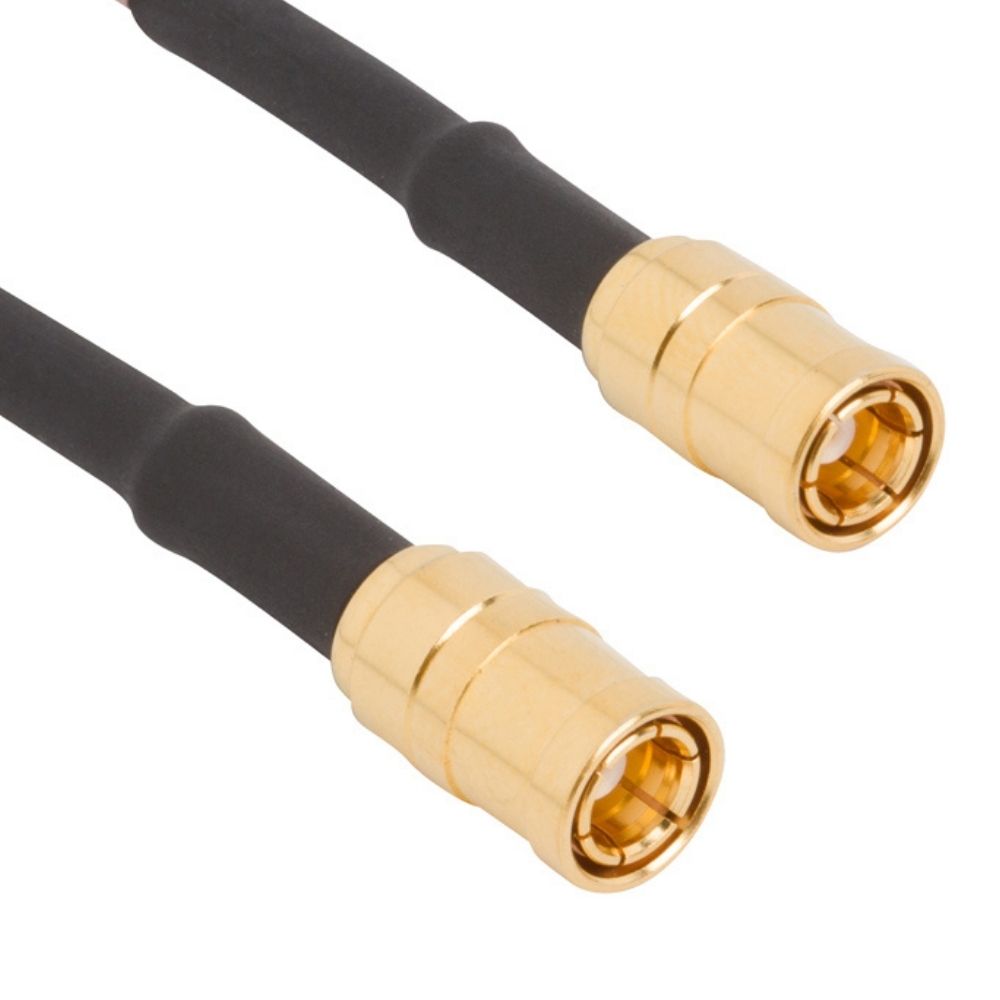

50 Ohm SMB Plug to Plug Cable Assemblies
The Amphenol RF SMB Plug to Plug Cable Assemblies datasheet details versatile and reliable 50 ohm assemblies with flexible coax cables, available in various lengths and configurations. These assemblies feature a push-on coupling mechanism, are suitable for applications like test and measurement equipment, and support performance up to 4 GHz (or 1 GHz for RG-174 cables).
