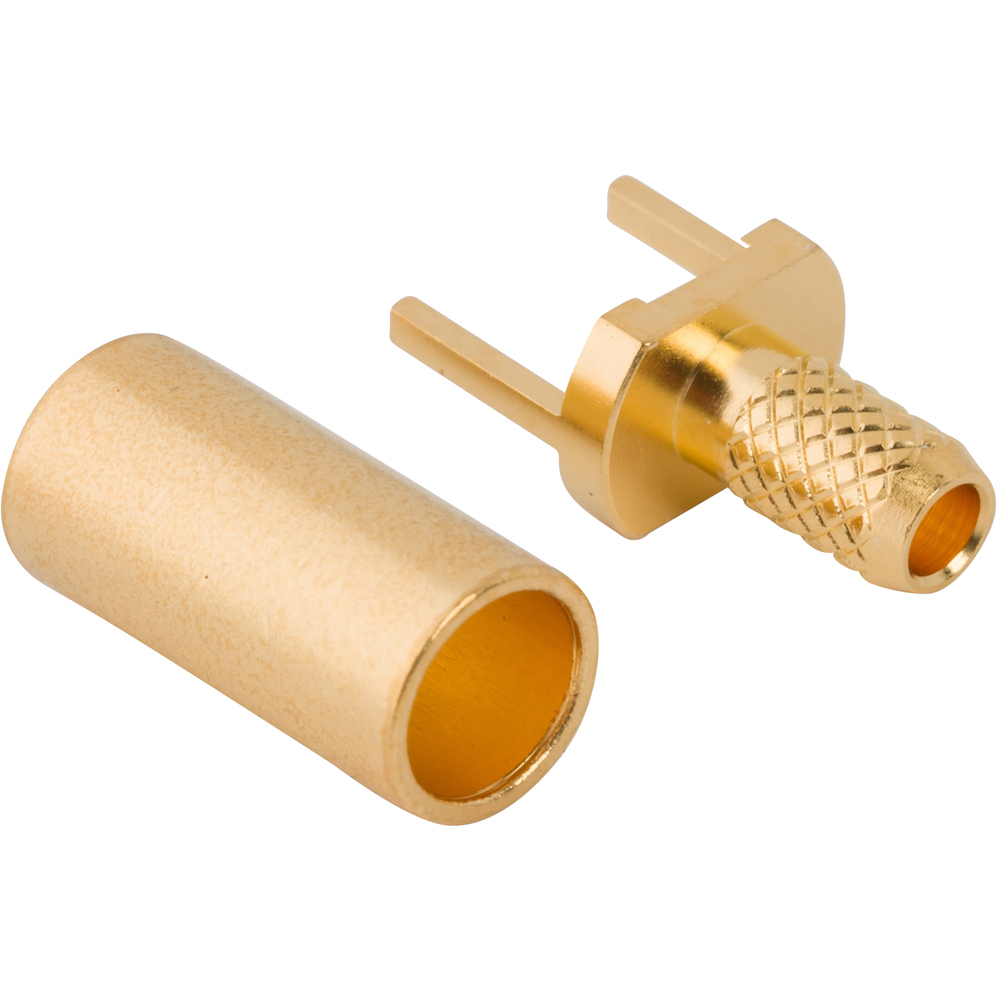

PCB Termination Straight Through Hole RG-316DS RD-316 50 Ohm
142257
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Gold
|
|
| Body Material |
Brass
|
|
| Cable Group |
B1
|
|
| Cable Type (Terminates To) |
RG-316 Double Shield, RD-316, RG-188 Double Shield, RD-188
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| HTS Code |
8536.69.4010
|
|
| Insulator Material |
Not Applicable
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Not Intentionally Added
|
|
| Ports |
1 (Single Port)
|
|
| Temp (Max Degrees Celsius) |
80
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
PCB - Through Hole
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| 142257 PDF Customer Drawing (Size: 40.4 KB) | pdf |
5/28/2021 |
