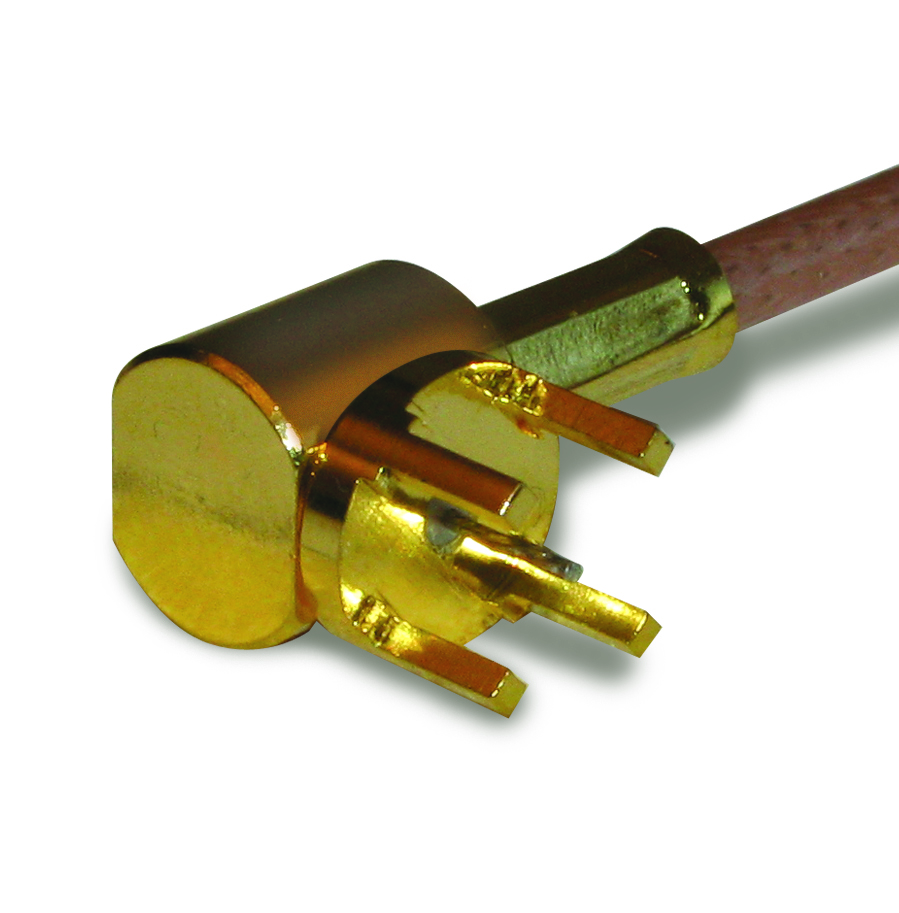

PCB Termination Right Angle Through Hole RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm

142268

Part Status: Active

Attributes	Details	See Similar Select the attributes below to view similar products
Body Finish	Gold
Body Material	Brass
Cable Group	B
Cable Type (Terminates To)	RG-174, RG-188, RG-316, Times LMR-100A, Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Times RG-174LL, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Leoni DACAR 462, Leoni DACAR 462-2
Country of Origin	CN
ECCN	EAR99
HTS Code	8536.69.4010
Insulator Material	Not Applicable
IP Rating	Not Rated
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	Contains Magnetic Materials
Orientation	Right Angle
Panel Mounting Feature	Not Applicable
PFAS	PFAS Not Intentionally Added
Ports	1 (Single Port)
Temp (Max Degrees Celsius)	80
Temp (Min Degrees Celsius)	-40
Termination Style	PCB - Through Hole
Unit Weight (Grams)	4.100

Document Title	Type	Publish Date
142268 PDF Customer Drawing (Size: 44.6 KB)	pdf	5/28/2021
