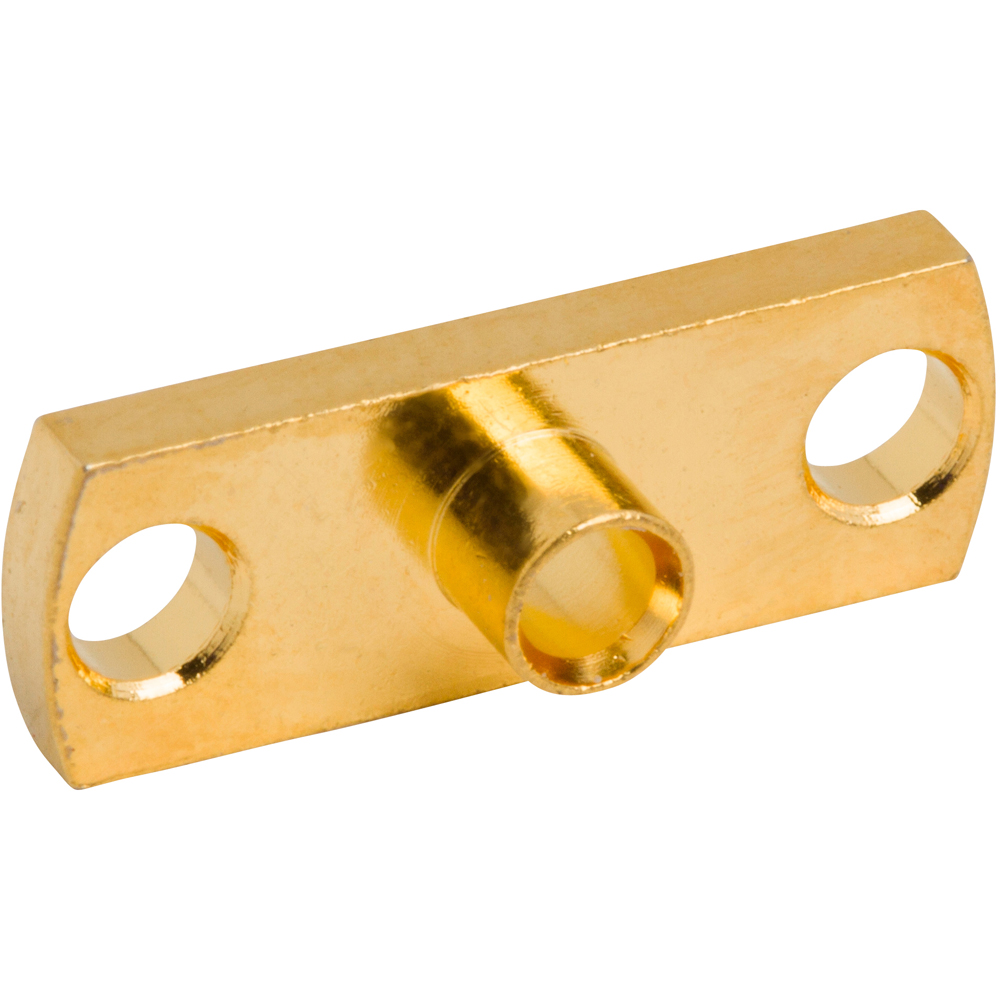

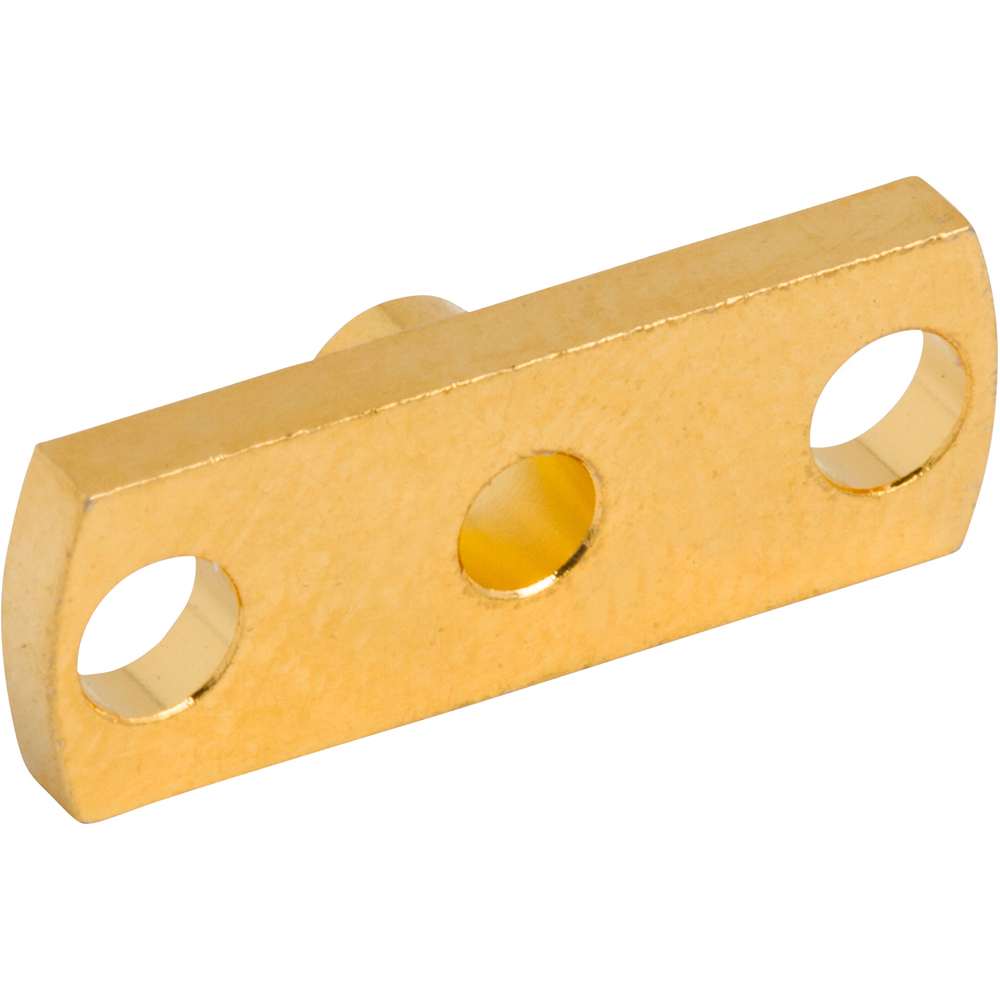

PCB Termination Straight Solder 0.085-inch Conformable 0.086-inch Conformable RG-405 2-Hole Flange 50 Ohm
142294
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Gold
|
|
| Body Material |
Brass
|
|
| Cable Group |
SR1
|
|
| Cable Type (Terminates To) |
0.085-inch Semi-Rigid, 0.086-inch Semi-Rigid, 0.085-inch Conformable, 0.086-inch Conformable, RG-405, Times Tflex 405, Belden 1671A
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
Cable Defined
|
|
| HTS Code |
8536.69.4010
|
|
| Insulator Material |
Not Applicable
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
2-Hole Flange
|
|
| PFAS |
PFAS Not Intentionally Added
|
|
| Ports |
1 (Single Port)
|
|
| Temp (Max Degrees Celsius) |
80
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
Cable - Solder
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| 142294 PDF Customer Drawing (Size: 50.2 KB) | pdf |
5/28/2021 |
