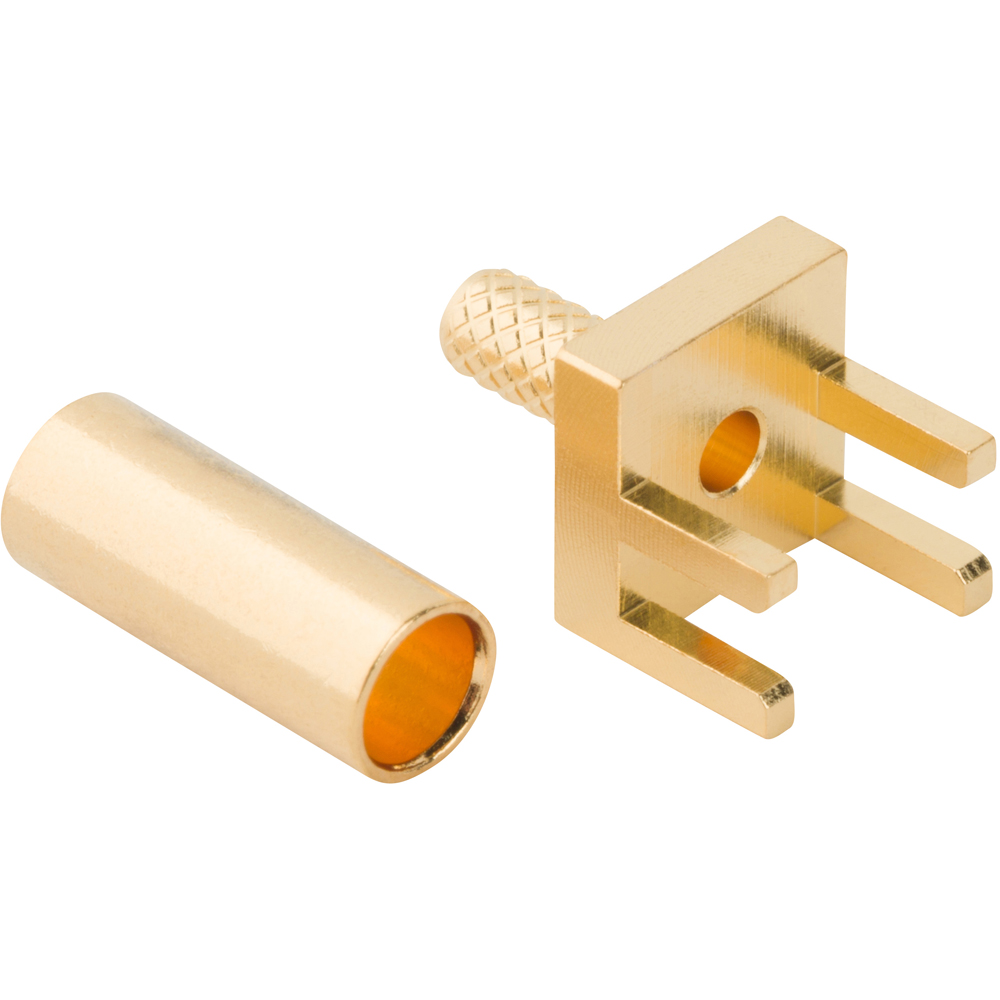

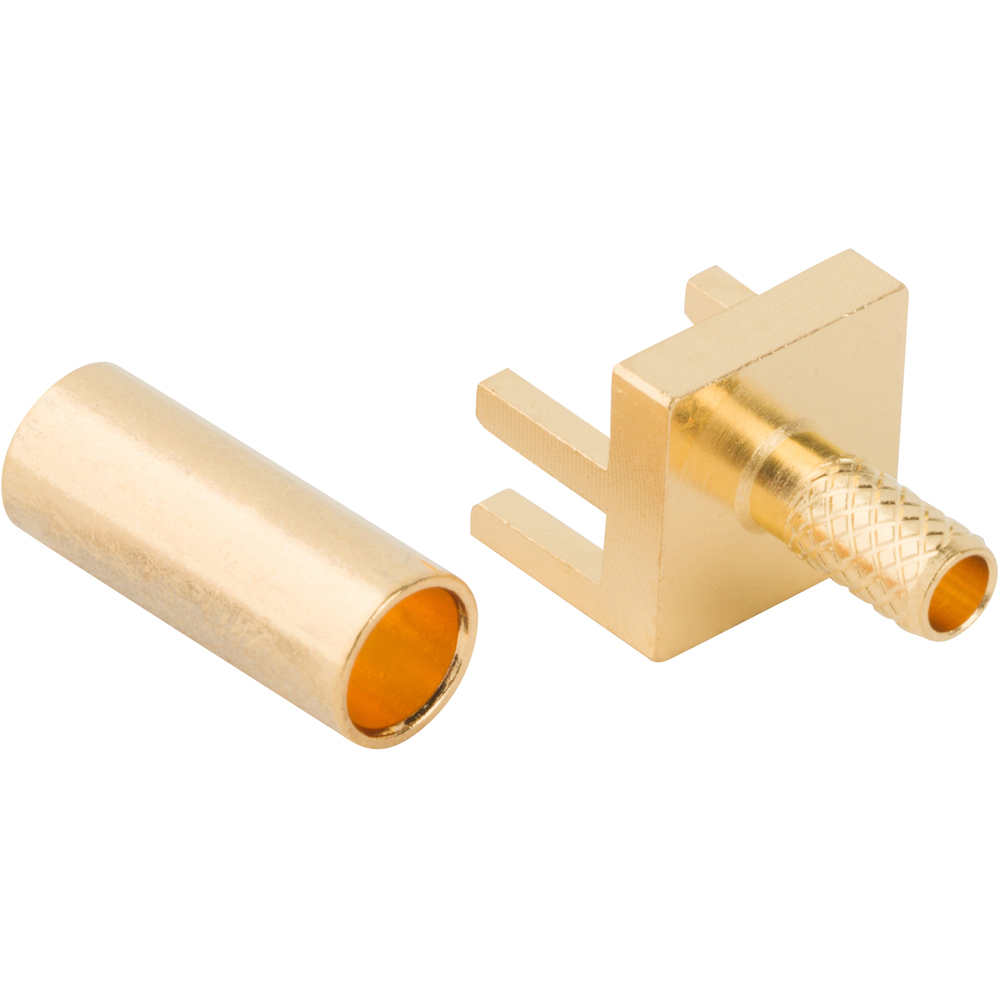

PCB Termination Straight Crimp RG-59 20AWG RG-59DS 50 Ohm
142304
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Gold
|
|
| Body Material |
Brass
|
|
| Cable Group |
G
|
|
| Cable Type (Terminates To) |
RG-59 20AWG, RG-59 Double Shield, RD-59, Belden 8281, Belden 9141, Belden 9231, Belden 88281, Canare LV-775
|
|
| Country of Origin |
VN
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
Cable Defined
|
|
| HTS Code |
8536.69.4010
|
|
| Insulator Material |
Not Applicable
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Not Intentionally Added
|
|
| Ports |
1 (Single Port)
|
|
| Temp (Max Degrees Celsius) |
80
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
Cable - Crimp
|
|
| Unit Weight (Grams) |
1.020
|
|
