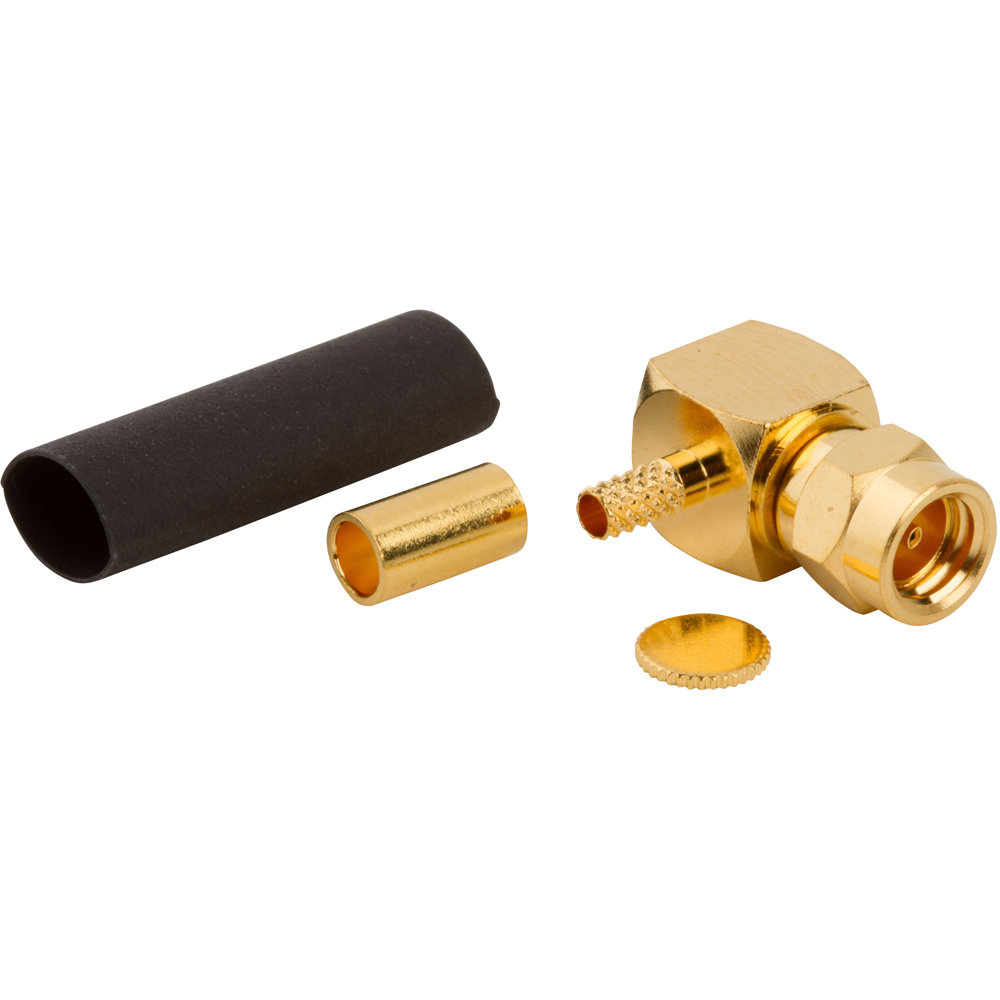

Mini SMC Right Angle Crimp Plug RG-179 Belden 179DT 75 Ohm
152107-75
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Assembly Tool |
47-10150
|
|
| Body Finish |
Gold
|
|
| Body Material |
Brass
|
|
| Cable Group |
SR1
|
|
| Cable Type (Terminates To) |
RG-179 DB, RG-179 Double Shield, RD-179, AT&T 19224L2
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Beryllium Copper
|
|
| Contact Termination |
Solder
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
10
|
|
| Gender |
Plug
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
75
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Right Angle
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Subminiature
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Termination Style |
Cable - Crimp
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
6.500
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
|
152107-75 STP 3D Model
(Size: 645.3 KB)
|
stp |
11/11/2025 |
| Assembly Instructions Right Angle Crimp Solder (Size: 143.4 KB) | pdf |
12/19/2022 |
| 152107-75 PDF Customer Drawing (Size: 69.1 KB) | pdf |
5/28/2021 |
