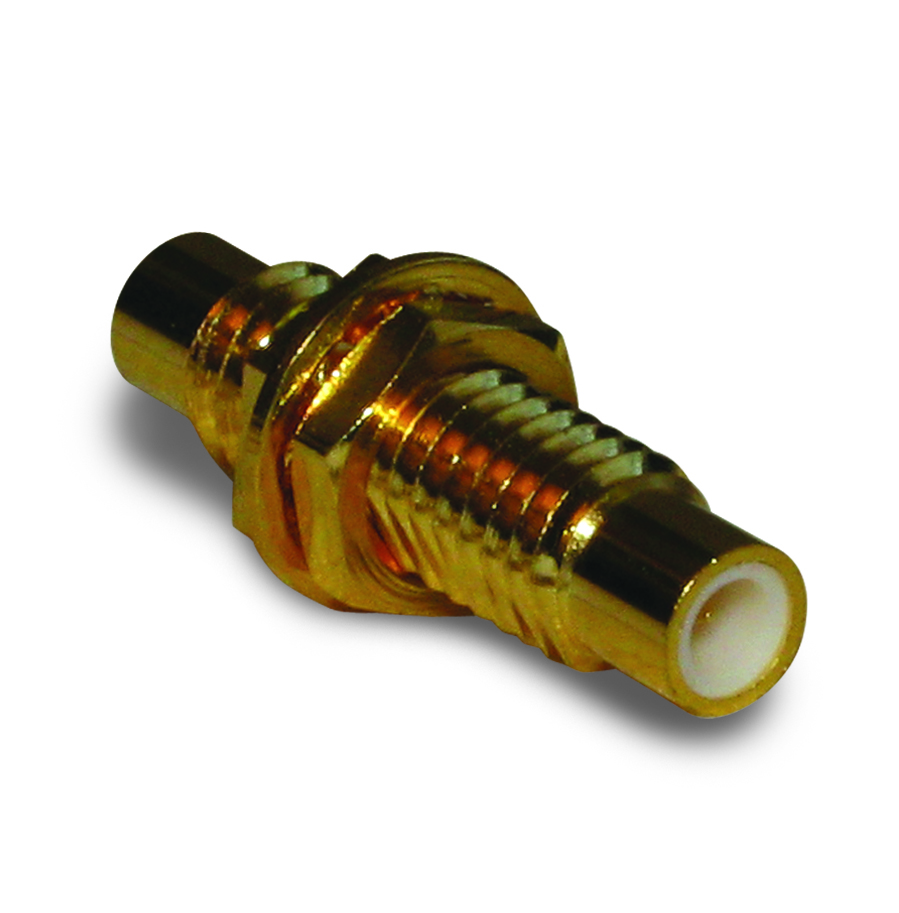

SMC Jack to SMC Jack Adapter 50 Ohm Straight Bulkhead
152145
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Adapter Configuration |
SMC Jack to SMC Jack
|
|
| Adapter Type |
In-Series
|
|
| Body Finish |
Gold
|
|
| Body Material |
Brass
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Brass
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
10
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Bulkhead
|
|
| PFAS |
Contains PFAS
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Unit Weight (Grams) |
1.700
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
| 152145 PDF Customer Drawing (Size: 59.3 KB) | pdf |
5/28/2021 |
|
152145 STP 3D Model
(Size: 1 MB)
|
stp |
11/11/2025 |
