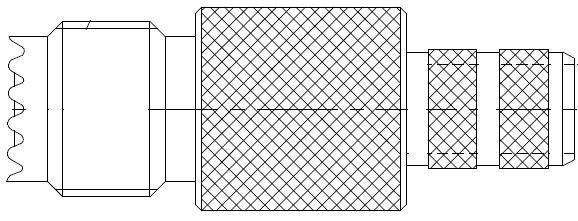

Mini-UHF Straight Crimp Jack RG-8X Times LMR-240 Optimized 50 Ohm
182308
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Cable Group |
X
|
|
| Cable Type (Terminates To) |
RG-8X, Times LMR-240, Times LMR-240 UltraFlex, Belden 9258
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Phosphor Bronze
|
|
| Contact Termination |
Crimp
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
2.5
|
|
| Gender |
Jack
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Miniature
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
Cable - Crimp
|
|
| Thread Direction |
Standard
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| Assembly instructions 3 Pc Crimp - Crimp (Size: 43.8 KB) | pdf |
12/9/2022 |
| 182308 PDF Customer Drawing (Size: 64.8 KB) | pdf |
5/28/2021 |
