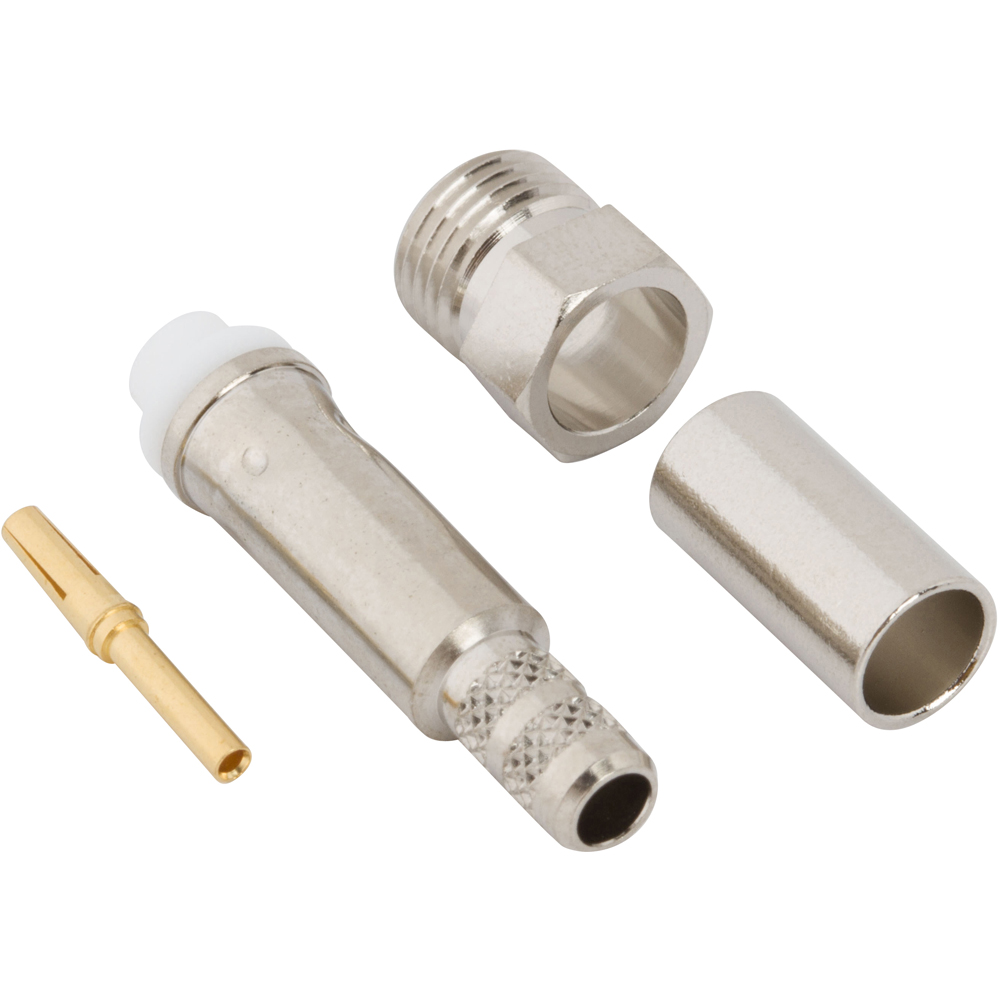

FME Straight Crimp Jack RG-58 RG-141 Times LMR-195 50 Ohm
192102T
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Cable Group |
C
|
|
| Cable Type (Terminates To) |
RG-58, RG-141, Times LMR-195, Times LMR-200-LLPL, Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Phosphor Bronze
|
|
| Contact Termination |
Crimp
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Push-on
|
|
| ECCN |
EAR99
|
|
| Gender |
Jack
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Miniature
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
Cable - Crimp
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
2.820
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| 192102T PDF Customer Drawing (Size: 68.7 KB) | pdf |
5/28/2021 |
