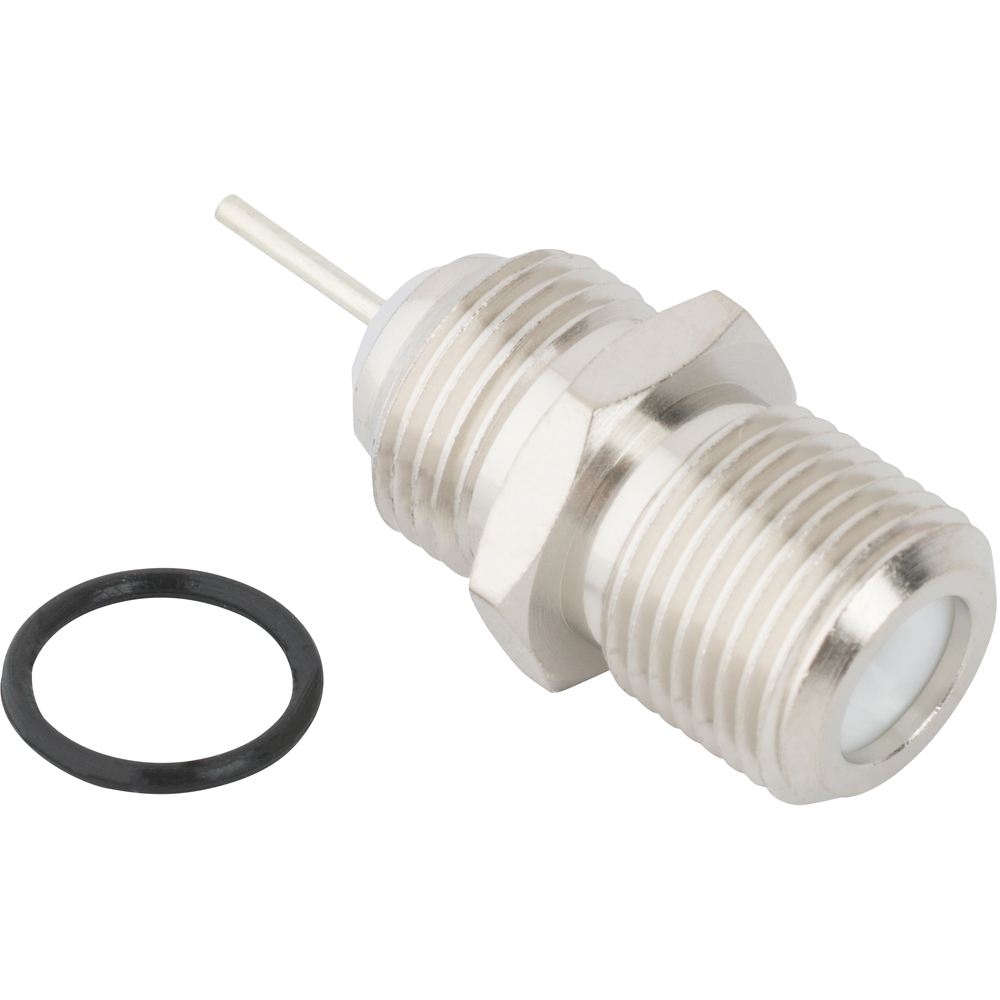

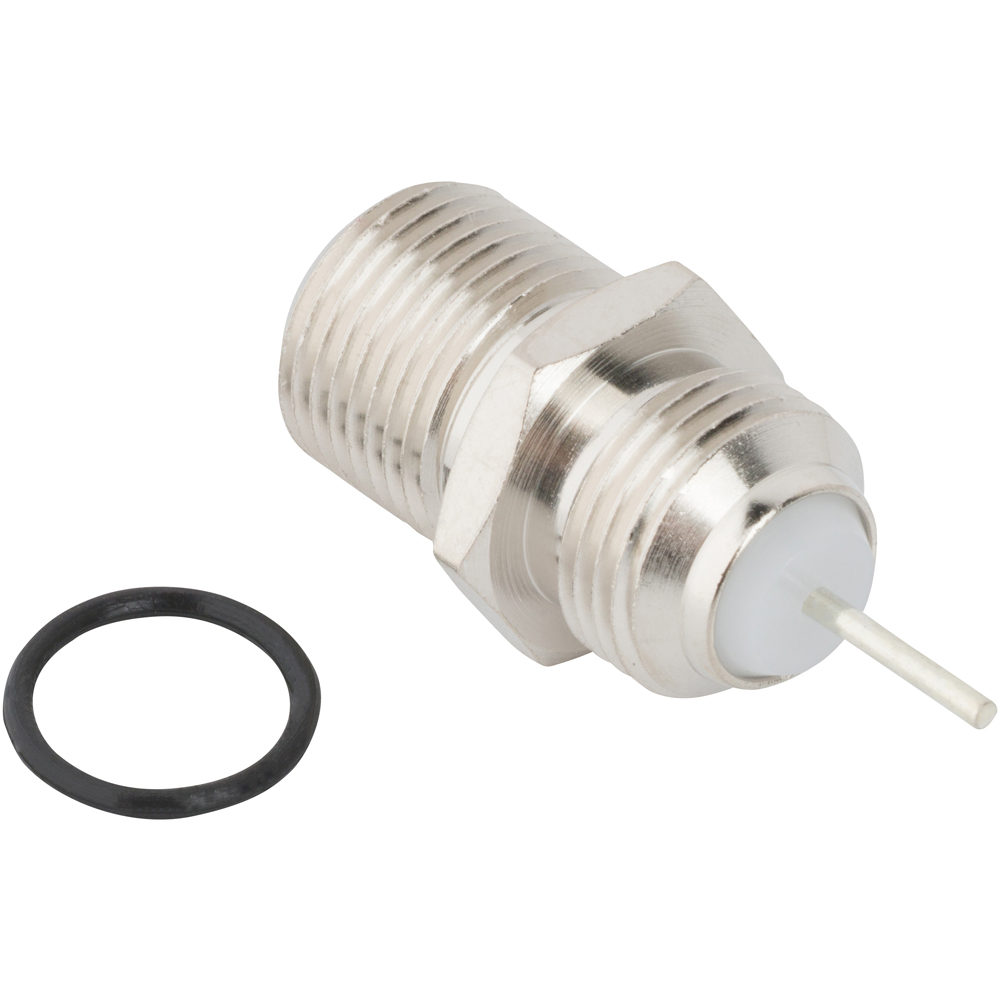

F-Type Straight Receptacle Jack Round Post Round Flange 75 Ohm
222144
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Contact Finish |
Bright Tin
|
|
| Contact Material |
Brass
|
|
| Contact Termination |
Solder
|
|
| Country of Origin |
TW
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
2
|
|
| Gender |
Jack
|
|
| HTS Code |
8538.90.8140
|
|
| Impedance (Ohms) |
75
|
|
| Insulator Material |
Delrin
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Round Flange
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Miniature
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
Round Post
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
7.150
|
|
