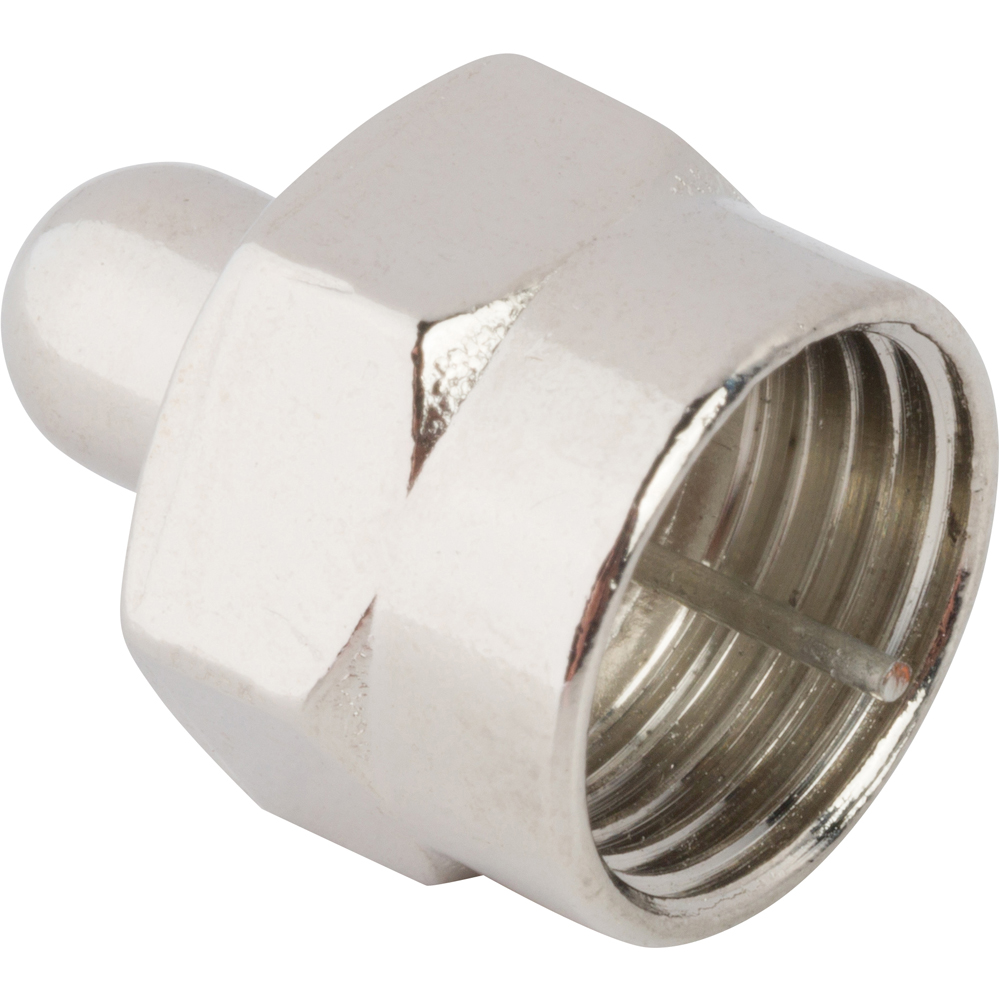

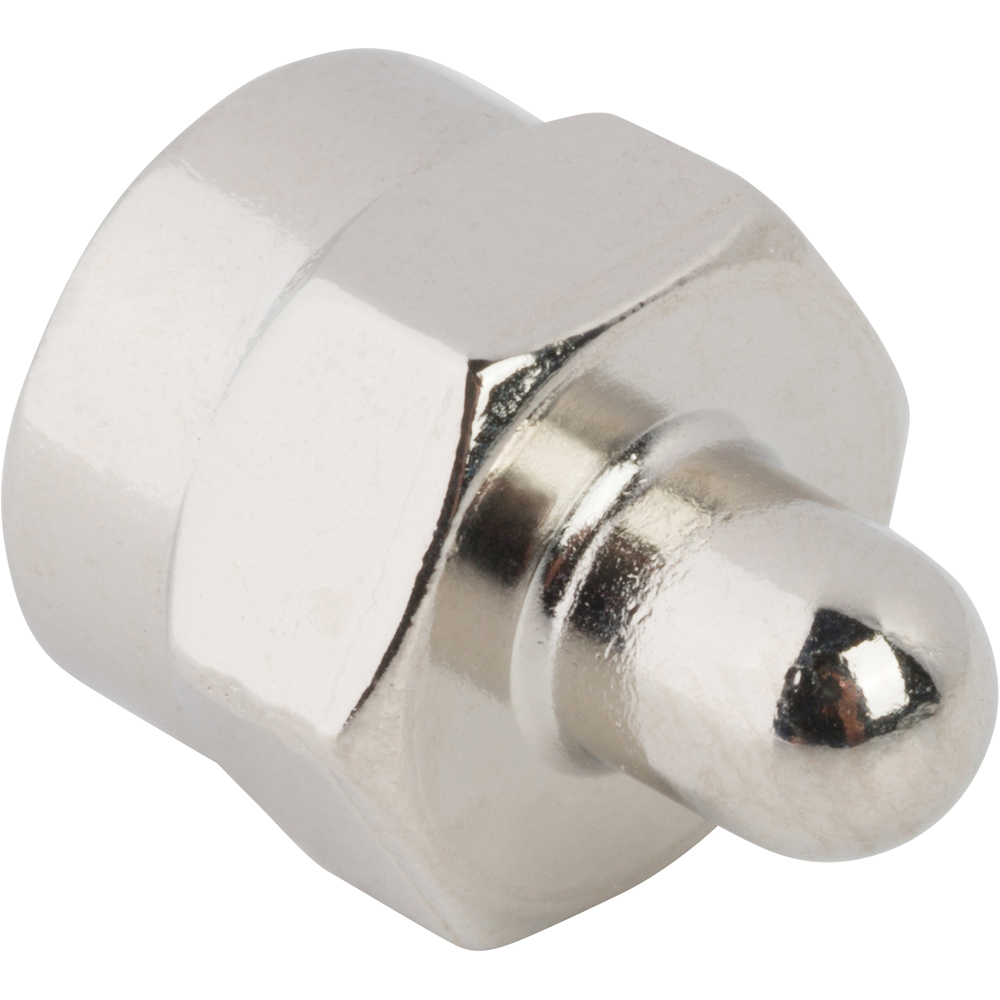

F-Type Terminator Plug 0.125 Watt 75 Ohm
222154
Part Status:
Obsolete - With Replacement
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Nickel
|
|
| Body Material |
Zinc Diecast
|
|
| Chain |
Without Chain
|
|
| Contact Finish |
Nickel
|
|
| Contact Material |
Stainless Steel
|
|
| Country of Origin |
TW
|
|
| ECCN |
EAR99
|
|
| Gender |
Plug
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
75
|
|
| Insulator Material |
Delrin
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Power (Max Watts) |
0.125
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Unit Weight (Grams) |
3.330
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| 222154 PDF Customer Drawing (Size: 39.4 KB) | pdf |
8/7/2019 |
