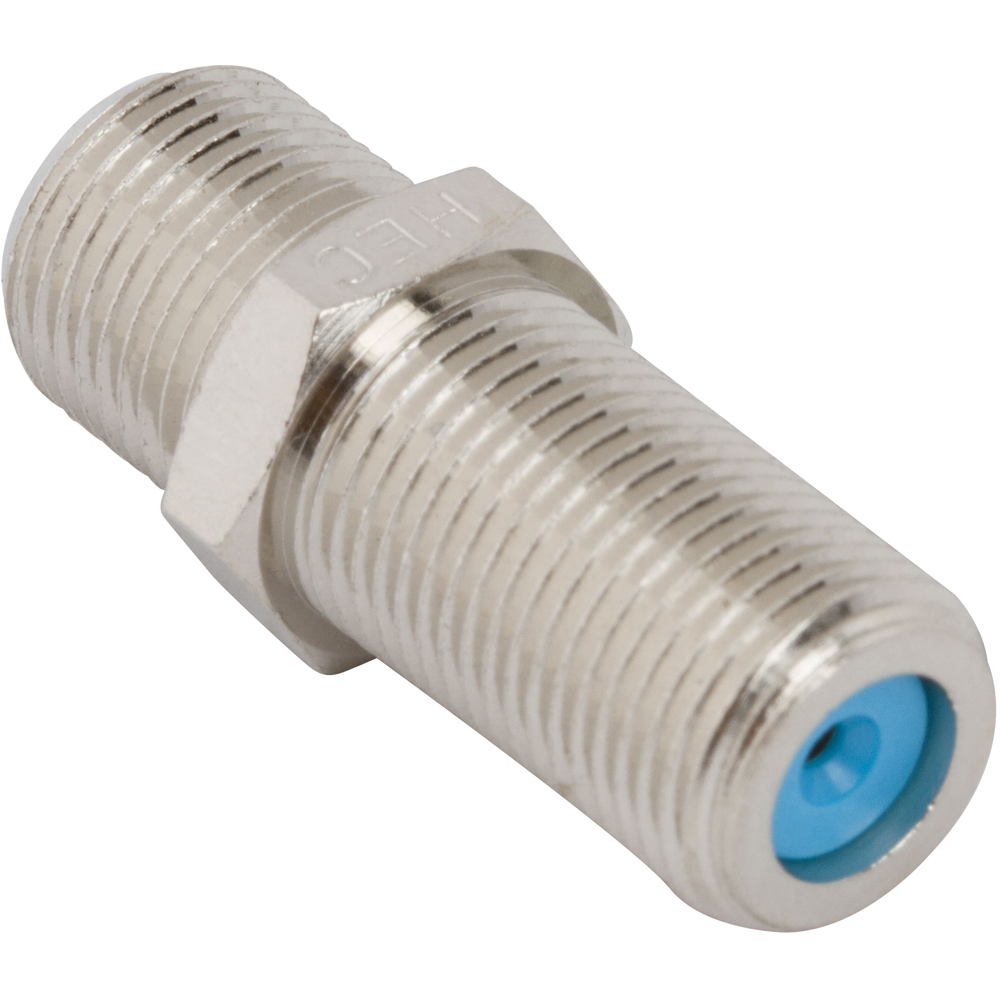

F-Type Jack to F-Type Jack Adapter 75 Ohm Straight
222G-F81F
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Adapter Configuration |
F-Type Jack to F-Type Jack
|
|
| Adapter Type |
In-Series
|
|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Beryllium Copper
|
|
| Country of Origin |
TW
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
2
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
75
|
|
| Insulator Material |
Delrin
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| 222G-F81F PDF Customer Drawing (Size: 37.2 KB) | pdf |
7/22/2019 |
