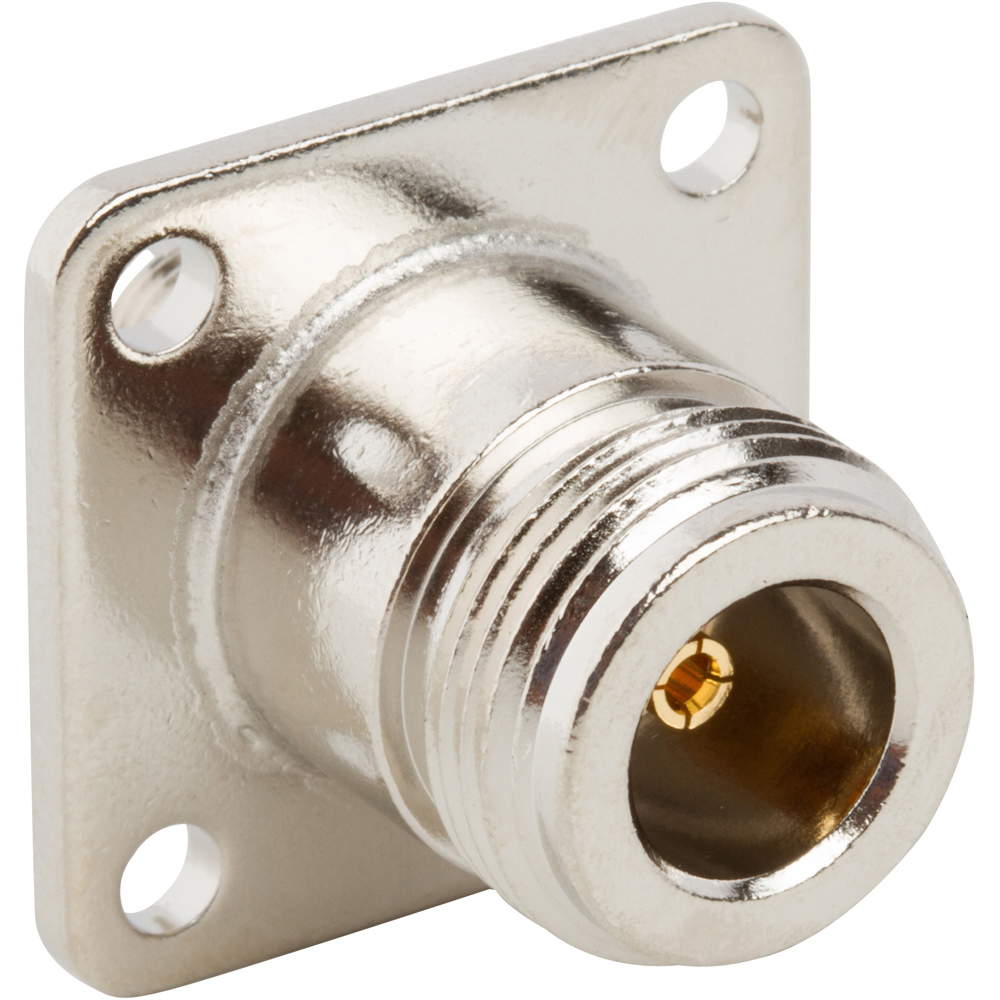

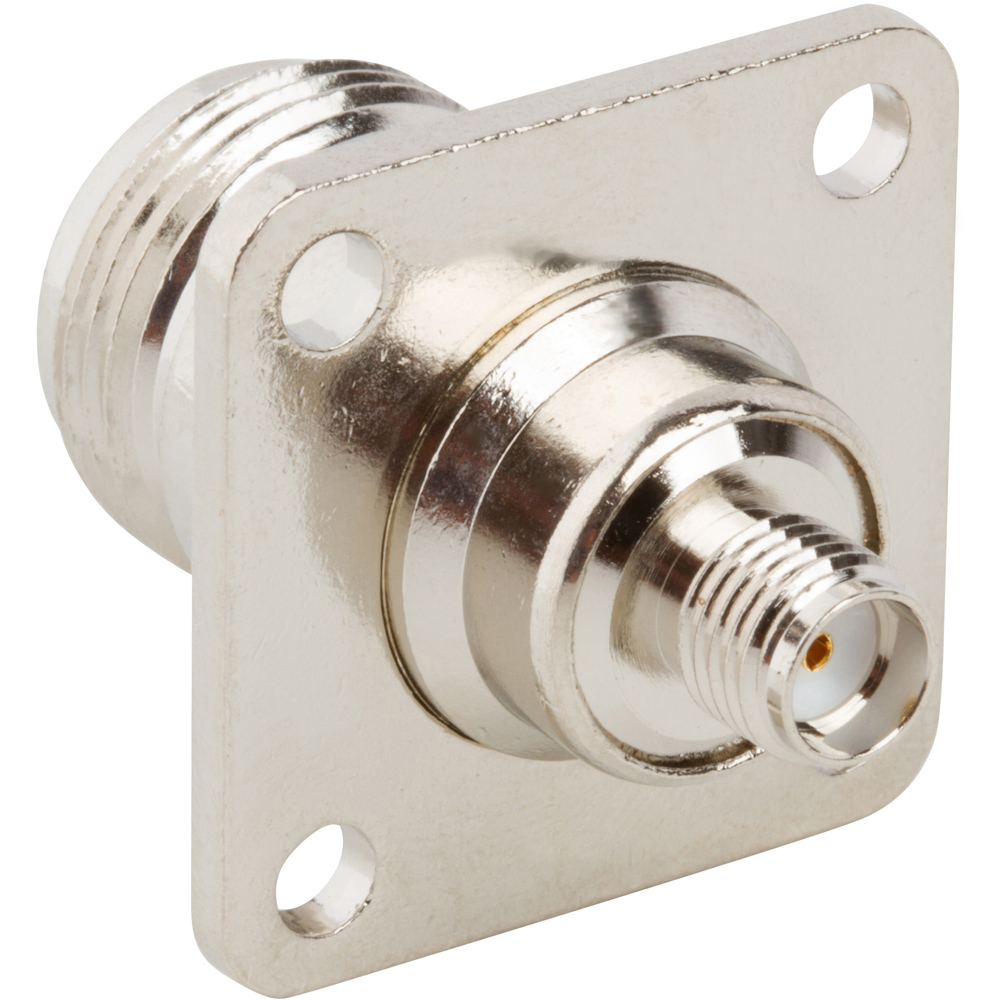

N-Type Jack to SMA Jack Adapter 50 Ohm Straight 4-Hole Flange
242163
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Adapter Configuration |
N-Type Jack to SMA Jack
|
|
| Adapter Type |
Between-Series
|
|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Phosphor Bronze
|
|
| Country of Origin |
VN
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
11
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
4-Hole Flange
|
|
| PFAS |
Contains PFAS
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Unit Weight (Grams) |
32.900
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
|
242163 STP 3D Model
(Size: 630.6 KB)
|
stp |
11/11/2025 |
| 242163 PDF Customer Drawing (Size: 59.6 KB) | pdf |
8/7/2019 |
