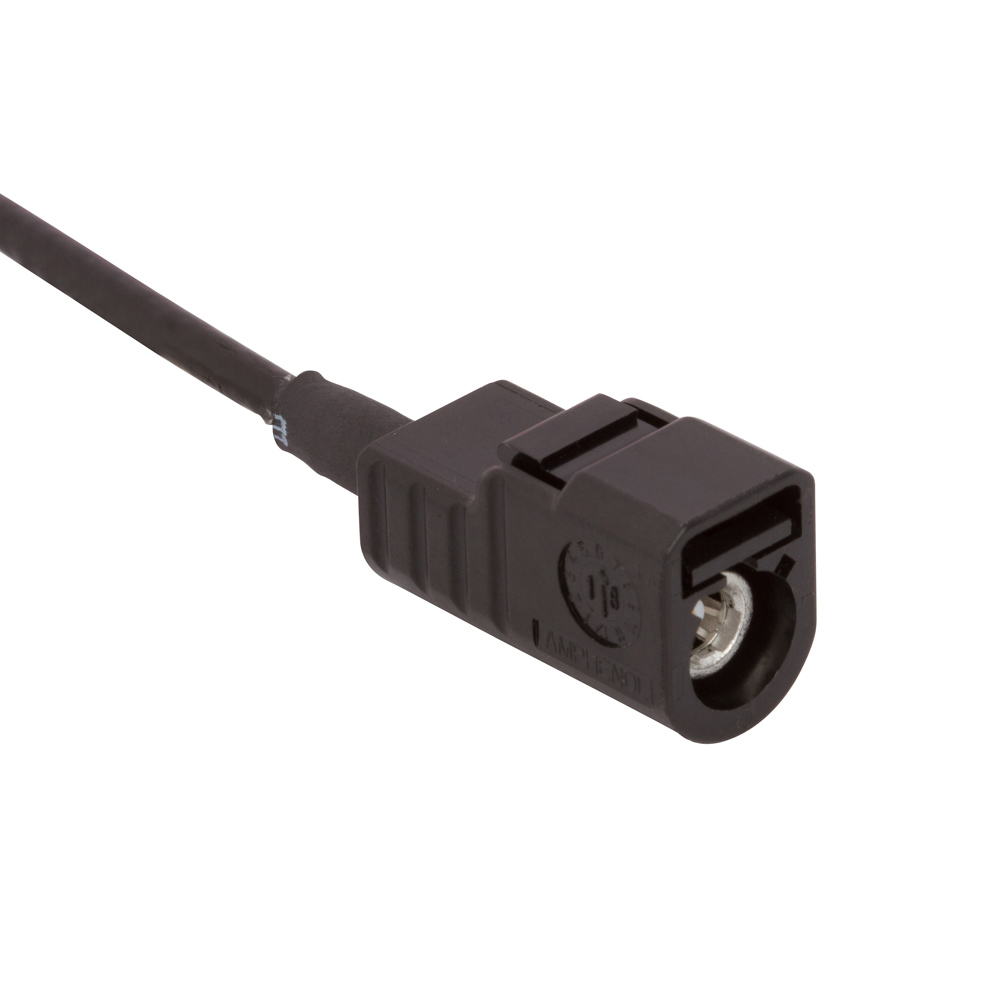

FAKRA GEN 3 Straight Crimp Jack RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm Low Profile With Clip IP67 A Key Code
3FA1ENASJ-C01ES
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Applications |
Waterproof IP Rated
|
|
| Body Finish |
Nickel/Tin
|
|
| Body Material |
Phosphor Bronze
|
|
| Cable Group |
B
|
|
| Cable Type (Terminates To) |
RG-174, RG-188, RG-316, Times LMR-100A, Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Times RG-174LL, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Leoni DACAR 462, Leoni DACAR 462-2
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Phosphor Bronze
|
|
| Contact Termination |
Crimp
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Push-on
|
|
| ECCN |
EAR99
|
|
| FAKRA Generation |
3
|
|
| FAKRA Keycode |
A - Jet Black
|
|
| Frequency (Max GHz) |
3
|
|
| Gender |
Jack
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PBT
|
|
| IP Rating |
IP67
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
100
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Subminiature
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
Cable - Crimp
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
3.897
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| Automotive Solution Guide (Size: 19.6 MB) | pdf |
6/30/2025 |
| 349-50910 Assembly Instructions (Size: 337.8 KB) | pdf |
3/25/2025 |
| 3FA1ENXSJ-C01ES PDF Customer Drawing (Size: 323 KB) | pdf |
5/28/2021 |
