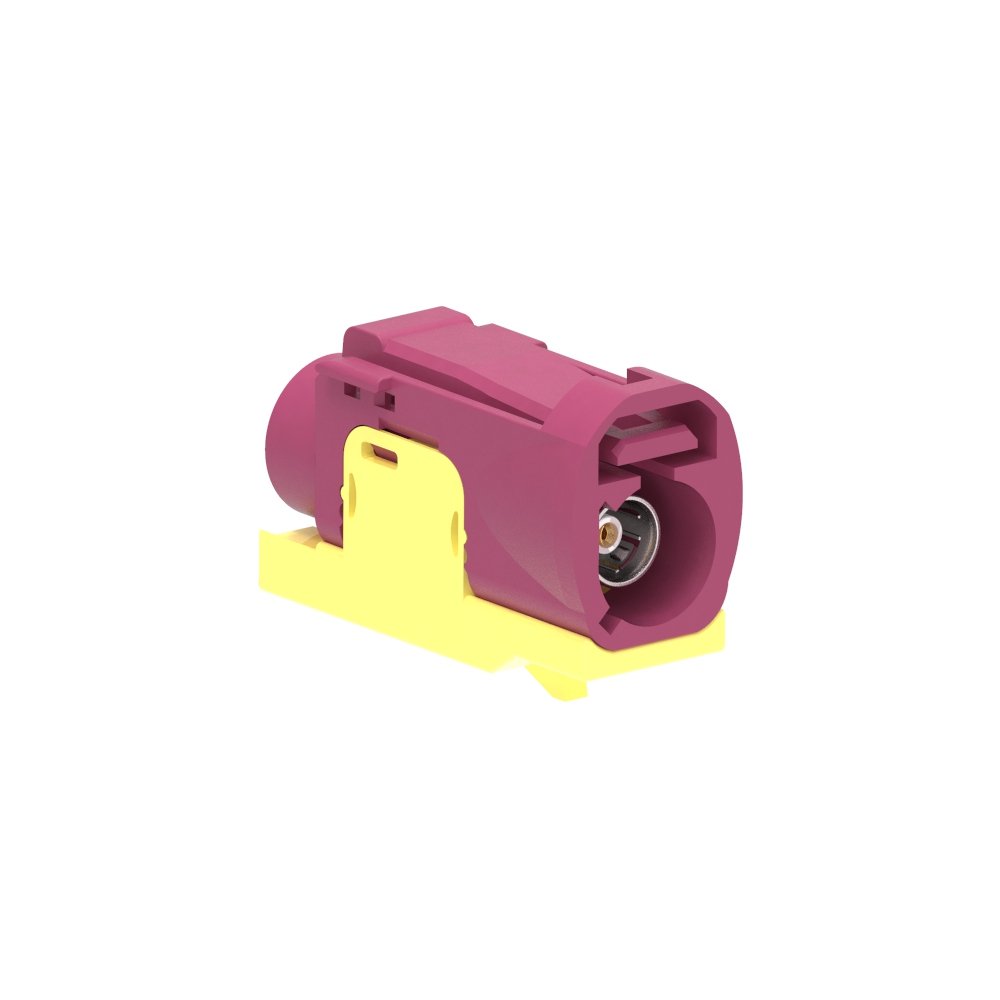

FAKRA GEN 4 Single Straight Jack TFC-302LL RTK 031 DACAR 302 H Key Code
4FA1-NHSJAC30W6
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Tin
|
|
| Body Material |
Phosphor Bronze
|
|
| Cable Group |
C30
|
|
| Cable Type (Terminates To) |
DACAR 302, RTK 031, TFC 302LL
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Copper Alloy
|
|
| Contact Termination |
Crimp
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Push-on
|
|
| ECCN |
EAR99
|
|
| FAKRA Generation |
4
|
|
| FAKRA Keycode |
H - Heather Violet
|
|
| Frequency (Max GHz) |
3
|
|
| Gender |
Jack
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PA
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
100
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Subminiature
|
|
| Temp (Max Degrees Celsius) |
105
|
|
| Temp (Min Degrees Celsius) |
40
|
|
| Termination Style |
Cable - Crimp
|
|
