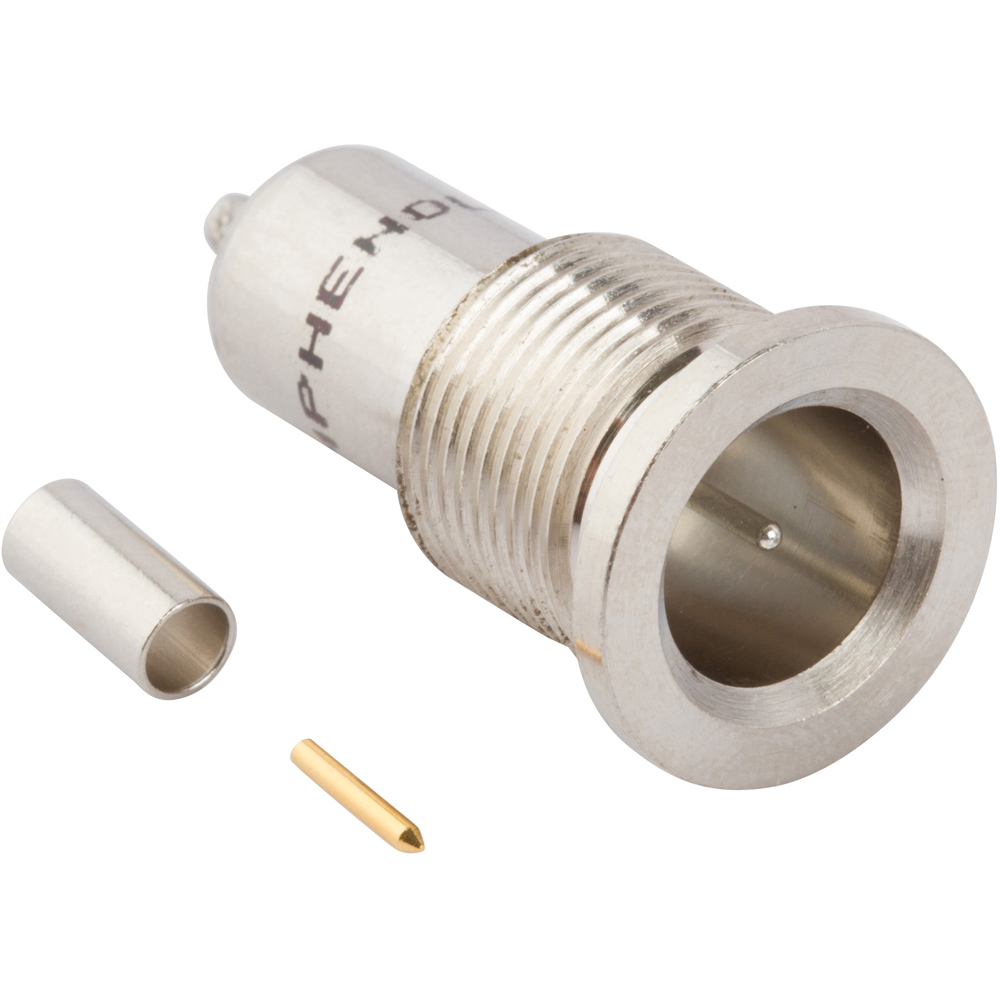

G-Type Straight Crimp Plug RG-179 Belden 179DT Bulkhead Front Mount 75 Ohm
531-40088
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Applications |
Tamper Resistant
|
|
| Assembly Tool |
CTL-2
|
|
| Body Finish |
Nickel
|
|
| Body Material |
Brass
|
|
| Cable Group |
S
|
|
| Cable Type (Terminates To) |
RG-161, RG-179, RG-187, Belden 179DT, Belden 1520A, Belden 1521A, Belden 1522A, Belden 9221
|
|
| Contact Finish |
Tin
|
|
| Contact Material |
Beryllium Copper
|
|
| Contact Termination |
Solder
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Push-Pull
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
3
|
|
| Gender |
Plug
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
75
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
100
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Bulkhead - Front Mount
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Miniature
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Termination Style |
Cable - Crimp
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
| Assembly Instructions C26a (Size: 34.1 KB) | pdf |
3/25/2025 |
| 531-40088 PDF Customer Drawing (Size: 191.7 KB) | pdf |
5/28/2021 |
|
531-40088 STP 3D Model
(Size: 560 KB)
|
stp |
11/11/2025 |
