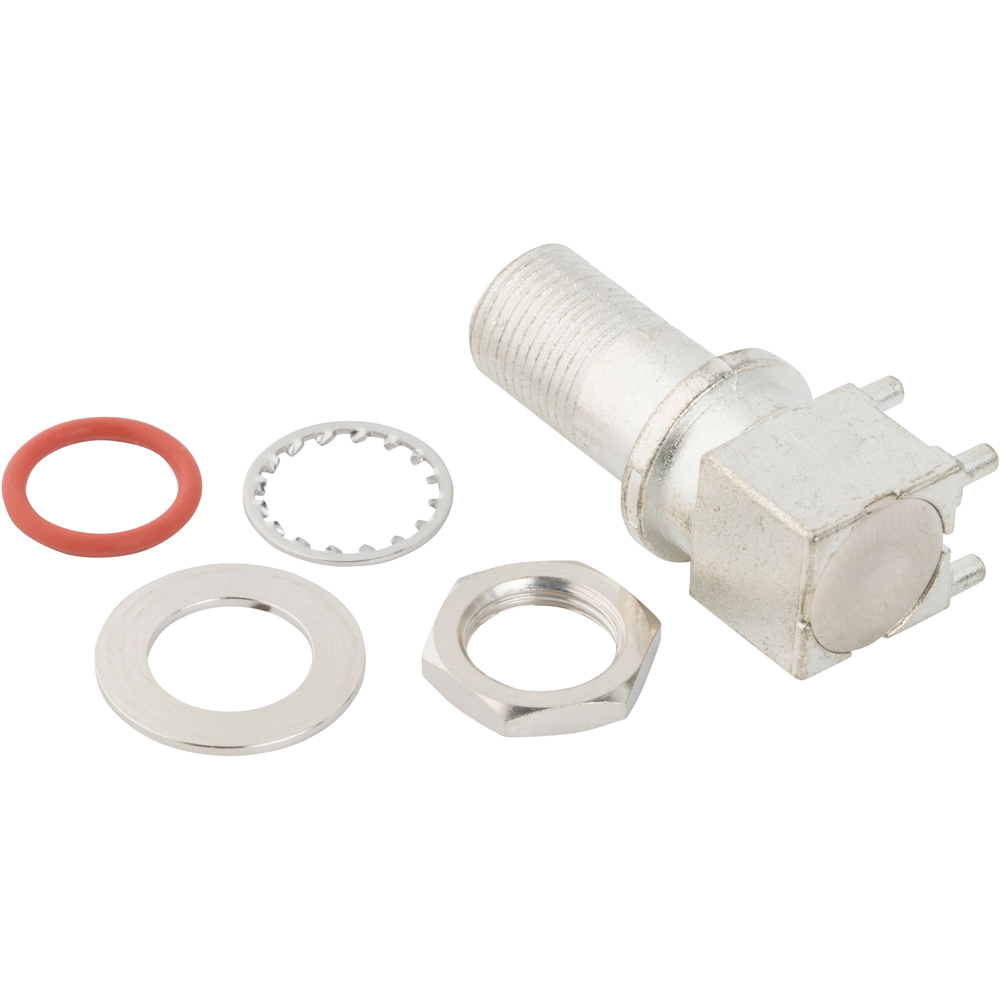

F-Type Right Angle PCB Jack Through Hole Bulkhead Rear Mount 75 Ohm
531-40165
Part Status:
Obsolete - With Replacement
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Tin
|
|
| Body Material |
Zinc Diecast
|
|
| Contact Finish |
Tin
|
|
| Contact Material |
Phosphor Bronze
|
|
| Contact Termination |
Solder
|
|
| Country of Origin |
MX
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
2.15
|
|
| Gender |
Jack
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
75
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
100
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Right Angle
|
|
| Panel Mounting Feature |
Bulkhead - Rear Mount
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Miniature
|
|
| Temp (Max Degrees Celsius) |
85
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
PCB - Through Hole
|
|
| Thread Direction |
Standard
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
| 531-40165 PDF Customer Drawing (Size: 304.8 KB) | pdf |
5/28/2021 |
|
531-40165 IGS 3D Model
(Size: 1.4 MB)
|
igs |
11/11/2025 |
