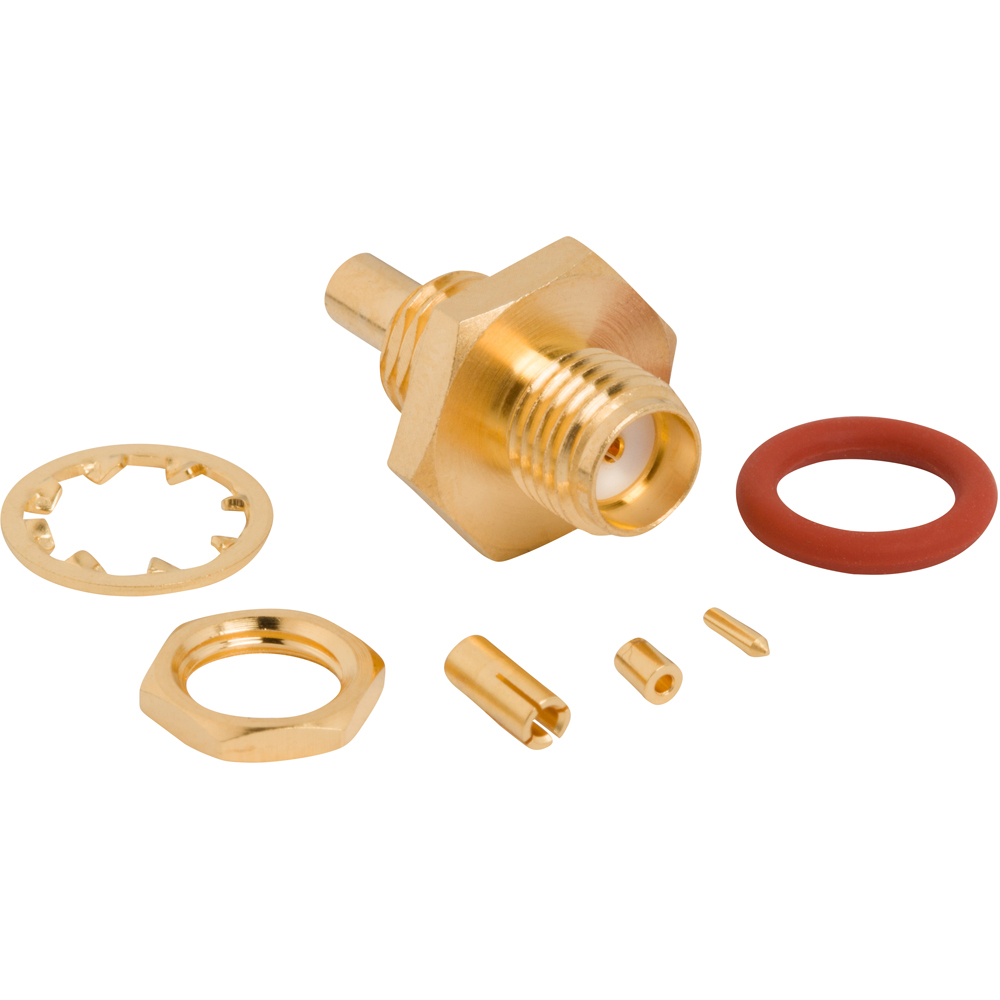

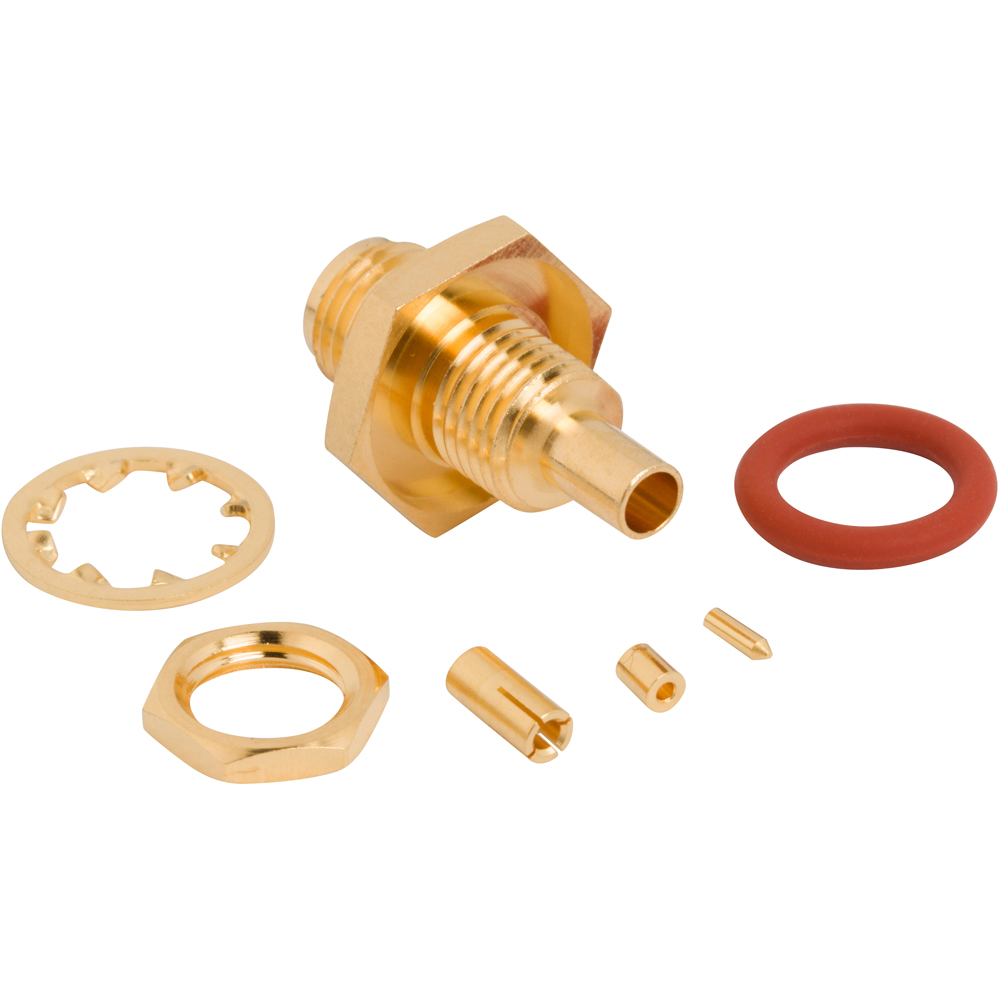

SMA Straight Jack Bulkhead 1.13 mm Micro-cable 50 Ohm
901-10754
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Applications |
Tamper Resistant
|
|
| Body Finish |
Gold
|
|
| Body Material |
Brass
|
|
| Cable Group |
P2
|
|
| Cable Type (Terminates To) |
1.13 mm Micro-cable
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Beryllium Copper
|
|
| Contact Termination |
Solder
|
|
| Country of Origin |
VN
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
6
|
|
| Gender |
Jack
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Bulkhead - Front Mount
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Subminiature
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Termination Style |
Cable - Crimp
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
3.430
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| SMA Panel Mount Bulkhead Jacks (Size: 169.4 KB) | pdf |
3/25/2025 |
| 901-10754 Customer Drawing (Size: 144.8 KB) | pdf |
11/19/2021 |
