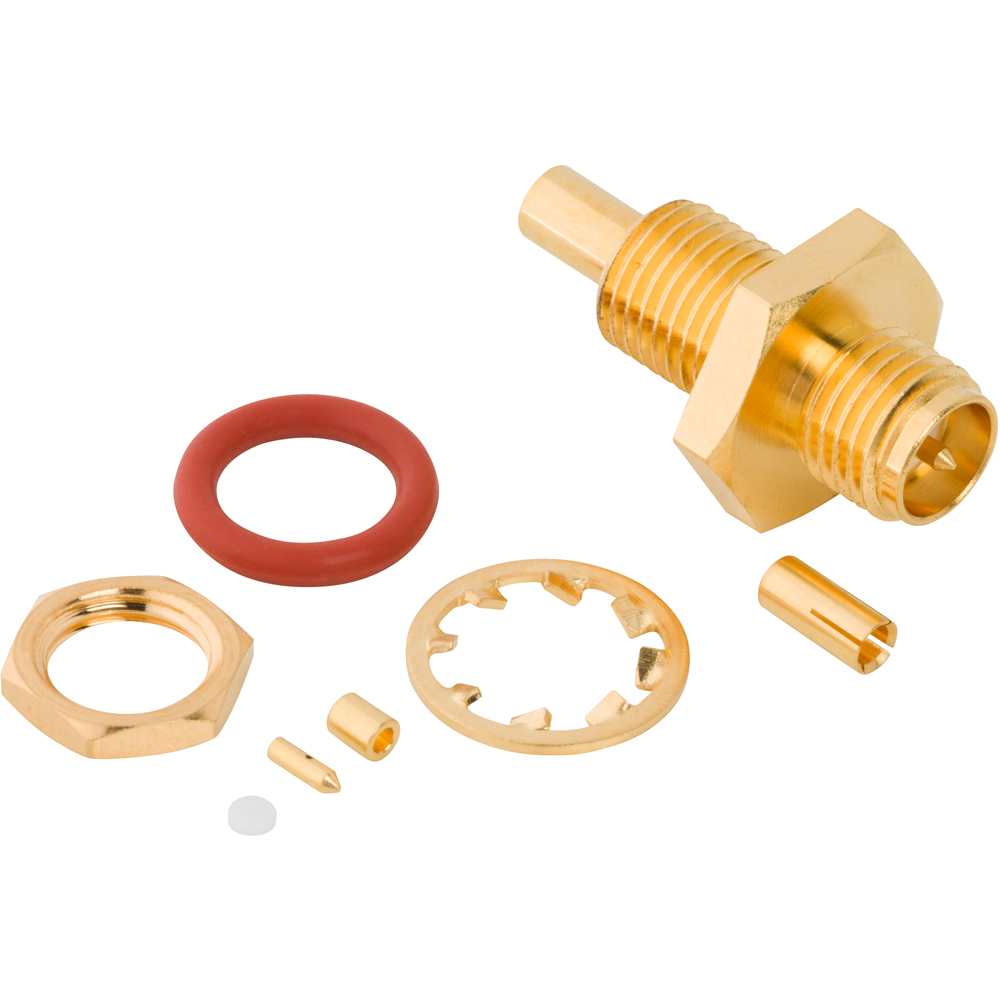

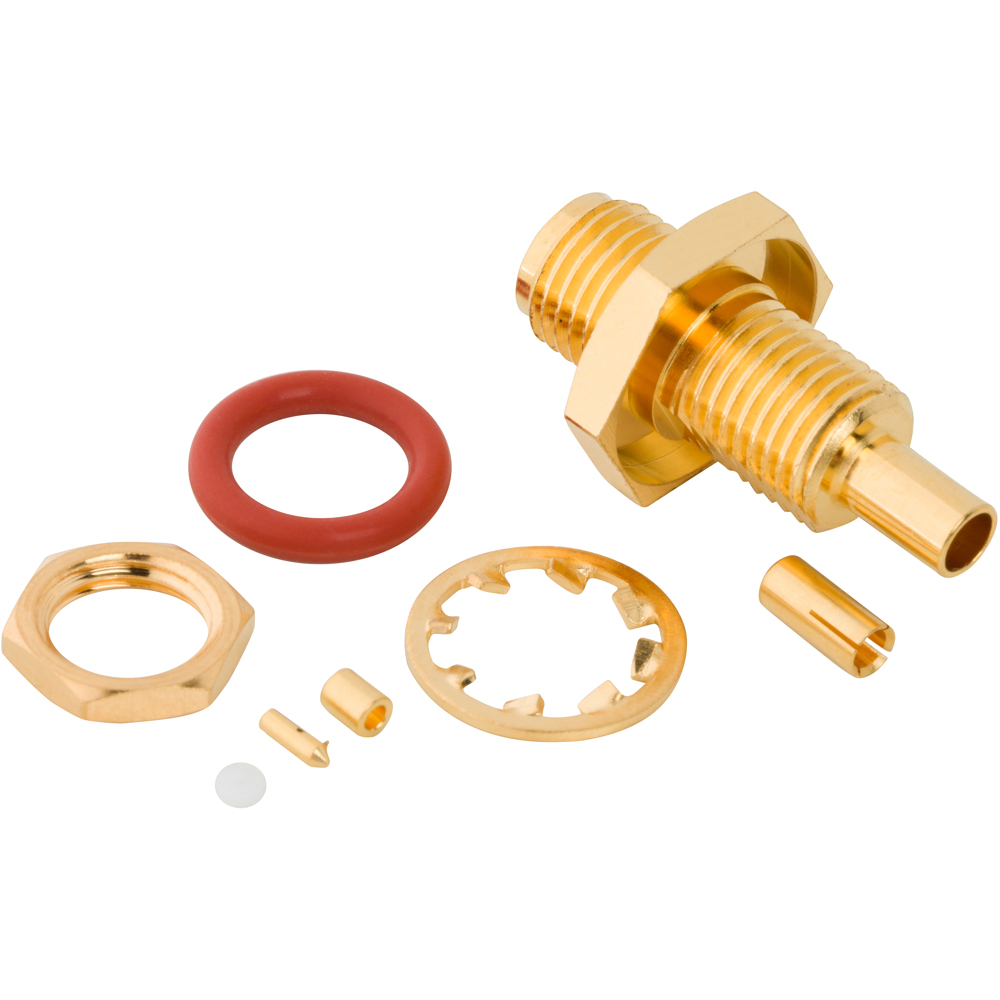

RP SMA Straight Crimp Jack Bulkhead 1.37 mm Micro-cable 50 Ohm IP67
901-10806
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Applications |
Tamper Resistant, Waterproof IP Rated
|
|
| Body Finish |
Gold
|
|
| Body Material |
Brass
|
|
| Cable Group |
P4
|
|
| Cable Type (Terminates To) |
1.37 mm Micro-cable
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Beryllium Copper
|
|
| Contact Termination |
Solder
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Threaded
|
|
| ECCN |
EAR99
|
|
| Gender |
Jack
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
IP67
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
500
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Bulkhead - Front Mount
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Subminiature
|
|
| Termination Style |
Cable - Solder
|
|
| Unit Weight (Grams) |
3.800
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| No value (Size: 318.8 KB) | pdf |
11/7/2025 |
