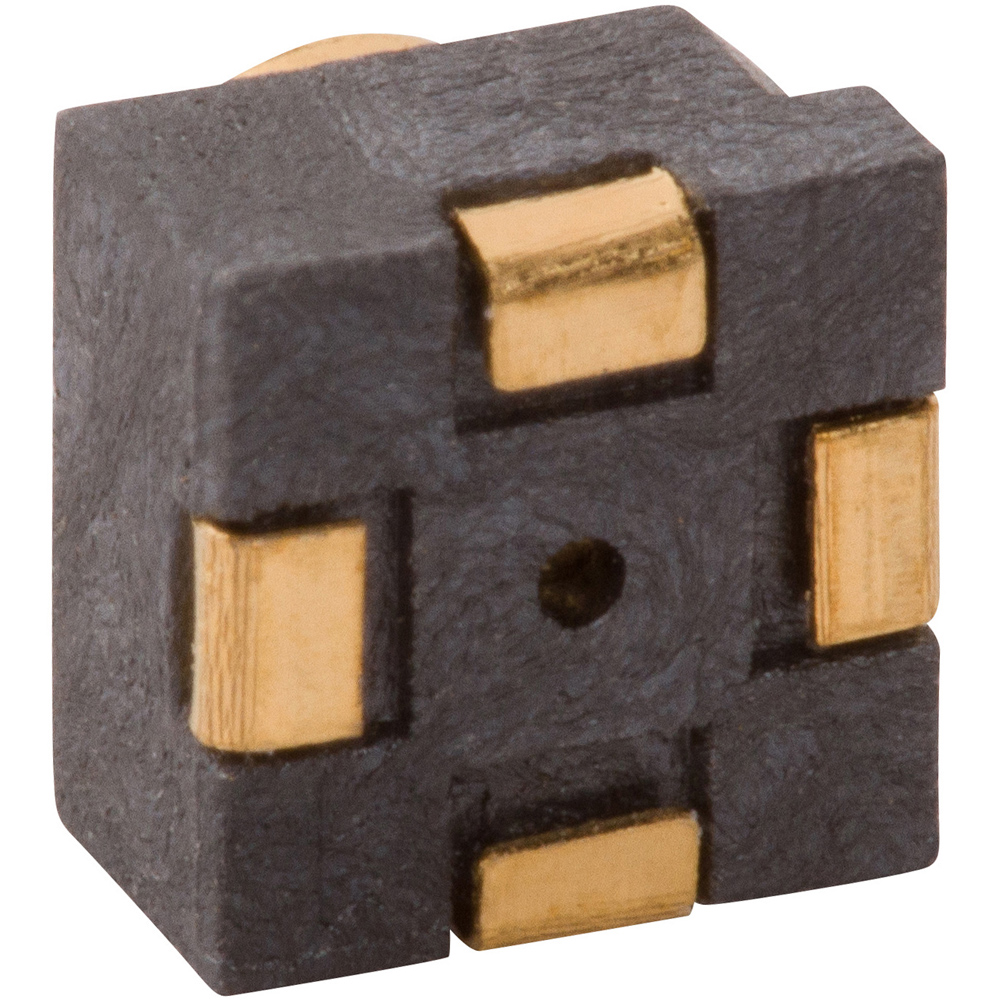

MMCX Straight PCB Jack Surface Mount 50 Ohm

Amphenol RF is pleased to expand our cable assembly portfolio with MMCX cable assemblies designed on ultra-flexible 0.81 mm micro‐coax cable. These 50 ohm assemblies are currently available in a single configuration – MMCX right-angle plug to AMC4 right-angle plug – with additional assemblies being released shortly.

Amphenol RF is pleased to announce the expansion of our cable assembly portfolio with additional BNC to MCX and MMCX configurations.

Amphenol RF is pleased to announce the expansion of our high-performance MMCX product series to include additional cable assembly options.

Amphenol RF expands its pre-configured cable assembly portfolio with new MMCX assemblies engineered to provide dependable connectivity for wireless communication modules.

Amphenol RF's MMCX Cable Assemblies provide broadband performance with low reflections, featuring quick connect/disconnect snap-on mating in a micro-miniature package size. These 50 ohm assemblies, available in various standard lengths, are ideal for applications such as broadband modules, Wi-Fi access points, GPS units, and antennas, offering reliable performance up to 6 GHz.

Amphenol RF's MMCX Ultraminiature Product Series offers 50 ohm connectors and cable assemblies designed for micro-coax cable types, providing broadband performance with low reflection and quick connect/disconnect snap-on mating. These assemblies are ideal for space-constrained applications such as IoT devices, Wi-Fi access points, GPS units, and external antenna connections, with configurations that allow for flexible routing within enclosures.

The Amphenol RF MMCX cable assemblies datasheet outlines pre-configured 50-ohm RF cable solutions using flexible RG-174 coax for reliable connections in wireless communication modules. It highlights available connector configurations, electrical performance characteristics, and suitability for applications such as IoT, GPS, Wi-Fi, and other compact RF systems.
