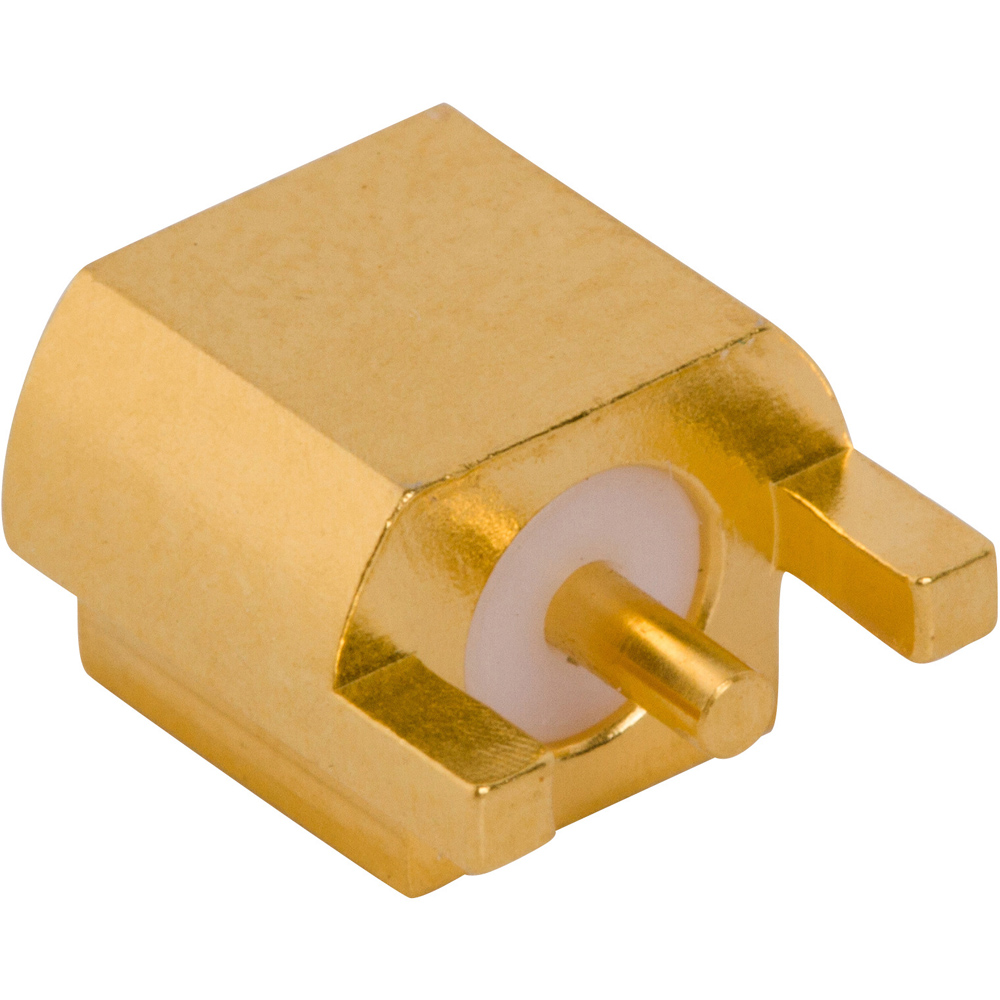

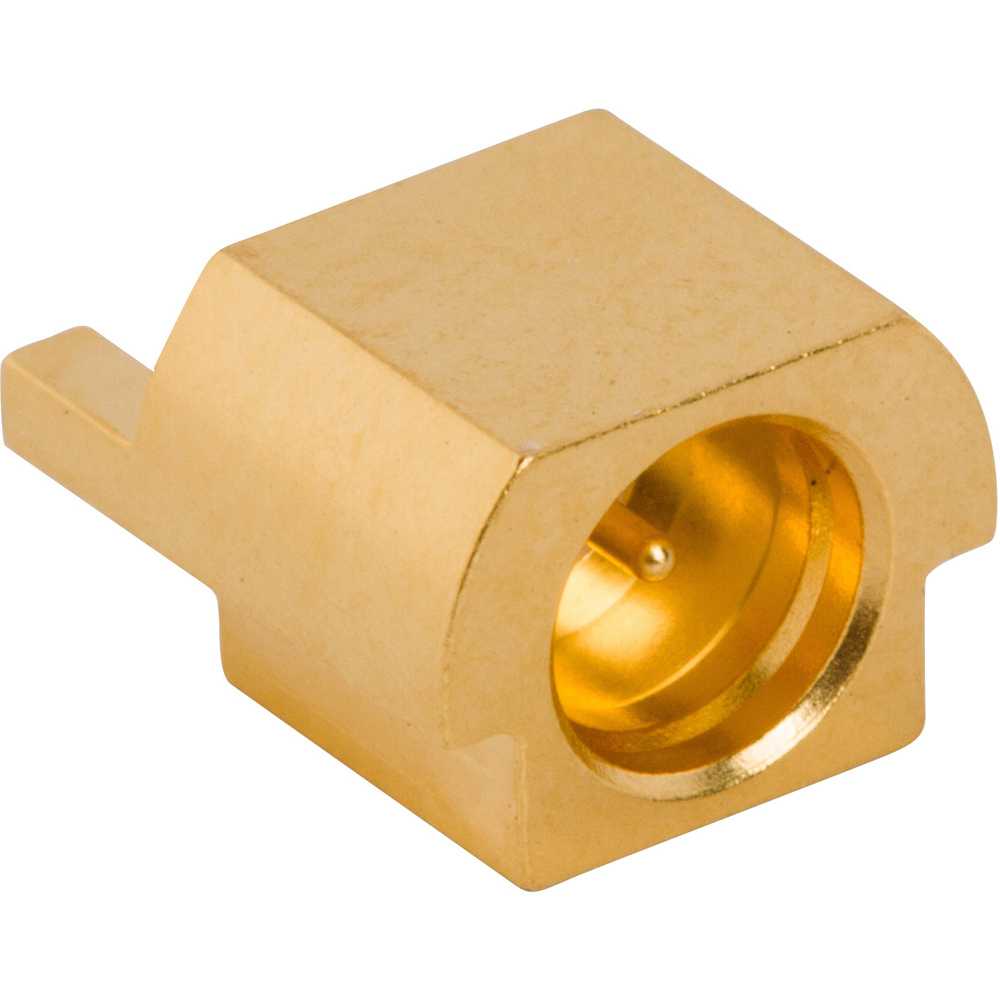

HD-EFI Straight PCB Limited Detent Jack End Launch 50 Ohm

Amphenol RF is proud to announce the expansion of our HD-EFI product line, designed to satisfy the need for a compact RF interconnect solution.

The HD-EFI product series by Amphenol RF offers micro-miniature interfaces designed for high-performance applications with a frequency range from DC to 6 GHz. These 50 ohm products are ideal for board-to-board applications, featuring versatile PCB mounts and bullet lengths, and providing up to 1.4 mm axial and radial float. HD-EFI connectors are available in various configurations, including through-hole, surface mount, edge launch, and thread-in, and support blind mating with crash-proof designs​​.

Amphenol RF's board-to-board solutions provide high-performance interconnect options designed for seamless integration in various applications. These solutions ensure reliable connectivity between PCBs, optimizing space and maintaining signal integrity across different frequencies and environments. The product line includes a variety of connector configurations to meet specific design requirements, supporting a wide range of industries from telecommunications to industrial automation.

The Amphenol RF HD-EFI Product Series Solutions Guide provides an overview of the high-density, board-to-board HD-EFI connector series. It details the compact design, high-frequency performance, and robust mechanical features that make these connectors ideal for automotive, industrial, and wireless applications.
