AUTOMATE Type A Mini-FAKRA Sleeve
923-10829
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Nickel
|
|
| Body Material |
Copper Nickel Alloy
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| Gender |
Not Applicable
|
|
| HTS Code |
8538.90.8180
|
|
| Impedance (Ohms) |
Not Applicable
|
|
| Insulator Material |
Not Applicable
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Unit Weight (Grams) |
0.090
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|

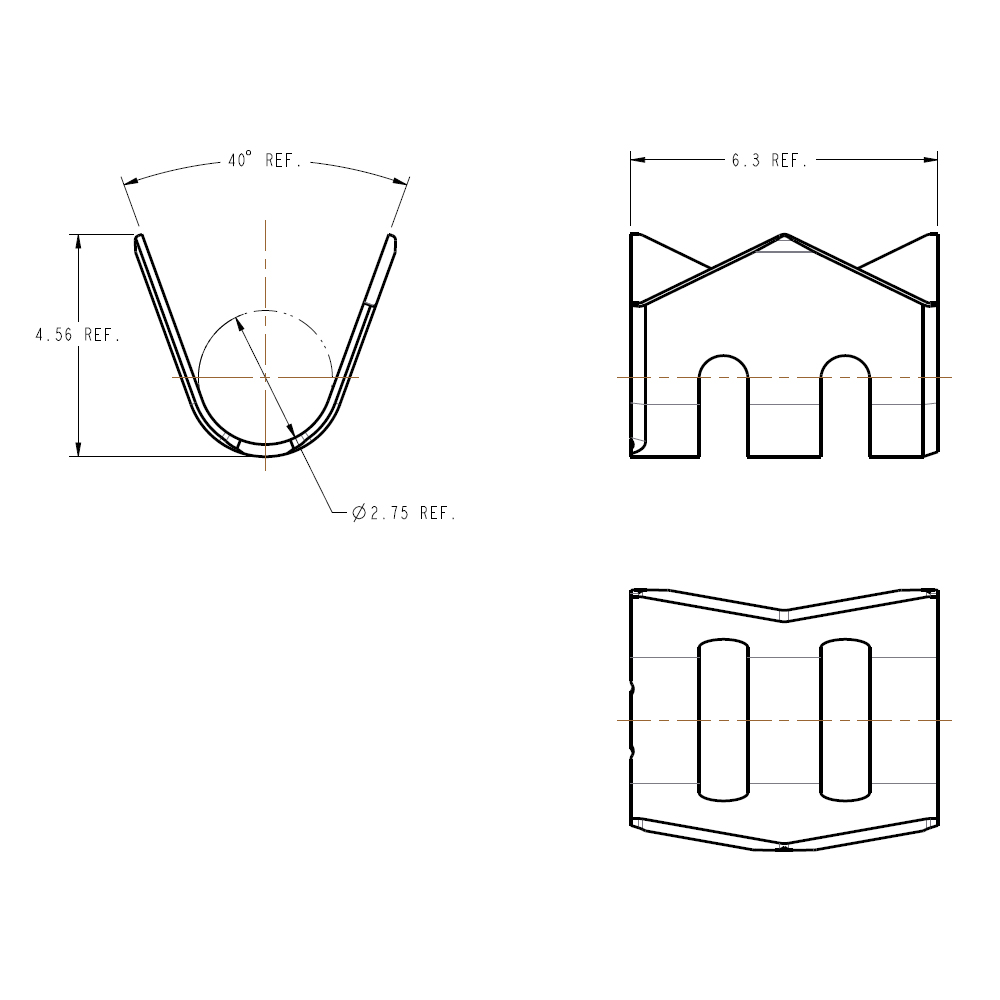

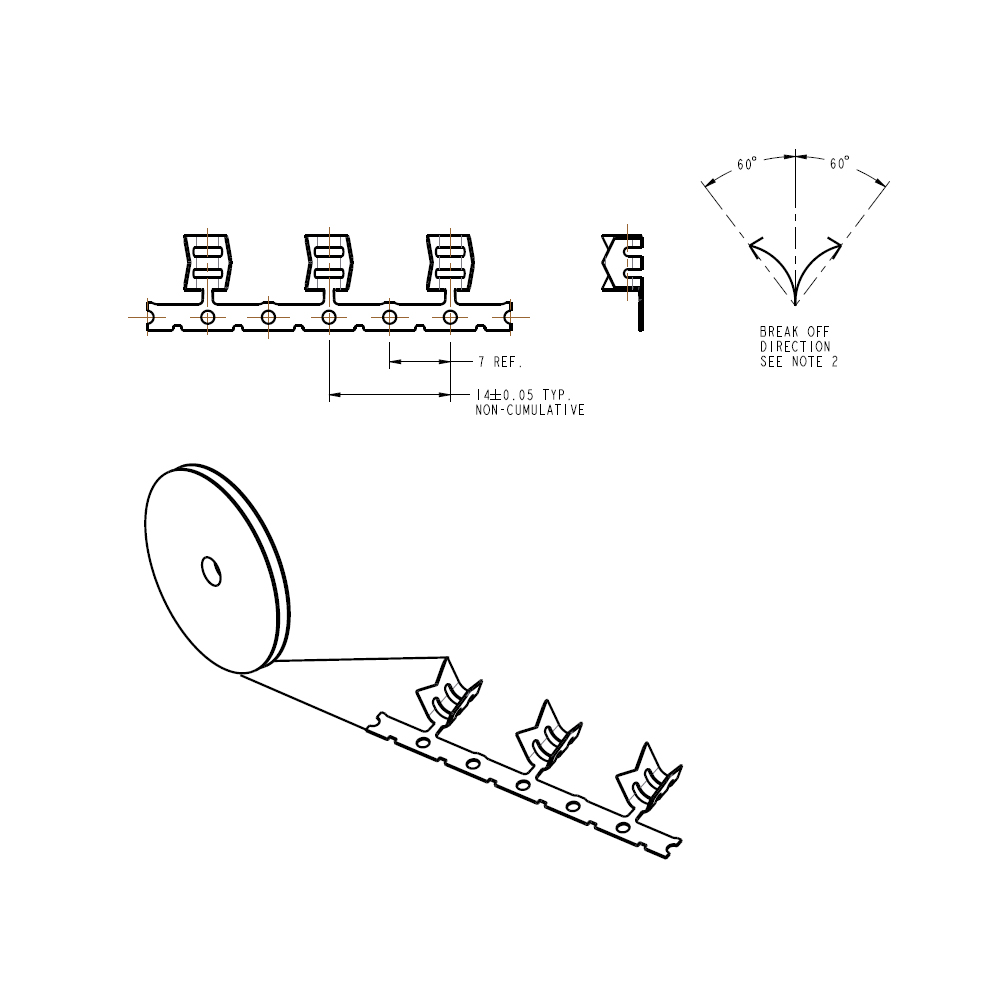

| 923-10829 Customer Drawing (Size: 232.9 KB) | pdf |
5/28/2021 |
Product Compliance
| Document Title | Status | |
|---|---|---|
| RoHS | Compliant with Exemption 6C | |
| California Prop 65 |
