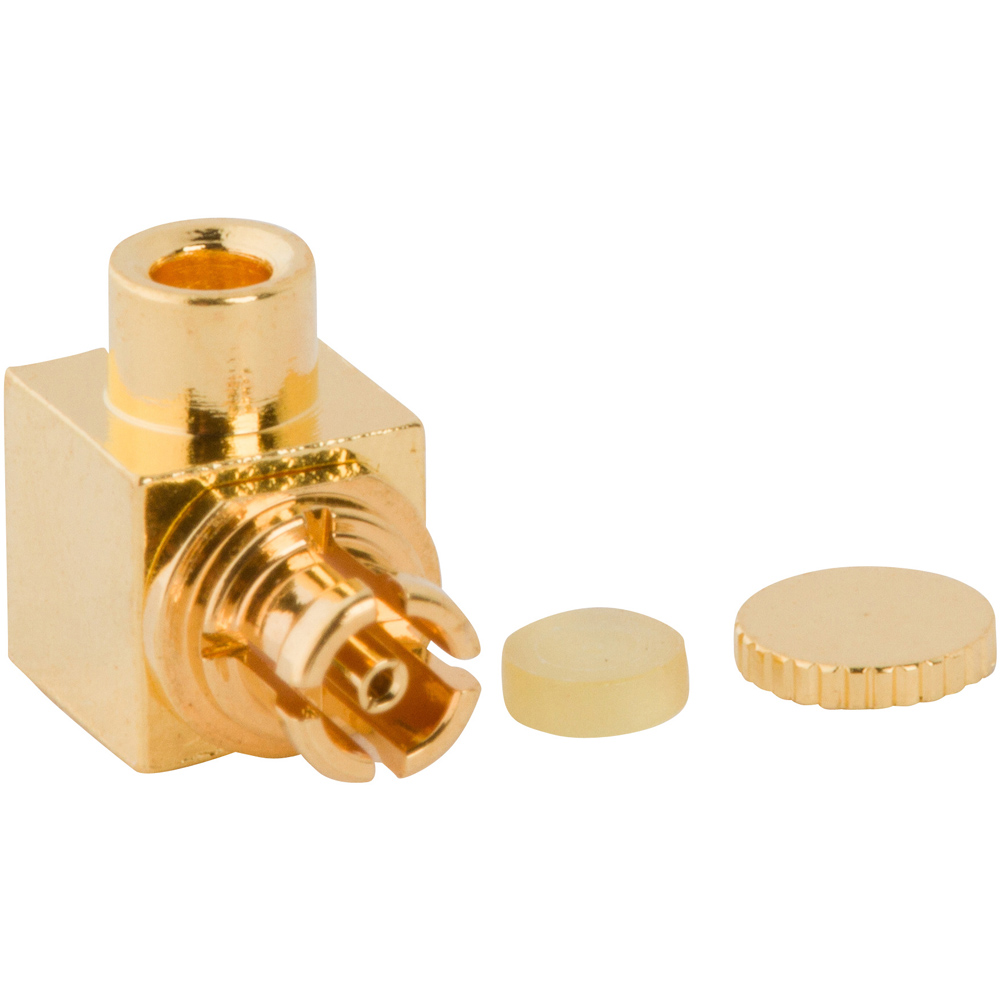

SMPM Right Angle Solder Plug 0.047-inch Conformable 50 Ohm

Amphenol RF is pleased to announce the expansion of our coaxial adapter portfolio with a new SMP straight plug to SMPM straight plug adapter offering high-frequency performance in a low-profile package.

Amphenol RF is pleased to announce the expansion of its high-performance SMPM portfolio with an additional bullet adapter length for increased PCB spacing options. This microminiature product series provides a versatile connectivity solution for board-to-board and cable-to-board designs with reliable electrical performance up to 40 GHz.

Amphenol RF is pleased to introduce the SMPM to SMPM assembly on RG-178 cable into our extensive and diverse portfolio of cable assemblies.

Amphenol RF is pleased to introduce the SMPM Bullet Tool into our growing portfolio of tools designed to make installation and removal processes streamlined.

Amphenol RF is pleased to introduce new non-magnetic SMPM bullet adapters into our extensive adapter portfolio.

Danbury, CT – Amphenol RF is pleased to announce the expansion of our cable assembly portfolio with new cable assemblies engineered with straight SMPM plug connectors on compact 0.047-inch cable.

Amphenol RF is pleased to introduce high-performance SMPM cable assemblies designed on industry‐standard flexible cable types.

Amphenol RF is pleased to introduce additional pre-configured 2.92 mm cable assembly configurations which feature a 2.92 mm connector and the option of an SMP or SMPM connector attached on the opposing end.

Amphenol RF is pleased to announce the expansion of our non-magnetic offerings with new SMPM PCB designs.

The Amphenol RF SMPM Plug to Plug Cable Assemblies datasheet highlights 50 ohm assemblies on conformable and flexible cables, suitable for frequencies from DC to 18 GHz. These micro-miniature, push-on connectors are ideal for high-vibration environments and applications such as antennas, test equipment, military, quantum computing, and radar​​.

The Amphenol RF SMPM Fixed Length Cable Assemblies cut sheet details micro-miniature SMPM plug-to-plug cable assemblies designed for high-frequency applications up to 20 GHz. These assemblies, available in standard lengths from 3 to 48 inches (or 100 to 2000 millimeters), feature conformable semi-rigid cables in .085" and .047" diameters. Ideal for antennas, backplane, broadband, wireless, military, and instrumentation applications, these assemblies offer push-on mating styles and accommodate both radial and axial misalignment​​.

The Amphenol RF SMPM Connector cut sheet highlights micro-miniature connectors with a frequency range of DC to 65 GHz, suitable for high-frequency coaxial applications. These connectors feature push-on and snap-on mating styles, accommodating both radial and axial misalignment, and are ideal for high-vibration environments. Available in various configurations, including surface mount, through-hole, right-angle, and edge mount, SMPM connectors are commonly used in antennas, broadband, military, and instrumentation applications​​.

Amphenol RF's board-to-board solutions provide high-performance interconnect options designed for seamless integration in various applications. These solutions ensure reliable connectivity between PCBs, optimizing space and maintaining signal integrity across different frequencies and environments. The product line includes a variety of connector configurations to meet specific design requirements, supporting a wide range of industries from telecommunications to industrial automation.

The Amphenol RF SMPM Product Series Solutions Guide provides an overview of the compact, high-frequency SMPM connector series. It details their lightweight design, high-density packaging, and superior electrical performance, making them ideal for aerospace, defense, and high-speed communication applications.

Amphenol RF New 2.92 mm Cable Assemblies datasheet with features, benefits, applications, and ordering information.
