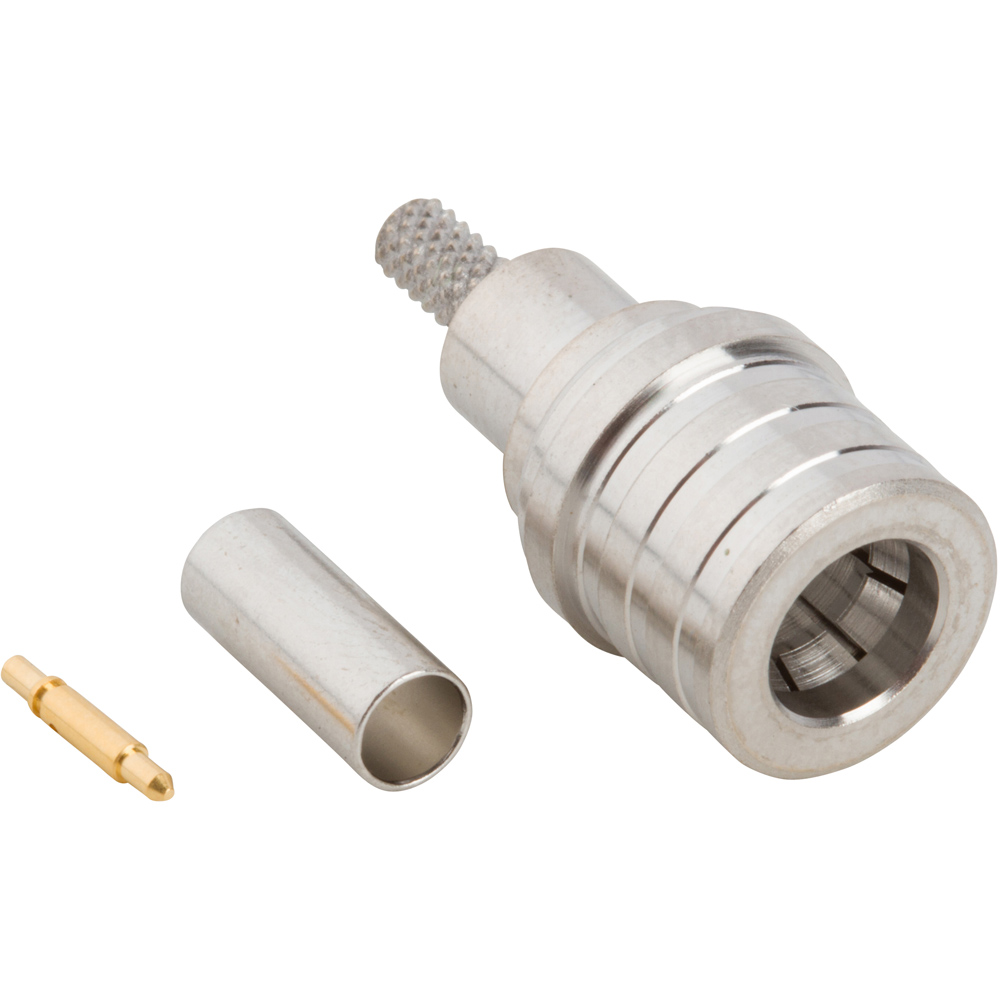

QMA Straight Crimp Plug RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm
930-129P-51S
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Applications |
Quick Locking
|
|
| Assembly Tool |
CTL-2
|
|
| Body Finish |
White Bronze
|
|
| Body Material |
Brass
|
|
| Cable Group |
B
|
|
| Cable Type (Terminates To) |
RG-174, RG-188, RG-316, Times LMR-100A, Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Times RG-174LL, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Leoni DACAR 462, Leoni DACAR 462-2
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Brass
|
|
| Contact Termination |
Crimp
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Quick Lock
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
6
|
|
| Gender |
Plug
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
100
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Subminiature
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Termination Style |
Cable - Crimp
|
|
| Thread Direction |
Standard
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
|
930-129P-51S STP 3D Model
(Size: 405.9 KB)
|
stp |
11/11/2025 |
| Assembly instructions 3 Pc Crimp - Crimp (Size: 43.8 KB) | pdf |
12/9/2022 |
| 930-129P-51S PDF Customer Drawing (Size: 145.1 KB) | pdf |
5/28/2021 |
Product Compliance
| Document Title | Status | |
|---|---|---|
| RoHS | Under Review | |
| California Prop 65 |
