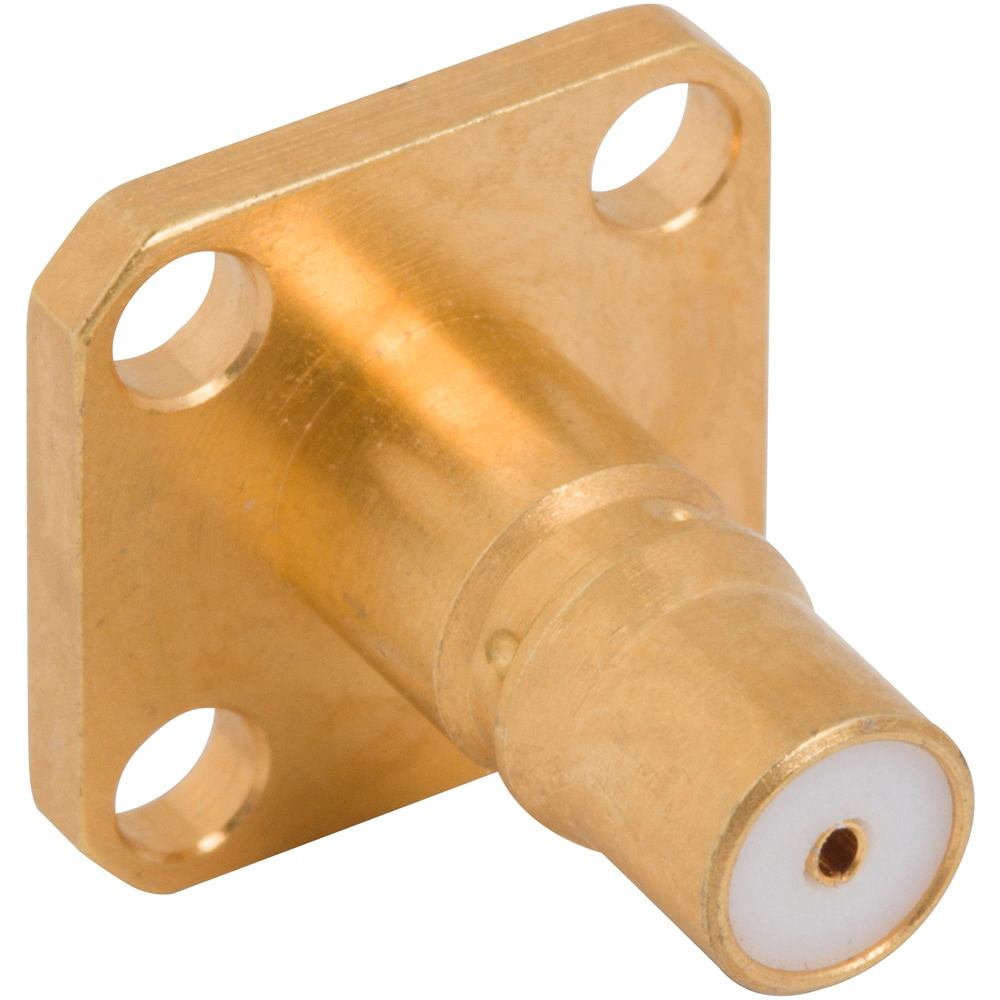

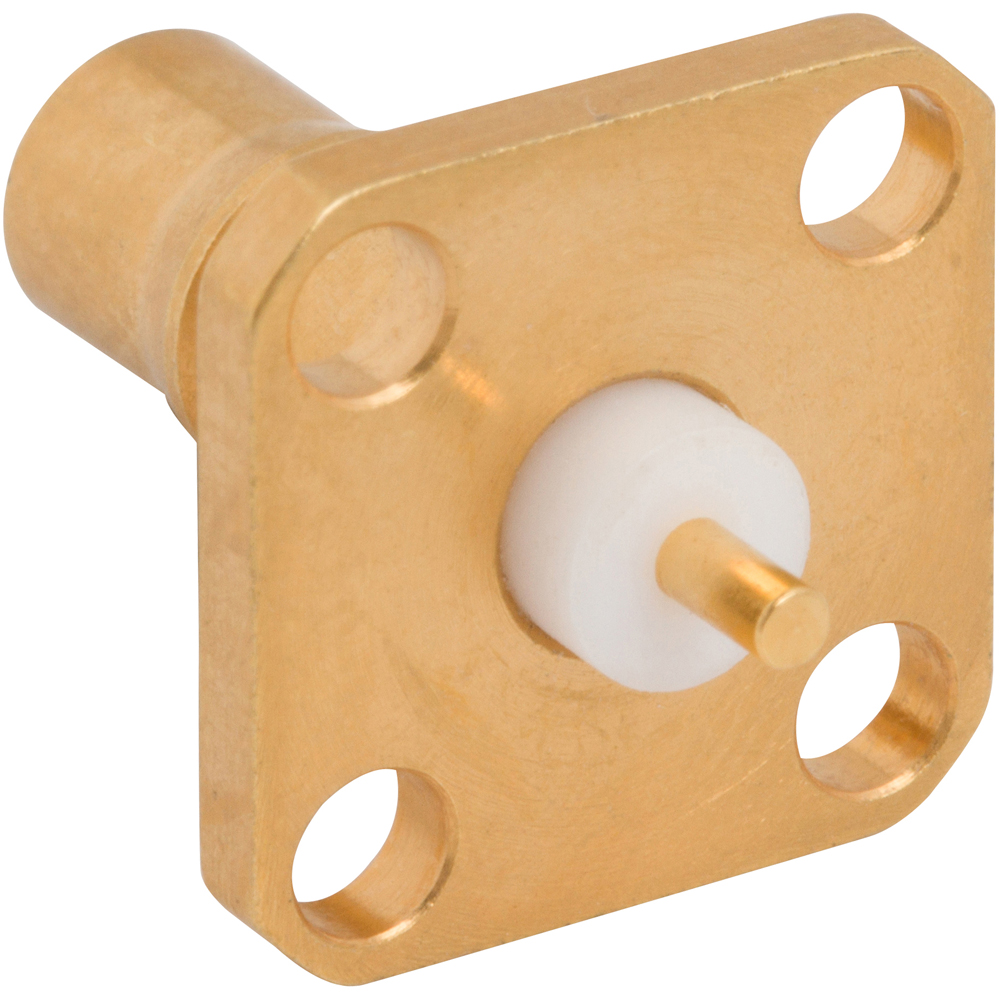

QMA Panel Mount Jack 4-Hole Flange Round Post 50 Ohm
930-132J-51S
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Applications |
Quick Locking
|
|
| Body Finish |
Gold
|
|
| Body Material |
Brass
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Beryllium Copper
|
|
| Contact Termination |
Solder
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Quick Lock
|
|
| ECCN |
EAR99
|
|
| Extended Dielectric Length |
0.059 Inches (1.50 mm)
|
|
| Frequency (Max GHz) |
6
|
|
| Gender |
Jack
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PTFE
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
100
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
4-Hole Flange
|
|
| PFAS |
Contains PFAS
|
|
| Ports |
1 (Single Port)
|
|
| Post Length |
0.110 Inches (2.79 mm)
|
|
| Size Category |
Subminiature
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Termination Style |
Round Post
|
|
| Thread Direction |
Standard
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
| 930-132J-51S PDF Customer Drawing (Size: 107.9 KB) | pdf |
5/28/2021 |
|
930-132J-51S IGS 3D Model
(Size: 355.9 KB)
|
igs |
11/11/2025 |
Product Compliance
| Document Title | Status | |
|---|---|---|
| RoHS | Under Review | |
| California Prop 65 |
