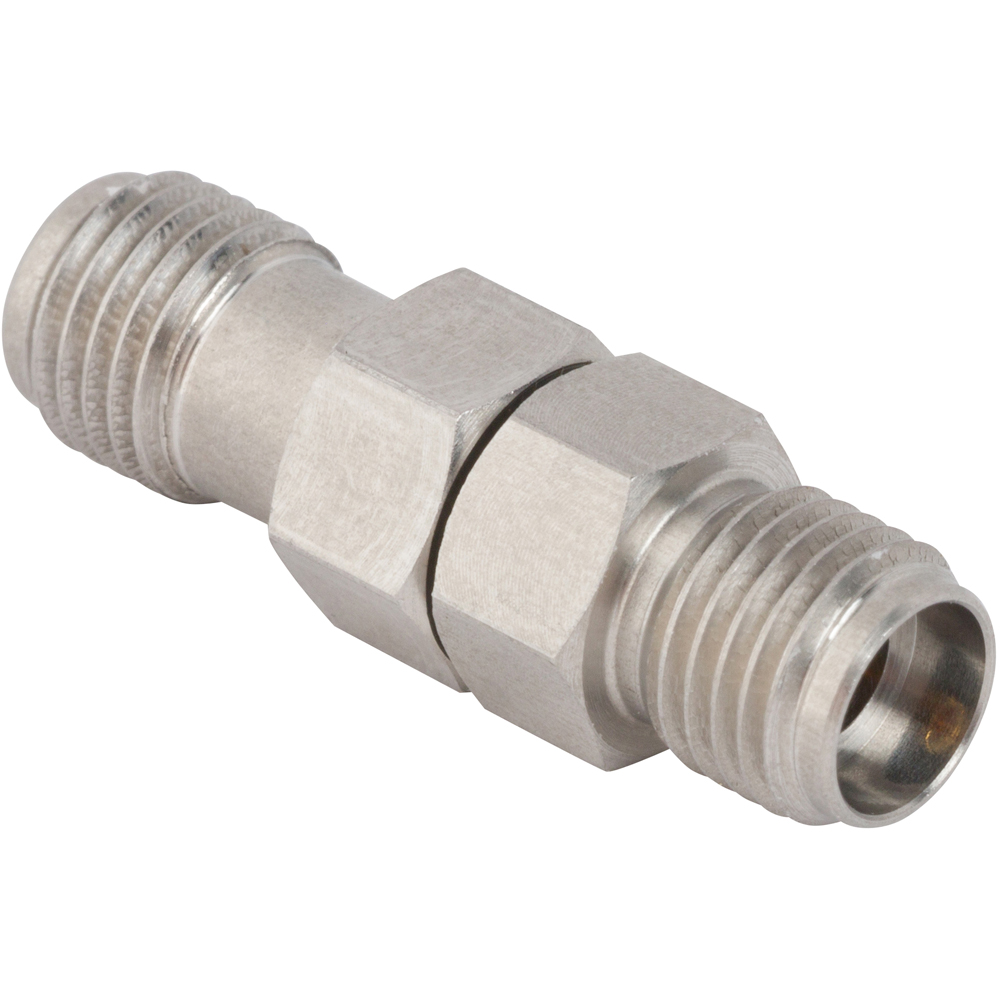

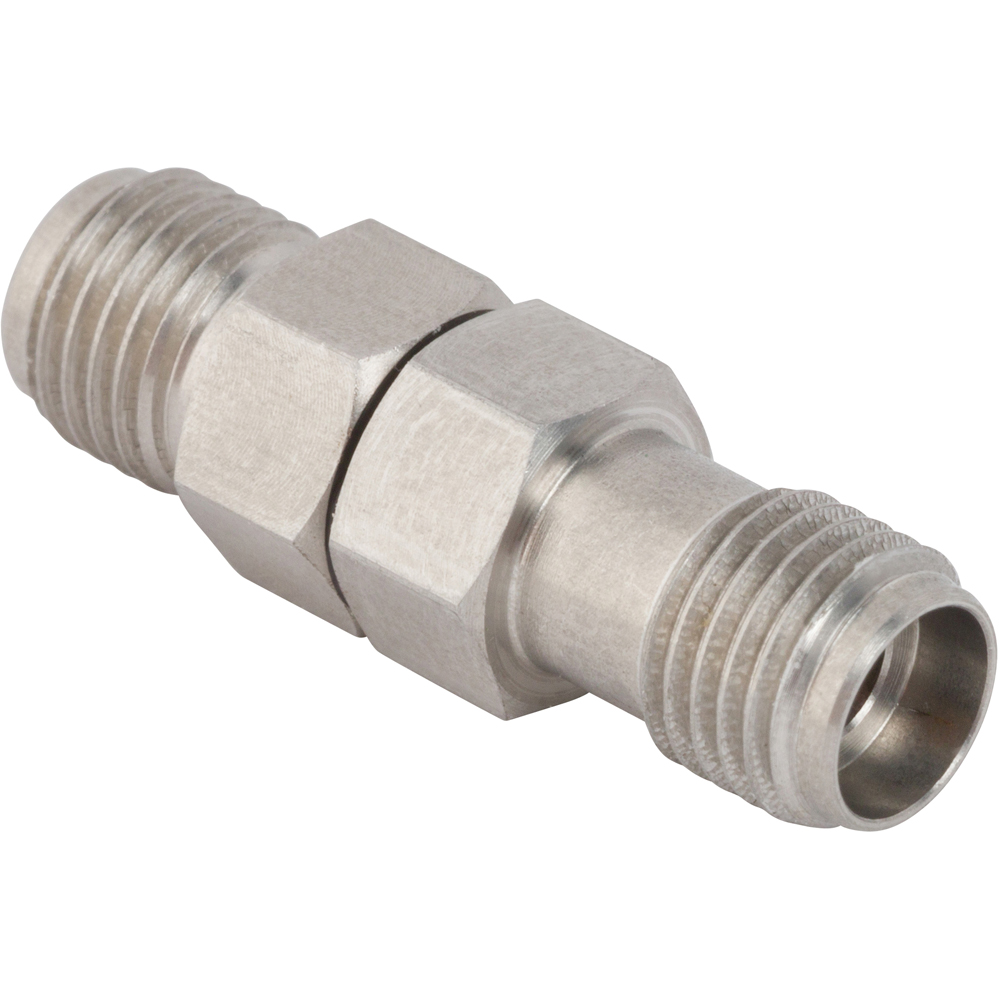

2.92 mm Jack to 2.92 mm Jack Adapter 50 Ohm Straight
AD-292J292J-1
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Adapter Configuration |
2.92 Jack to 2.92 Jack
|
|
| Adapter Type |
In-Series
|
|
| Applications |
High Frequency
|
|
| Body Finish |
Passivated
|
|
| Body Material |
Stainless Steel
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Beryllium Copper
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| Frequency (Max GHz) |
40
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
Ultem 1000
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Not Intentionally Added
|
|
| Temp (Max Degrees Celsius) |
165
|
|
| Temp (Min Degrees Celsius) |
-65
|
|
| Unit Weight (Grams) |
3.900
|
|
All Related Documents
All Related Documents
Locked items require an Amphenol RF account
Log in /Register
| Document Title | Type | Publish Date |
|---|---|---|
| 2.92 mm Adapter Series Datasheet (Size: 259.1 KB) | pdf |
1/16/2026 |
|
AD-292J292J-1 STP 3D Model
(Size: 632.6 KB)
|
stp |
11/11/2025 |
| AD-292J292J-1 PDF Customer Drawing (Size: 238 KB) | pdf |
10/31/2025 |
