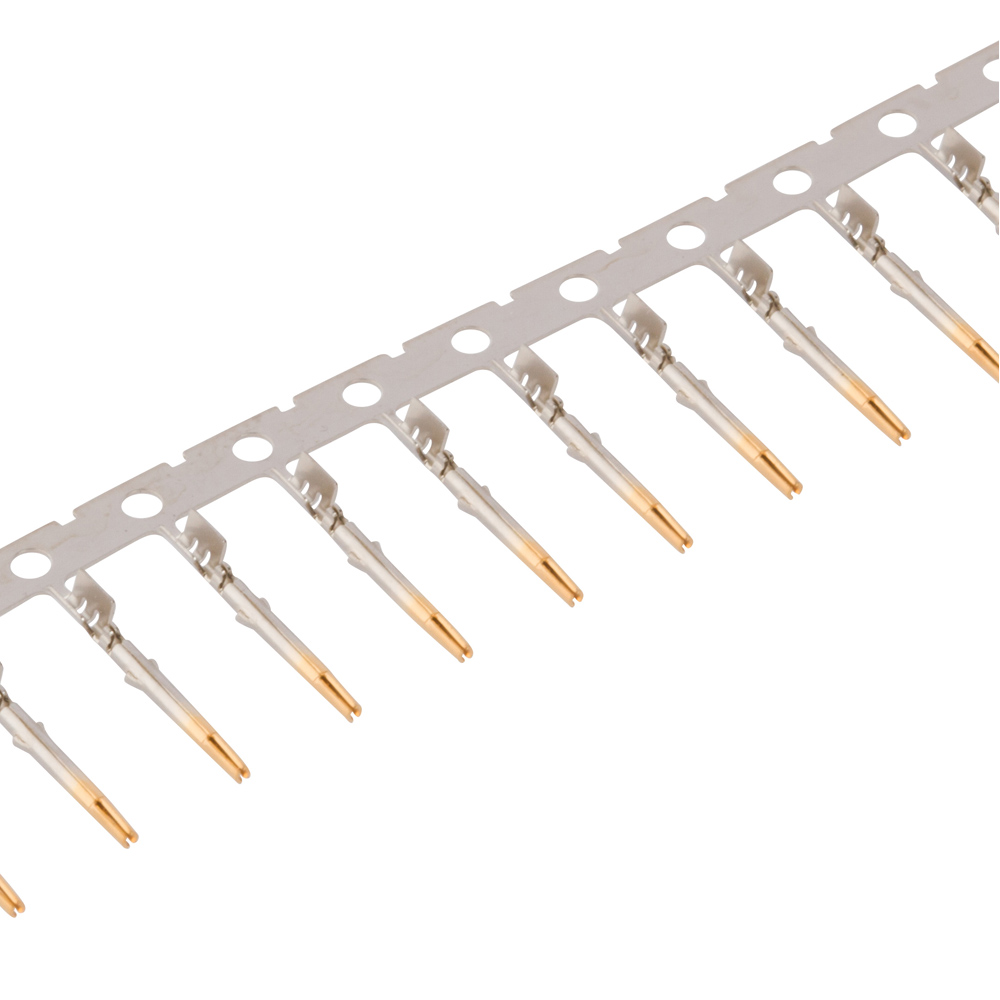

FAKRA Str Female Contact RG-316 Tape and Reel
FKCP03301A
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Gold
|
|
| Body Material |
Phosphor Bronze
|
|
| Cable Group |
B
|
|
| Cable Type (Terminates To) |
RG-174, RG-188, RG-316, Times LMR-100A, Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Times RG-174LL, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Leoni DACAR 462, Leoni DACAR 462-2
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| Gender |
Jack
|
|
| HTS Code |
8538.90.8140
|
|
| Impedance (Ohms) |
Not Applicable
|
|
| Insulator Material |
Not Applicable
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Thread Direction |
Standard
|
|
| Unit Weight (Grams) |
0.047
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| Automotive Solution Guide (Size: 19.6 MB) | pdf |
6/30/2025 |
| FKCP03301A PDF Customer Drawing (Size: 140.4 KB) | pdf |
5/28/2021 |
