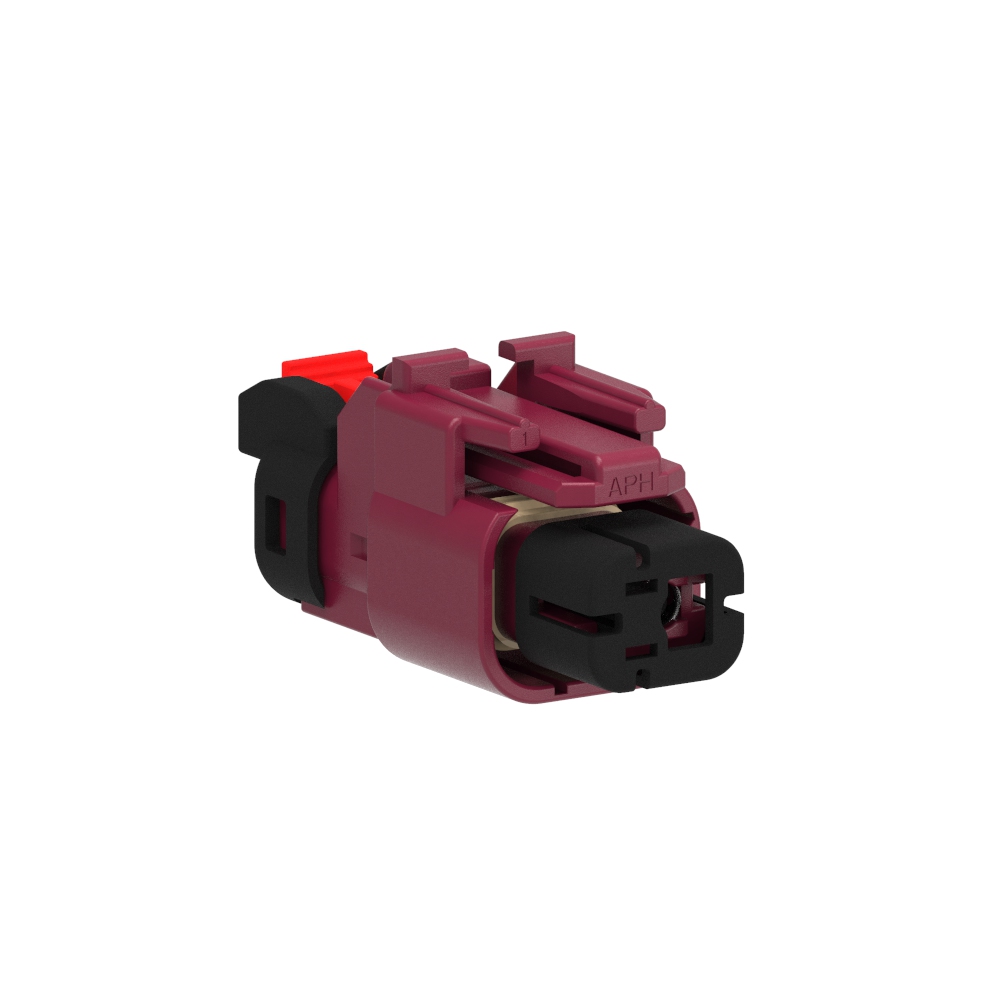

AUTOMATE Type C Mini-FAKRA Single Port Sealed Straight Crimp Jack TFC-302LL Dacar 302 RTK 031 50 Ohm B Code
FM1CNBSJ-C30E0
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Tin
|
|
| Body Material |
Copper Nickel Alloy
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Copper Nickel Alloy
|
|
| Contact Termination |
Crimp
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Push-on
|
|
| ECCN |
EAR99
|
|
| FAKRA Keycode |
B - Cream
|
|
| Frequency (Max GHz) |
9
|
|
| Gender |
Jack
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
PBT
|
|
| IP Rating |
IP69K
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
25
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Straight
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| Ports |
1 (Single Port)
|
|
| Size Category |
Subminiature
|
|
| Temp (Max Degrees Celsius) |
105
|
|
| Temp (Min Degrees Celsius) |
40
|
|
| Termination Style |
Cable - Crimp
|
|
