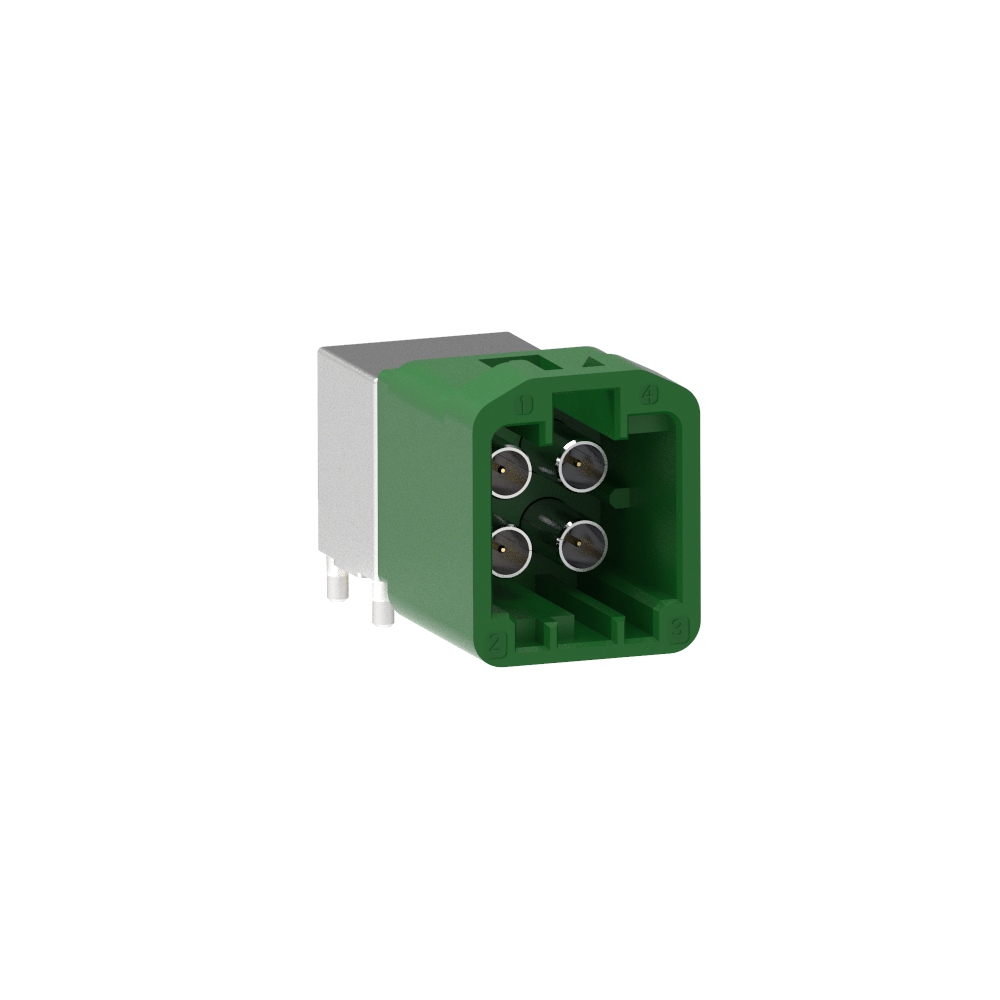

AUTOMATE Type B Mini-FAKRA Quad Port PCB Through Hole Right Angle Plug 50 Ohm E Code
FMB4NERP-PCB-1
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Body Finish |
Matte Tin
|
|
| Body Material |
Zinc Diecast
|
|
| Contact Finish |
Gold
|
|
| Contact Material |
Brass
|
|
| Contact Termination |
Crimp
|
|
| Country of Origin |
CN
|
|
| Coupling Mechanism |
Push-on
|
|
| ECCN |
EAR99
|
|
| FAKRA Keycode |
E - Leaf Green
|
|
| Frequency (Max GHz) |
9
|
|
| Gender |
Plug
|
|
| HTS Code |
8536.69.4010
|
|
| Impedance (Ohms) |
50
|
|
| Insulator Material |
LCP
|
|
| IP Rating |
Not Rated
|
|
| Isolated |
No
|
|
| Low PIM |
No
|
|
| Mating Cycles (Min) |
25
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Orientation |
Right Angle
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Ports |
4 (Quad Port)
|
|
| Size Category |
Subminiature
|
|
| Temp (Max Degrees Celsius) |
105
|
|
| Temp (Min Degrees Celsius) |
-40
|
|
| Termination Style |
PCB - Through Hole
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| AUTOMATE® Mini-FAKRA Type B Connector Series (Size: 305.4 KB) | pdf |
3/25/2025 |
| FMB4NXRP-PCB-1 Customer Drawing (Size: 229.8 KB) | pdf |
4/5/2024 |
