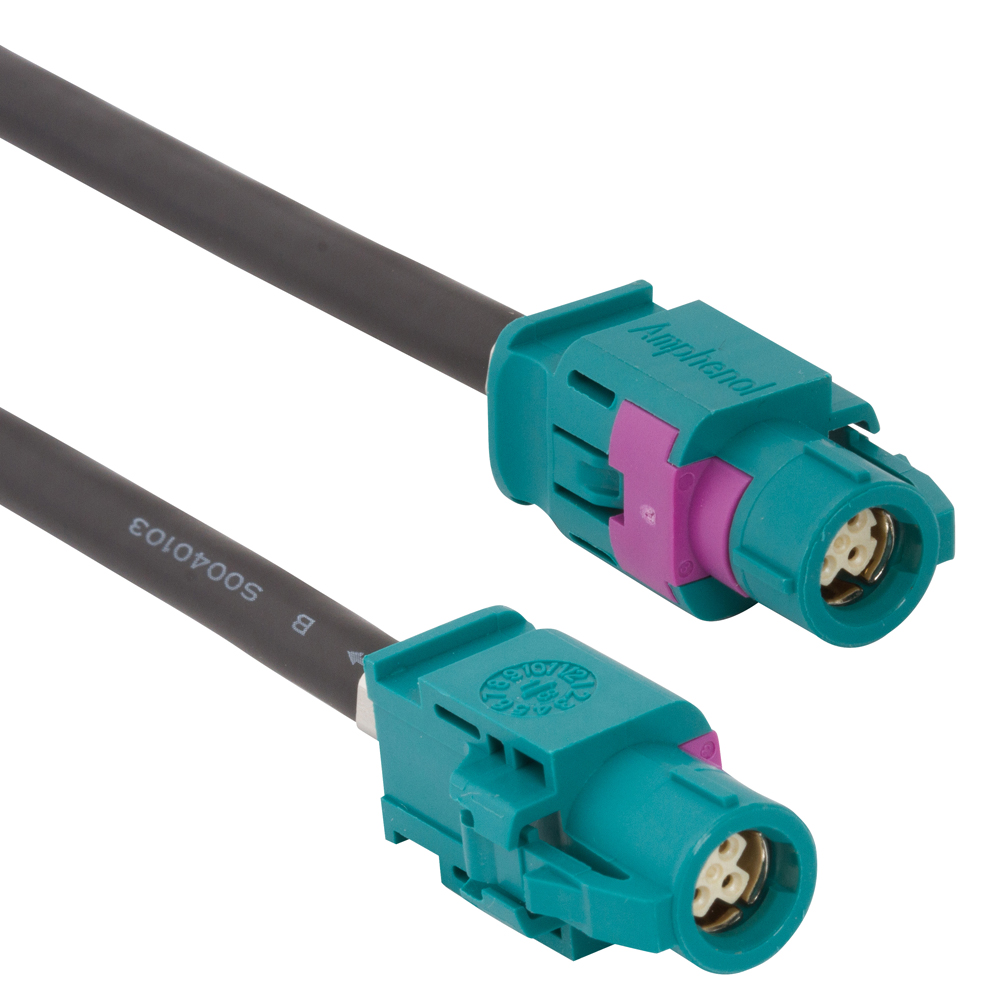

HSD Straight Jack to HSD Straight Jack HSD-S0040103 100 Ohm 1200 inches
HSDSJZSJZ23-19
Part Status:
Active
Product Specifications
See Similar
Product Specifications
| Attributes | Details |
See Similar
Select the attributes below to view similar products
|
|---|---|---|
| Armor Option |
Without Armor
|
|
| Cable Assembly Length |
1200.00 in (30480 mm)
|
|
| Cable Assembly Type |
in-Series
|
|
| Cable Config |
HSD Jack to HSD Jack
|
|
| Cable Config 2 |
HSD Jk Str to HSD Jk Str
|
|
| Cable Type Cable Assemblies |
HSD-S0040103
|
|
| Country of Origin |
CN
|
|
| ECCN |
EAR99
|
|
| HTS Code |
8544.20.0000
|
|
| Impedance (Ohms) |
100
|
|
| IP Rating |
Not Rated
|
|
| Low PIM |
No
|
|
| Mil Qualified |
Not Mil Qualified
|
|
| Non Magnetic |
Contains Magnetic Materials
|
|
| Panel Mounting Feature |
Not Applicable
|
|
| PFAS |
PFAS Status Undetermined
|
|
| Unit Weight (Grams) |
923.760
|
|
All Related Documents
All Related Documents
| Document Title | Type | Publish Date |
|---|---|---|
| HSDSJXSJXXX-19 PDF Customer Drawing (Size: 362.6 KB) | pdf |
5/28/2021 |
Product Compliance
| Document Title | Status | |
|---|---|---|
| RoHS | Compliant with Exemption 6C | |
| California Prop 65 |
Related Resources
HSD Automotive Cable Assemblies
The Amphenol RF HSD (High Speed Data) Cable Assembly datasheet details fixed-length cable assemblies designed for automotive applications, supporting protocols like LVDS, Ethernet, and USB. These assemblies offer quick push-on mating with color-coded, keyed connectors to prevent mismating, and provide excellent electrical performance through 2 GHz. Applications include infotainment modules, cluster displays, LVDS cameras, and USB connections.
