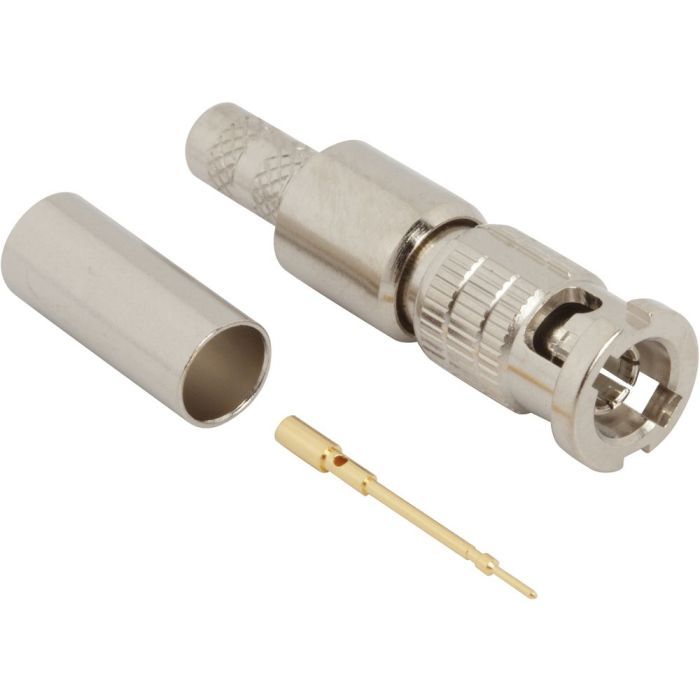

AMPHENOL RF PART NUMBER 034-1026-12G HD-BNC Straight Crimp Plug for Belden 1855A Cable, 12G Optimized, 75 Ohm
FIND STOCK & BUY NOW

More Views

  • RF HD-BNC Straight Crimp Plug for Belden 1855A Cable, 12G Optimized, 75 Ohm
FIND STOCK & BUY NOW Back to Search Result
PRODUCT OVERVIEW
RF Connector, HD-BNC Straight Crimp Plug for Belden 1855A Cable, 12G Optimized, 75 Ohm
Product Type
Connectors
Product Series
HD-BNC
Status
Active
DOWNLOADS
zip 034-1026-12G 3D Model File (Size: 252.8 KB) *
pdf 034-1026-12G Customer Drawing (Size: 319.7 KB)
pdf 12G SDI Broadcast Solutions (Size: 857.4 KB)

* Please Login or Register to download file

PRODUCT SPECIFICATIONS
Brand Amphenol RF
Gender Plug
Orientation Straight
Termination Style Cable - Crimp
Impedance (Ohms) 75
Body Finish Nickel
Body Material Brass
Contact Finish Gold
Contact Material Phosphor Bronze
Contact Termination Style Crimp
Insulator Material PTFE
Cable Group K3
Cable Type Belden 1855A, Belden 1865A, Belden 4855R, RG-122, RG-180, RG-180A, RG-180B, RG-195
Coupling Mechanism Bayonet
Max Frequency (GHz) 18
Polarity Standard
Min. Temp. (Celsius) -65
Max. Temp. (Celsius) 165
Mating Cycles 500
Weight (Grams) 4.04
Package Type BAG
