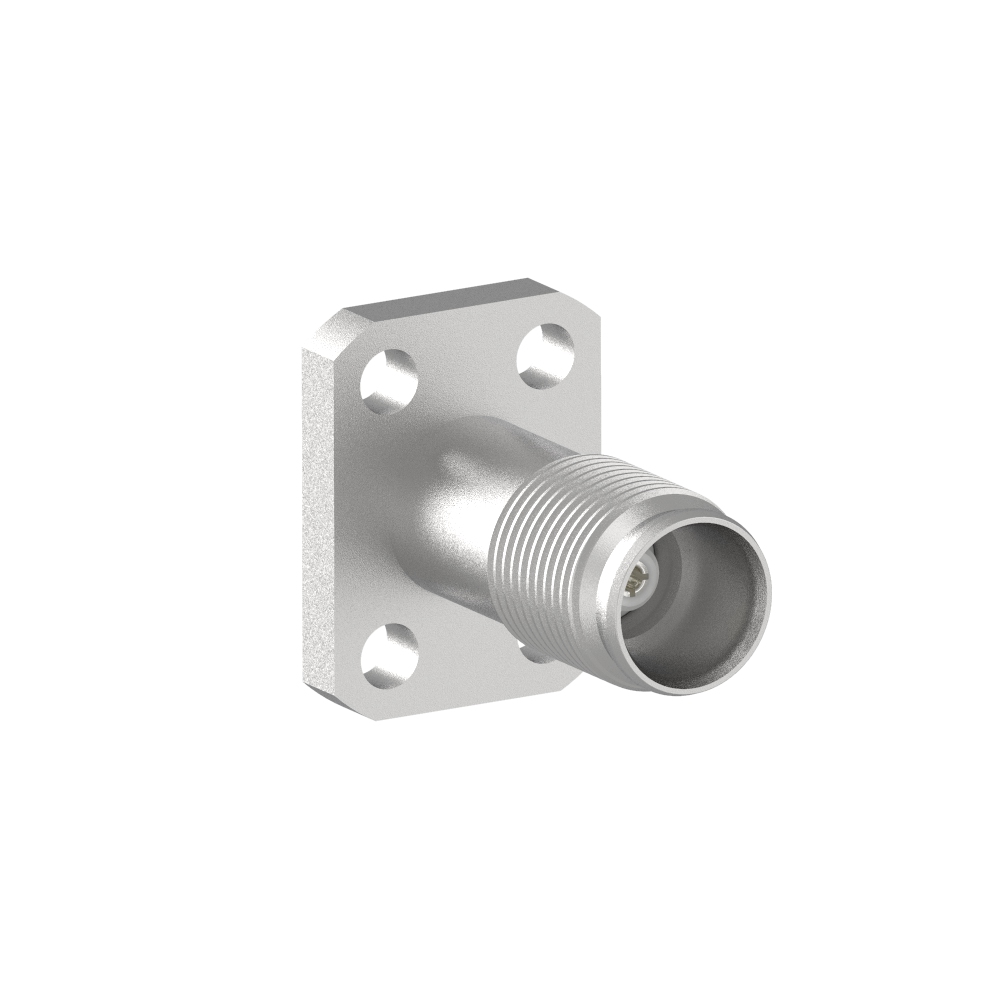

NEX10 Connectors

The NEX10 connector series is a compact interface engineered to meet the growing demands of modern wireless communication networks. This durable interface is 53% smaller than the standard 4.3-10 series offering substantial space savings in outdoor applications where new systems have tighter space constraints.

NEX10 connectors are designed with a unique separation of the electrical contact and mechanical coupling mechanical coupling mechanism, these connectors deliver highly stable RF performance while reducing the risk of signal degradation commonly caused by installation torque. Featuring a small footprint and low passive intermodulation (PIM) performance to support frequencies up to 6 GHz. This interface provides installation flexibility while maintaining reliable, low loss transmission in demanding environments. They are ideal for next-generation wireless systems such as distributed antenna systems (DAS), small cells, base stations and other cellular infrastructure.

Features and Benefits

• Robust design for indoor and outdoor deployment
• Optimized for compact RF assemblies and dense equipment layouts
• Meets 5G/LTE standards

Key Technical Details

• Low PIM performance for enhanced network quality
• Reliable RF performance up to 6 GHz
• Excellent return loss and signal integrity

Applications

• 5G Wireless Networks - radios, antennas and network equipment
• Small Cell Infrastructure - utility poles, street furniture and building facades
• MIMO Systems - advanced beamforming and spectrum utilization
• Indoor Wireless Coverage Solutions - equipment racks, communication closets, ceiling installations

Whether you're designing a compact small cell, expanding DAS coverage or developing advanced wireless infrastructure, Amphenol RF's NEX10 products provide the performance, reliability and density required to support today's connected world.
